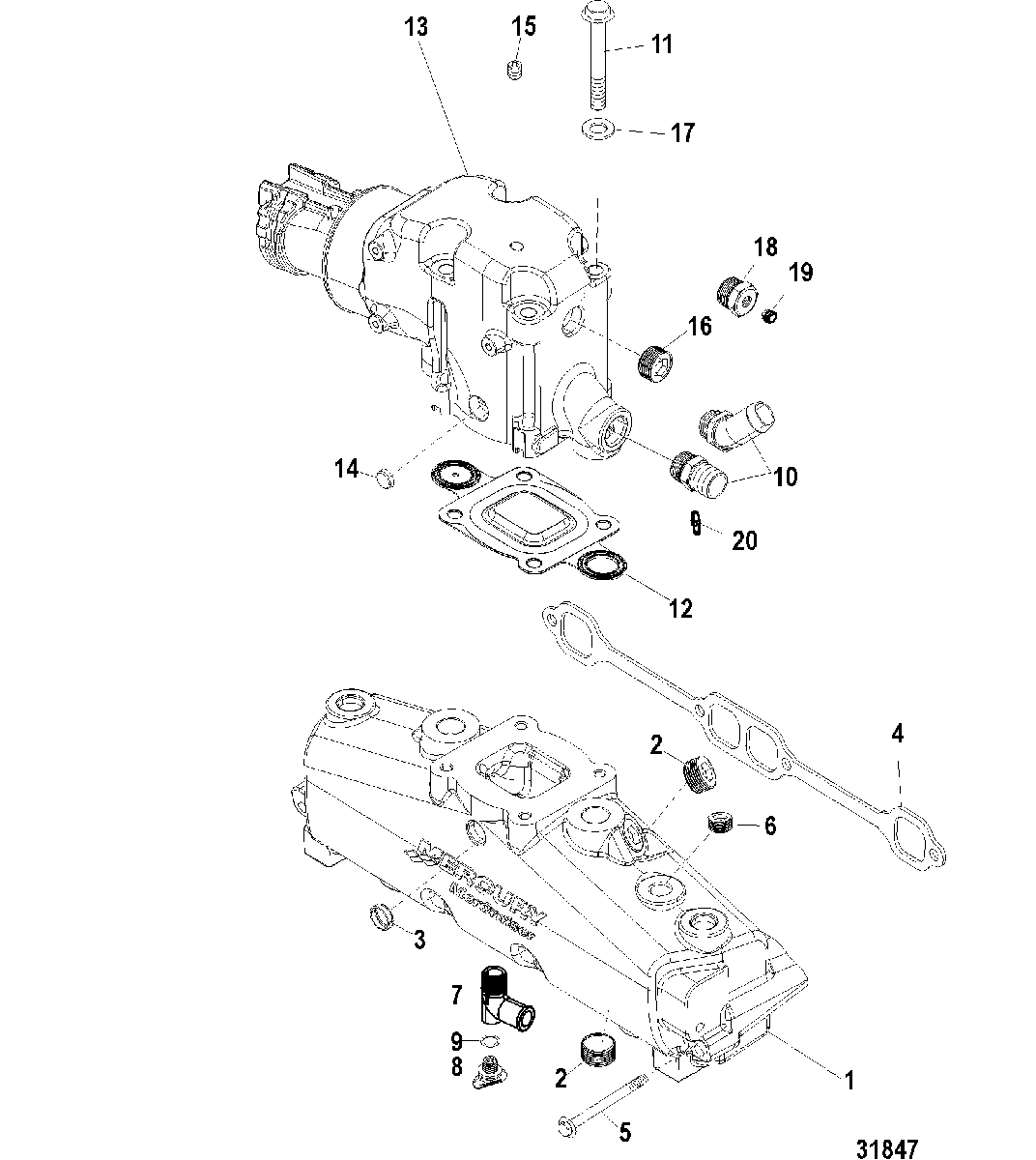

Exhaust Manifold, Elbow And Pipes (Manual Drain) для Mercruiser - 383 STROKER SCORPION 1G300000 & Up

  • №
    Артикул
    Название
  • 1
    865735A02 MANIFOLD ASSEMBLY, Exhaust, Exhaust
    MANIFOLD ASSEMBLY, Exhaust, Exhaust
  • 2
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 3
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 4
    27-33395 GASKET
    GASKET
  • 5
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 6
    22-12524 PLUG, (.375-18 x .475) Brass
    PLUG, (.375-18 x .475) Brass
  • 7
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 8
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 9
    25-62706 O-RING, (.426 x .070)
    O-RING, (.426 x .070)
  • 10
    22-864623A1 FITTING ASSEMBLY, With Tapped Fitting
    (Port)
    FITTING ASSEMBLY, With Tapped Fitting
    (Port)
  • 10
    22-866725 FITTING, Straight (.750-14), Without Tapped Fitting
    (Starboard)
    FITTING, Straight (.750-14), Without Tapped Fitting
    (Starboard)
  • 10
    22-865159 FITTING, 45 Degree (45 Degree)
    FITTING, 45 Degree (45 Degree)
  • 11
    10-864665 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 11
    10-865982057 SCREW, (.375-16 x 7.50)
    SCREW, (.375-16 x 7.50)
  • 11
    10-8M2005021 SCREW, (.375 x 16 x 9)
    SCREW, (.375 x 16 x 9)
  • 12
    27-864850A02 GASKET, Elbow, Restrictor
    GASKET, Elbow, Restrictor
  • 13
    864309T02 ELBOW ASSEMBLY, Exhaust
    (Inline)
    ELBOW ASSEMBLY, Exhaust
    (Inline)
  • 13
    864591T02 ELBOW ASSEMBLY, Exhaust
    (V-Drive)
    ELBOW ASSEMBLY, Exhaust
    (V-Drive)
  • 14
    19-864689 PLUG, Expansion, Expansion
    PLUG, Expansion, Expansion
  • 15
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 16
    22-428611 FITTING, Pipe - Brass (.750-14)
    FITTING, Pipe - Brass (.750-14)
  • 17
    12-34714 WASHER
    (V-Drive)
    WASHER
    (V-Drive)
  • 18
    22-15946 BUSHING
    BUSHING
  • 19
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 20
    22-16604 FITTING, Straight (.125-27), Barb
    FITTING, Straight (.125-27), Barb
  • -
    879147R55 LONGBLOCK ASSEMBLY
    LONGBLOCK ASSEMBLY
  • -
    27-807670A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
