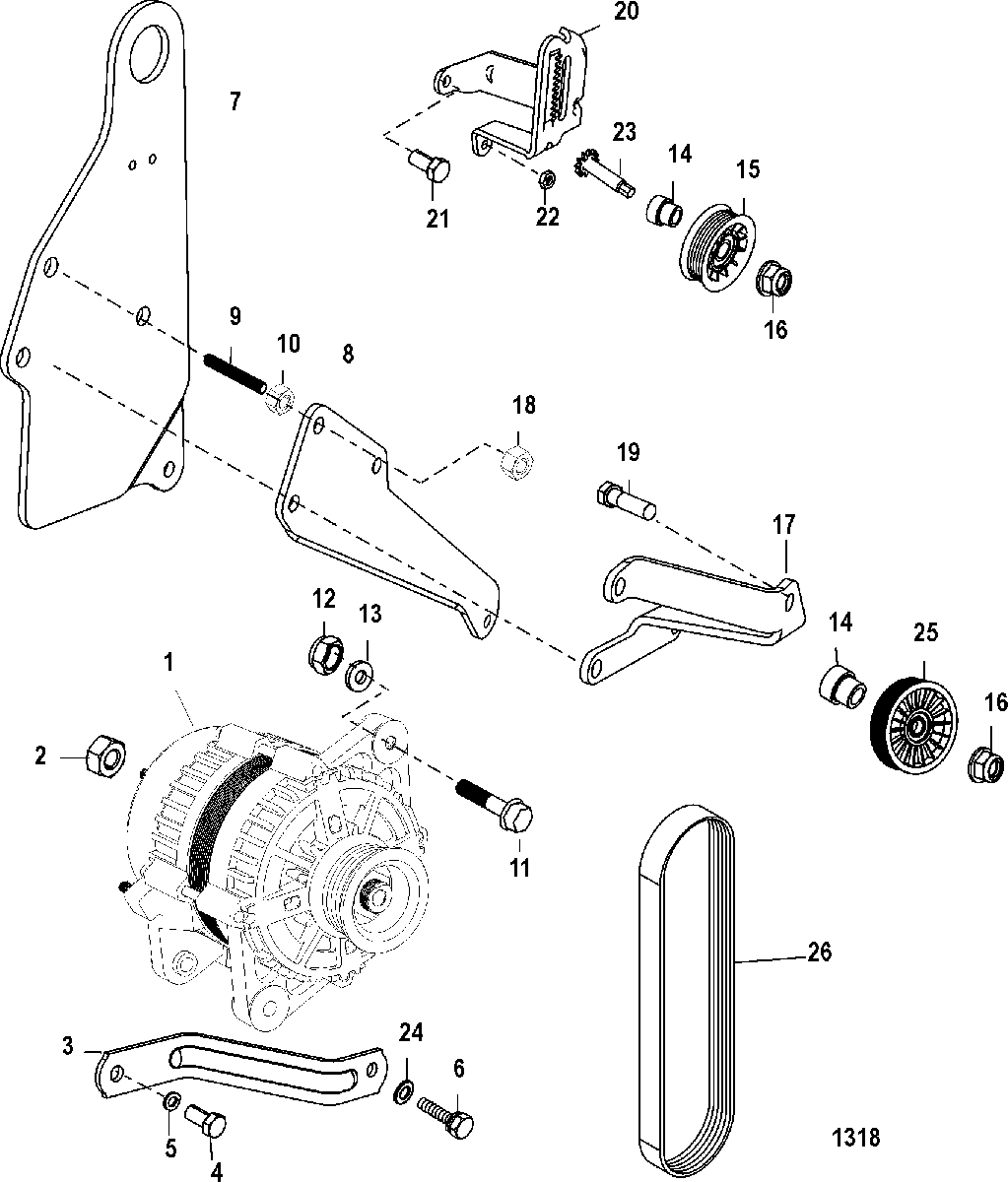

Alternator And Brackets для Mercruiser - 383 STROKER SCORPION 1G300000 & Up

№

Артикул

Название
1

863077T ALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley)
(Service Complete Assembly)

ALTERNATOR ASSEMBLY, Black (65 Amp) (50mm Pulley)
(Service Complete Assembly)

53 780 ₽
2

11-400212 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

170 ₽
3

807750T BRACE

BRACE

3 510 ₽
4

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)

100 ₽
5

13-35048 LOCKWASHER, (.375)

LOCKWASHER, (.375)

120 ₽
6

10-40001134 SCREW, (M8 x 25)

SCREW, (M8 x 25)

100 ₽
7

862051T BRACKET, Alternator and Lifting Eye

BRACKET, Alternator and Lifting Eye

6 640 ₽
8

862058T BRACE, Alternator

BRACE, Alternator

3 020 ₽
9

16-862615 STUD, (.375-16 x 2.25)

STUD, (.375-16 x 2.25)

180 ₽
10

11-32219 NUT, (.375-16)

NUT, (.375-16)

180 ₽
11

10-828213 SCREW, (.312-18 x 1.500) Hex Flange

SCREW, (.312-18 x 1.500) Hex Flange

140 ₽
12

11-26484 NUT, (.312-18)

NUT, (.312-18)

270 ₽
13

12-57792 WASHER

WASHER

130 ₽
14

865193 BUSHING

BUSHING

460 ₽
15

807757T PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)

PULLEY ASSEMBLY, Idler - Black (3.00 Inch Diameter)

5 890 ₽
16

11-859135 NUT, (.437-20) Brass/Nickel Plated

NUT, (.437-20) Brass/Nickel Plated

430 ₽
17

807753T1 BRACKET, Idler

BRACKET, Idler

5 290 ₽
18

11-32219 NUT, (.375-16)

NUT, (.375-16)

180 ₽
19

10-816601 SCREW, (.437-20 x 1.500)

SCREW, (.437-20 x 1.500)

440 ₽
20

807767T BRACKET, Idler Adjustment

BRACKET, Idler Adjustment

6 790 ₽
21

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)

100 ₽
22

11-29250 NUT, (.312-24)

NUT, (.312-24)

180 ₽
23

43-8M0113182 PINION STUD, (.437-20) Stainless Steel

PINION STUD, (.437-20) Stainless Steel

2 010 ₽
24

12-20084 WASHER, (.328 x .562 x .062)

WASHER, (.328 x .562 x .062)

270 ₽
25

864625T PULLEY (4.25 Inch Diameter)

PULLEY (4.25 Inch Diameter)

5 160 ₽
26

57-865615Q05 BELT, Serpentine

BELT, Serpentine

11 670 ₽
