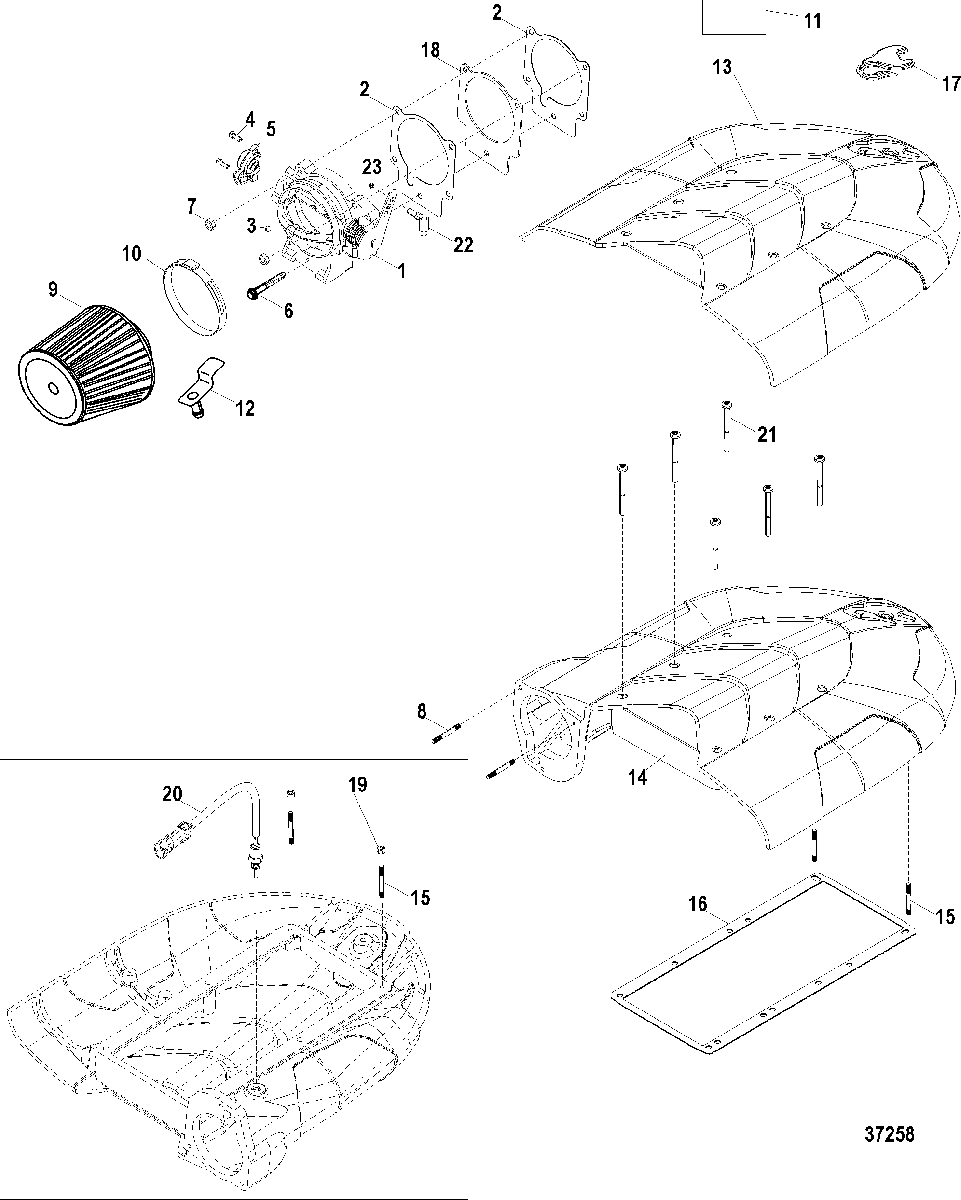

Throttle Body And Air Plenum для Mercruiser - 383 STROKER SCORPION BRAVO All & Up

  • №
    Артикул
    Название
  • 1
    861484A02 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 2
    27-861449 GASKET, Throttle Body
    GASKET, Throttle Body
  • 3
    862999002 PLUG, Intake Air Control Port
    PLUG, Intake Air Control Port
  • 4
    10-803150 SCREW
    SCREW
  • 5
    803148 SENSOR
    SENSOR
  • 6
    10-861581 SCREW, (.250-20 x 2.250)
    SCREW, (.250-20 x 2.250)
  • 7
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    16-728091 STUD, (.250-20/.250-28 x 1.620)
    STUD, (.250-20/.250-28 x 1.620)
  • 9
    879194T45 ARRESTOR, Flame
    ARRESTOR, Flame
  • 10
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 11
    37-879147A56 DECAL SET, 383 Stroker Scorpion
    DECAL SET, 383 Stroker Scorpion
  • 12
    879194346 ADAPTOR
    ADAPTOR
  • 13
    879147T94 COVER, Engine
    COVER, Engine
  • 14
    861334A08 PLENUM ASSEMBLY, Black, Air Intake
    PLENUM ASSEMBLY, Black, Air Intake
  • 15
    16-728091 STUD, (.250-20/.250-28 x 1.620)
    STUD, (.250-20/.250-28 x 1.620)
  • 16
    27-807670 GASKET, Air Plenum
    GASKET, Air Plenum
  • 17
    862960 EMBLEM, Scorpion (Chrome)
    EMBLEM, Scorpion (Chrome)
  • 18
    861450 ADAPTOR PLATE, Throttle Body
    ADAPTOR PLATE, Throttle Body
  • 19
    11-807082 NUT, (.250-28)
    NUT, (.250-28)
  • 20
    885342002 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 21
    10-806953 SCREW, (.250-20 x 2.750)
    SCREW, (.250-20 x 2.750)
  • 22
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 23
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • -
    27-807670A02 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
