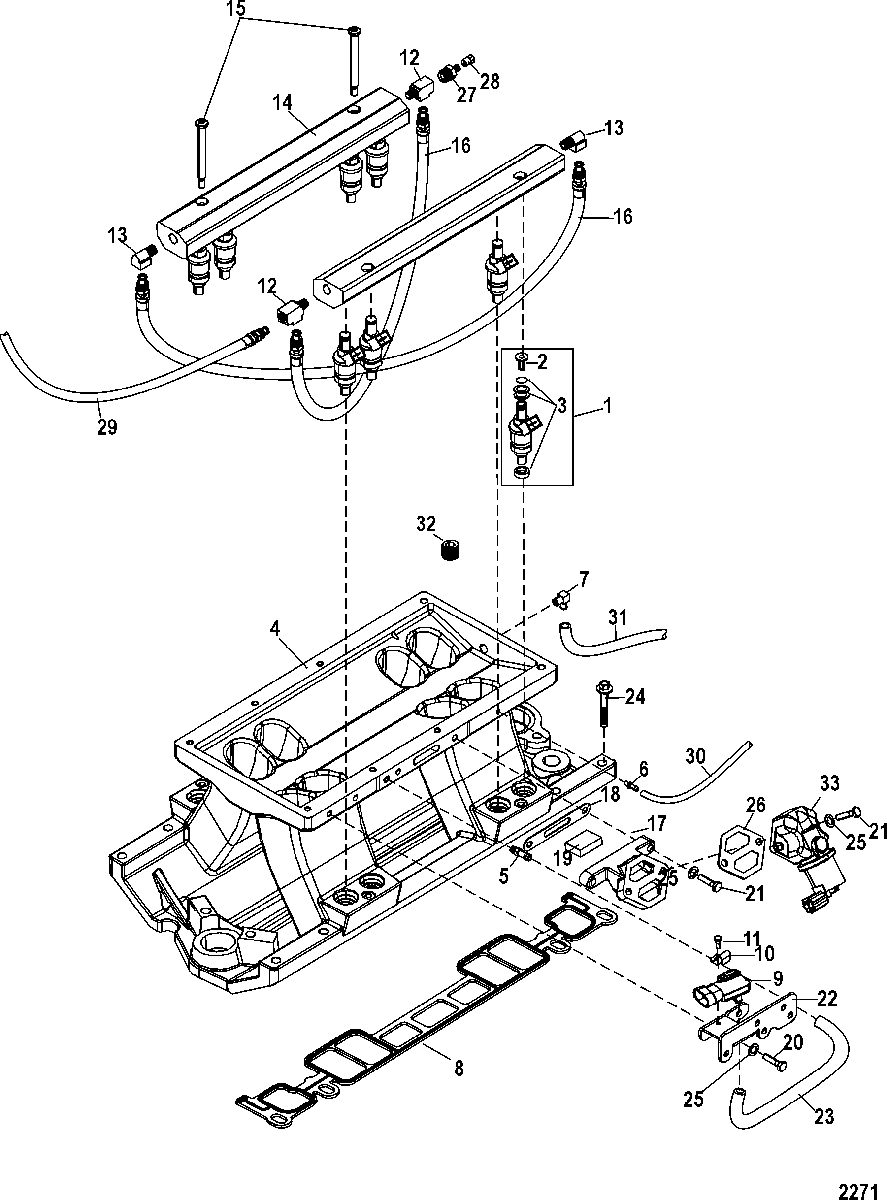

Intake Manifold And Fuel Rail для Mercruiser - 383 STROKER SCORPION BRAVO All & Up
-
№АртикулНазвание
-
1805225A1 INJECTOR ASSEMBLY, FuelINJECTOR ASSEMBLY, Fuel
-
235-17422 FILTER, InjectorFILTER, Injector
-
325-805511A1 SEALING KIT, Fuel InjectorSEALING KIT, Fuel Injector
-
4807352A12 MANIFOLD ASSEMBLY, IntakeMANIFOLD ASSEMBLY, Intake
-
522-805691 FITTING, (.250) BarbFITTING, (.250) Barb
-
622-805598 FITTING, (.1875) BarbFITTING, (.1875) Barb
-
722-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
827-807473A02 GASKET SET, Intake ManifoldGASKET SET, Intake Manifold
-
9861425 SENSOR, Manifold Air PressureSENSOR, Manifold Air Pressure
-
10861198 CLIPCLIP
-
1110-806826 SCREW, (#8-32 x .250)SCREW, (#8-32 x .250)
-
12860265 FITTING, TeeFITTING, Tee
-
1322-93385 FITTING, (90 Degree)FITTING, (90 Degree)
-
14861085T FUEL RAILFUEL RAIL
-
1510-806943 SHOULDER SCREW, (.250-20 x 2.625)SHOULDER SCREW, (.250-20 x 2.625)
-
1632-8M0122040 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
17865167T ADAPTOR, Intake Air ControlADAPTOR, Intake Air Control
-
1827-865228 GASKET, Intake Air Control AdaptorGASKET, Intake Air Control Adaptor
-
1935-865266 FILTER, Intake Air Control AdaptorFILTER, Intake Air Control Adaptor
-
2010-65746 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2110-28667 SCREW, (.250-20 x 1.00) Stainless SteelSCREW, (.250-20 x 1.00) Stainless Steel
-
22865220T BRACKETBRACKET
-
2332-8M0040618 HOSE, (54.00 Inches Bulk) (Cut to Appropriate Length)HOSE, (54.00 Inches Bulk) (Cut to Appropriate Length)
-
2410-881892 SCREW, (.312-18 x 1.750)SCREW, (.312-18 x 1.750)
-
2513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2627-866326 GASKET, Flame Arrestor, Intake Air ControlGASKET, Flame Arrestor, Intake Air Control
-
2722-860266 VALVE, Fuel Pressure ServiceVALVE, Fuel Pressure Service
-
2819-8M0046566 CAP, Shrader Valve - Brass, Fuel Pressure Service ValveCAP, Shrader Valve - Brass, Fuel Pressure Service Valve
-
2932-862617A02 LINE ASSEMBLY, FuelLINE ASSEMBLY, Fuel
-
3032-8M0063567 HOSE, (58.00 Inches Bulk)HOSE, (58.00 Inches Bulk)
-
3132-8M0062321 HOSE, (33.00 Inches Bulk)HOSE, (33.00 Inches Bulk)
-
3222-860075 PLUG, Pipe (.500-14)PLUG, Pipe (.500-14)
-
33862998 VALVE, Idle AirVALVE, Idle Air
-
-27-807670A02 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
Все узлы модели:
- Alternator and Brackets
- Cylinder Block, Camshaft and Crankshaft
- Cylinder Head And Rocker Cover
- Distributor And Ignition Components
- Electrical Components
- Engine Mounts
- Flywheel Housing
- Front Cover And Circulating Pump
- Fuel Filter And Boost Pump
- Fuel Pump And Fuel Cooler
- Gasket Set Components (27-807670A02), Overhaul
- Gear Lube Monitor
- Header Assemblies
- • Intake Manifold And Fuel Rail
- Mercathode Components
- Oil Pan And Oil Pump
- Pistons And Connecting Rods
- Power Steering Components
- Remote Oil Filter
- Sea Water Pump Assembly
- Service and Support Material
- Shift Bracket
- Standard Cooling System
- Starter Motor
- Thermostat and Housing
- Throttle Body And Air Plenum
