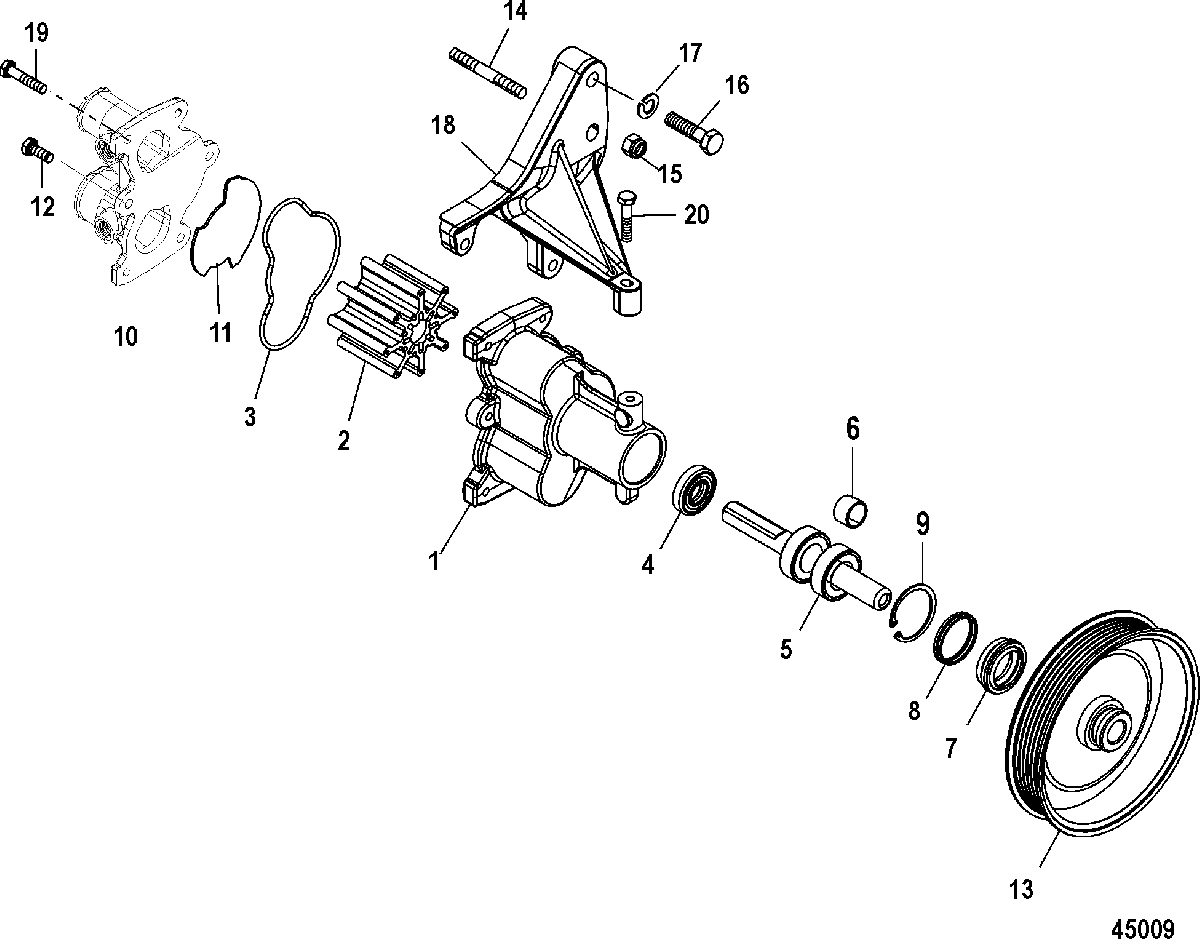

Sea Water Pump Assembly для Mercruiser - 383 STROKER SCORPION BRAVO All & Up

№

Артикул

Название
-

46-8M0137216 PUMP KIT, Sea Water

PUMP KIT, Sea Water

63 910 ₽
1

8M0118062 HOUSING ASSEMBLY, Impeller

HOUSING ASSEMBLY, Impeller

44 490 ₽
2

47-8M0104229 IMPELLER

IMPELLER

5 060 ₽
3

8M2021987 O-RING, Formed (Also included with Reference 8 and 9)

O-RING, Formed (Also included with Reference 8 and 9)

130 ₽
-

8M0050018 DRIVESHAFT ASSEMBLY KIT

DRIVESHAFT ASSEMBLY KIT

9 070 ₽
4

26-8M2001645 SEAL

SEAL

630 ₽
5

8M0050018 DRIVESHAFT ASSEMBLY

DRIVESHAFT ASSEMBLY

9 070 ₽
6

NSS NOT SOLD SEPARATE, SPACER
SN# 1A623371 & Up

NOT SOLD SEPARATE, SPACER
SN# 1A623371 & Up

0 ₽
7

26-862040 SEAL, Lip

SEAL, Lip

660 ₽
8

862039 TOLERANCE RING
SN# 1A623370 & Below

TOLERANCE RING
SN# 1A623370 & Below

2 360 ₽
9

NSS NOT SOLD SEPARATE, SNAP RING
SN# 1A623371 & Up

NOT SOLD SEPARATE, SNAP RING
SN# 1A623371 & Up

0 ₽
10

862776A01 COVER KIT, Impeller Housing
(Without Air Fittings)

COVER KIT, Impeller Housing
(Without Air Fittings)

11 620 ₽
11

8M2014176 PLATE, Wear
(Without Air Fittings)

PLATE, Wear
(Without Air Fittings)

910 ₽
12

10-4000328 SCREW, (M6 x 16)

SCREW, (M6 x 16)

270 ₽
13

862351T PULLEY

PULLEY

8 890 ₽
14

16-863853 STUD

STUD

260 ₽
15

11-82671112 NUT, (.375-16)

NUT, (.375-16)

230 ₽
16

10-32132 SCREW, (.375-16 x 1.750)

SCREW, (.375-16 x 1.750)

200 ₽
17

13-35048 LOCKWASHER, (.375)

LOCKWASHER, (.375)

120 ₽
18

865143T01 BRACKET, Sea Water Pump

BRACKET, Sea Water Pump

7 850 ₽
19

10-4000331 SCREW, (M6 x 30)

SCREW, (M6 x 30)

230 ₽
20

10-4000331 SCREW, (M6 x 30)

SCREW, (M6 x 30)

230 ₽
