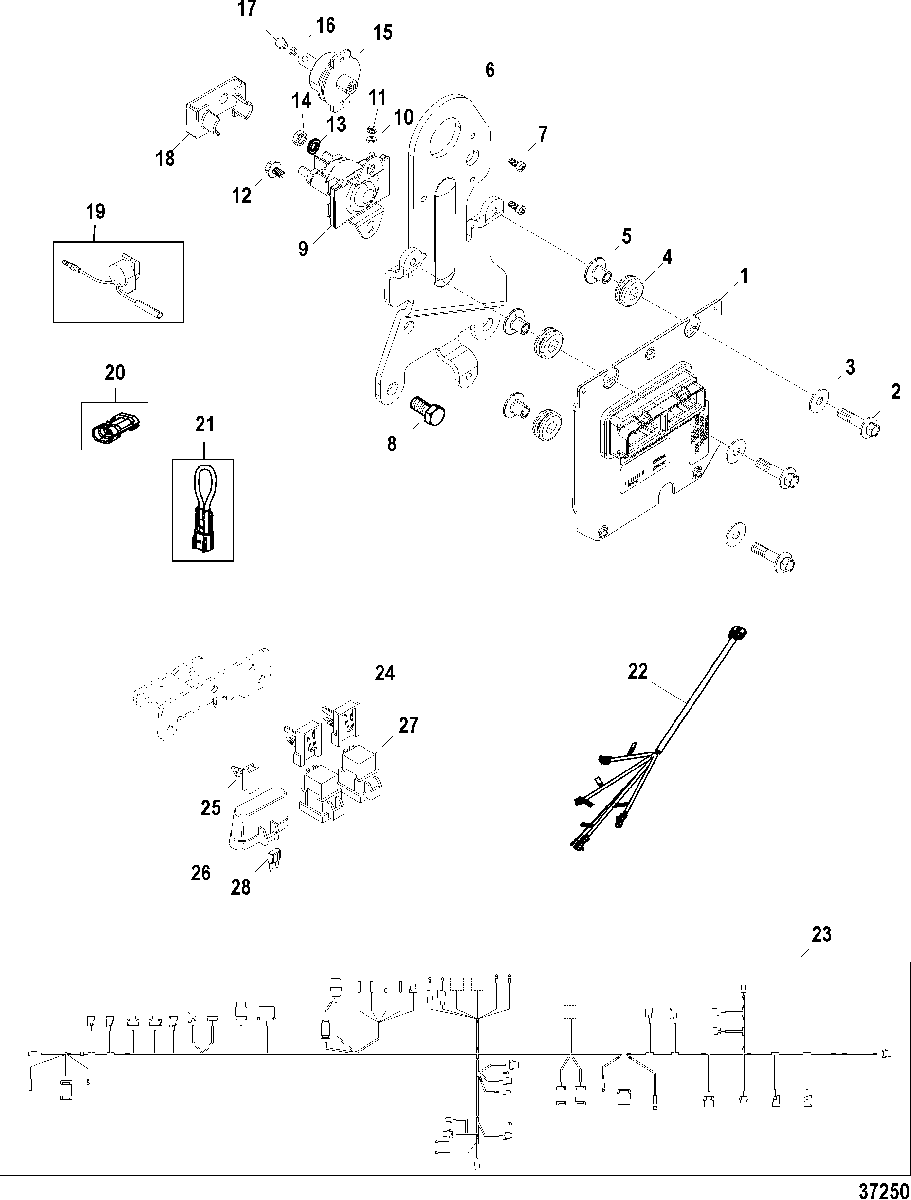

Electrical Components для Mercruiser - 383 STROKER SCORPION BRAVO All & Up

№

Артикул

Название
1

892204T02 ECM, Engine Control Module

ECM, Engine Control Module
2

10-82130025 SCREW, (M6 x 25)

SCREW, (M6 x 25)
3

12-65567 WASHER, (.265 x .750 x .048) Stainless Steel

WASHER, (.265 x .750 x .048) Stainless Steel
4

25-834985 GROMMET

GROMMET
5

23-856954 BUSHING

BUSHING
6

865218T BRACKET , ECM Mounting

BRACKET , ECM Mounting
7

10-57583T SCREW, (#8-32 x .375)

SCREW, (#8-32 x .375)
8

10-98261 SCREW, (.375-16 x .750)

SCREW, (.375-16 x .750)
9

89-96158T SOLENOID, Starter

SOLENOID, Starter
10

13-26992 LOCKWASHER, (.250) Stainless Steel

LOCKWASHER, (.250) Stainless Steel
11

11-26419 NUT, (#8-32) Brass

NUT, (#8-32) Brass
12

10-41508 SCREW, (.250-20 x .500) Stainless Steel

SCREW, (.250-20 x .500) Stainless Steel
13

13-26995 LOCKWASHER, (#8) Stainless Steel

LOCKWASHER, (#8) Stainless Steel
14

11-26419 NUT, (#8-32) Brass

NUT, (#8-32) Brass
15

88-11178A01 BREAKER, Circuit - 50 Ampere

BREAKER, Circuit - 50 Ampere
16

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel
17

10-68513 SCREW, (#10-32 x .375) Stainless Steel

SCREW, (#10-32 x .375) Stainless Steel
18

85-97861 INSULATOR, Starter Solenoid

INSULATOR, Starter Solenoid
19

816492A6 ALARM KIT

ALARM KIT
20

830796A03 CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Male

CONNECTOR ASSEMBLY, Weather Cap - 2 Pin Male
21

864337A1 CONNECTOR, Black

CONNECTOR, Black
22

84-865677T02 HARNESS ASSEMBLY

HARNESS ASSEMBLY
23

84-865454T07 HARNESS ASSEMBLY, Engine and ECM

HARNESS ASSEMBLY, Engine and ECM
24

86-865205 CLIP, Relay Mounting

CLIP, Relay Mounting
25

54-892448 CLIP

CLIP
26

831960 COVER, Fuse

COVER, Fuse
27

86-865202T RELAY

RELAY
28

88-832969T20 FUSE, Mini - Yellow - 20 Ampere

FUSE, Mini - Yellow - 20 Ampere
