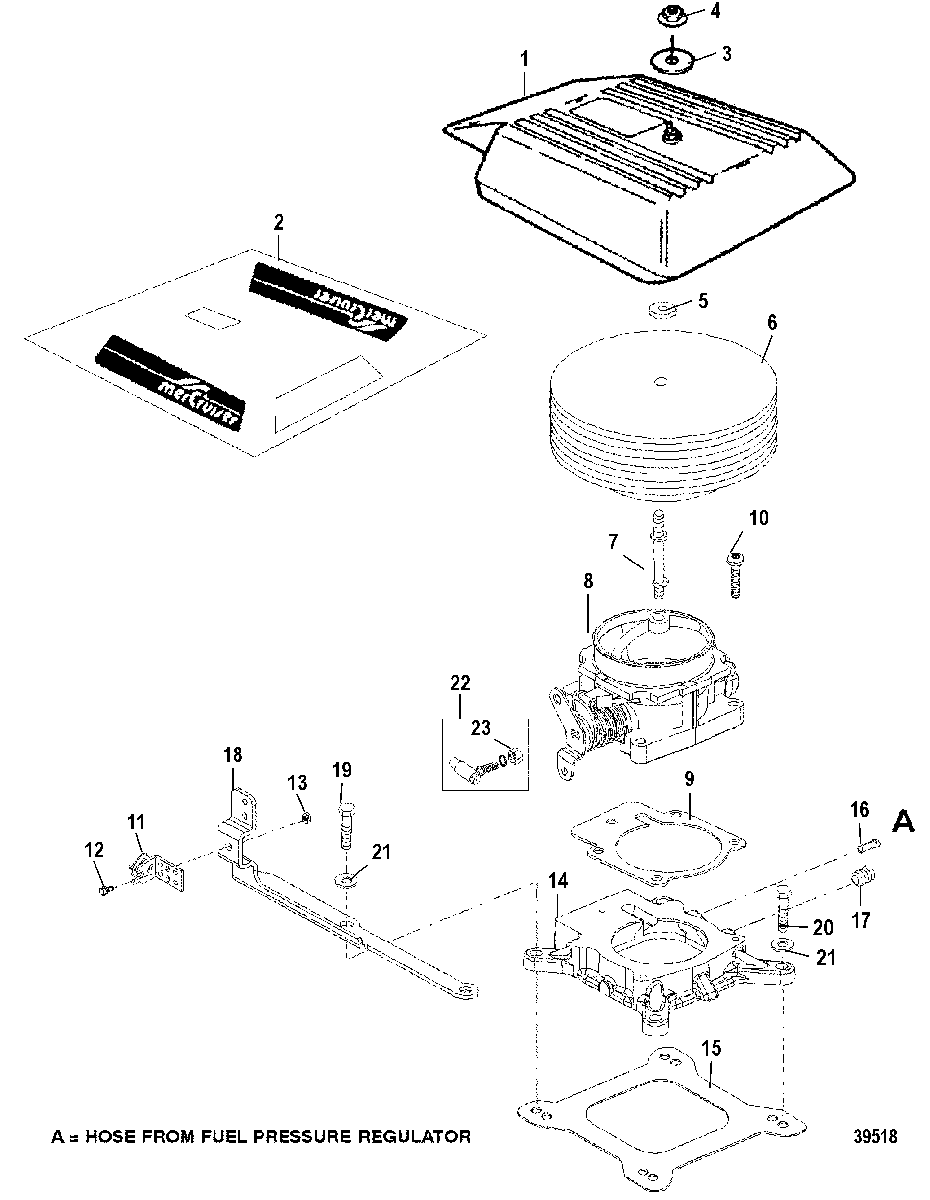

Intake Plenum and Flame Arrestor(SN 0L304600 & Up) для Mercruiser - 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP 0L002600 THRU 0M310009

  • №
    Артикул
    Название
  • 1
    18484A3 COVER
    COVER
  • 2
    37-861373A3 DECAL SET
    DECAL SET
  • 3
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    WASHER, (.255 x .620 x .030) Stainless Steel
  • 4
    11-826709109 NUT, (.250-28) Stainless Steel
    NUT, (.250-28) Stainless Steel
  • 5
    12-26907 WASHER
    WASHER
  • 6
    861443T FLAME ARRESTOR
    FLAME ARRESTOR
  • 7
    16-8M0113181 STUD, (.250-20/.250-28 x Special)
    STUD, (.250-20/.250-28 x Special)
  • 8
    861442A1 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 9
    27-861449 GASKET
    GASKET
  • NS
    803148 SENSOR
    SENSOR
  • NS
    10-803150 SCREW
    SCREW
  • NS
    26-803152 SEAL, TPS
    SEAL, TPS
  • NS
    803149 VALVE, IAC
    VALVE, IAC
  • NS
    10-803151 SCREW, IAC
    SCREW, IAC
  • 10
    10-807054 SCREW, (.250-20 x 1.00)
    SCREW, (.250-20 x 1.00)
  • 11
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 12
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 13
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 14
    863210A1 PLATE ASSEMBLY, TBI Adaptor
    PLATE ASSEMBLY, TBI Adaptor
  • 15
    27-41610 GASKET
    GASKET
  • 16
    22-805598 FITTING, (.1875) Barb
    FITTING, (.1875) Barb
  • 17
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 18
    861388 BRACKET, Throttle Cable
    BRACKET, Throttle Cable
  • 19
    10-74824 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 20
    10-860132 SCREW, (.312-18 x 1.250)
    SCREW, (.312-18 x 1.250)
  • 21
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 22
    807484 BALL JOINT ASSEMBLY, Quick Release
    BALL JOINT ASSEMBLY, Quick Release
  • 23
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
