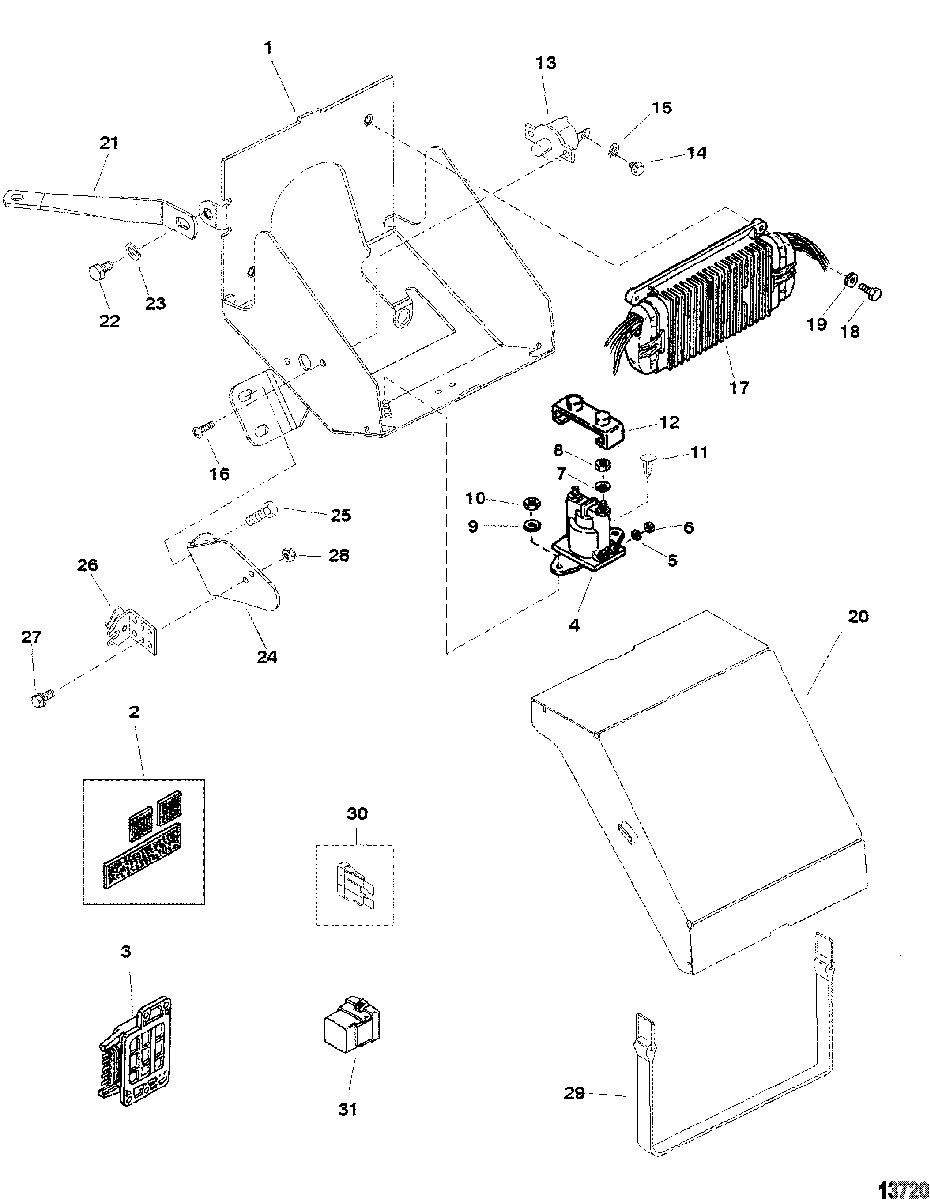

Electrical Components(SN-0L304599 and Below) для Mercruiser - 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP 0L002600 THRU 0M310009

  • №
    Артикул
    Название
  • 1
    861071 BOX, Electrical Components
    BOX, Electrical Components
  • 2
    806762A1 VELCRO KIT
    VELCRO KIT
  • 3
    806611T MODULE, Knock Control
    MODULE, Knock Control
  • 4
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 7
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 8
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 11
    861426 FASTENER, Panel
    FASTENER, Panel
  • 12
    85-97861 INSULATOR
    INSULATOR
  • 13
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 14
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 16
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 17
    861265R6 MODULE ASSEMBLY, Electronic Control Module, Mefi-2
    SN# 0L304599 & Below
    MODULE ASSEMBLY, Electronic Control Module, Mefi-2
    SN# 0L304599 & Below
  • 18
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 19
    12-20533 WASHER
    WASHER
  • 20
    861072T COVER, Electrical Box
    COVER, Electrical Box
  • 21
    54-807966 STRAP
    STRAP
  • 22
    10-54615 SCREW, (.250-20 x .625)
    SCREW, (.250-20 x .625)
  • 23
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 24
    807719T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 25
    10-65746 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 26
    807485T BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 27
    10-89766 SCREW, (#10-32 x .620) Stainless Steel
    SCREW, (#10-32 x .620) Stainless Steel
  • 28
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 29
    92-861451 STRAP, Rubber
    STRAP, Rubber
  • 30
    862647 FUSE, 10 Ampere
    FUSE, 10 Ampere
  • 30
    88-804642 FUSE, 15 Ampere
    FUSE, 15 Ampere
  • 31
    86-865202T RELAY, Fuel Pump
    RELAY, Fuel Pump
