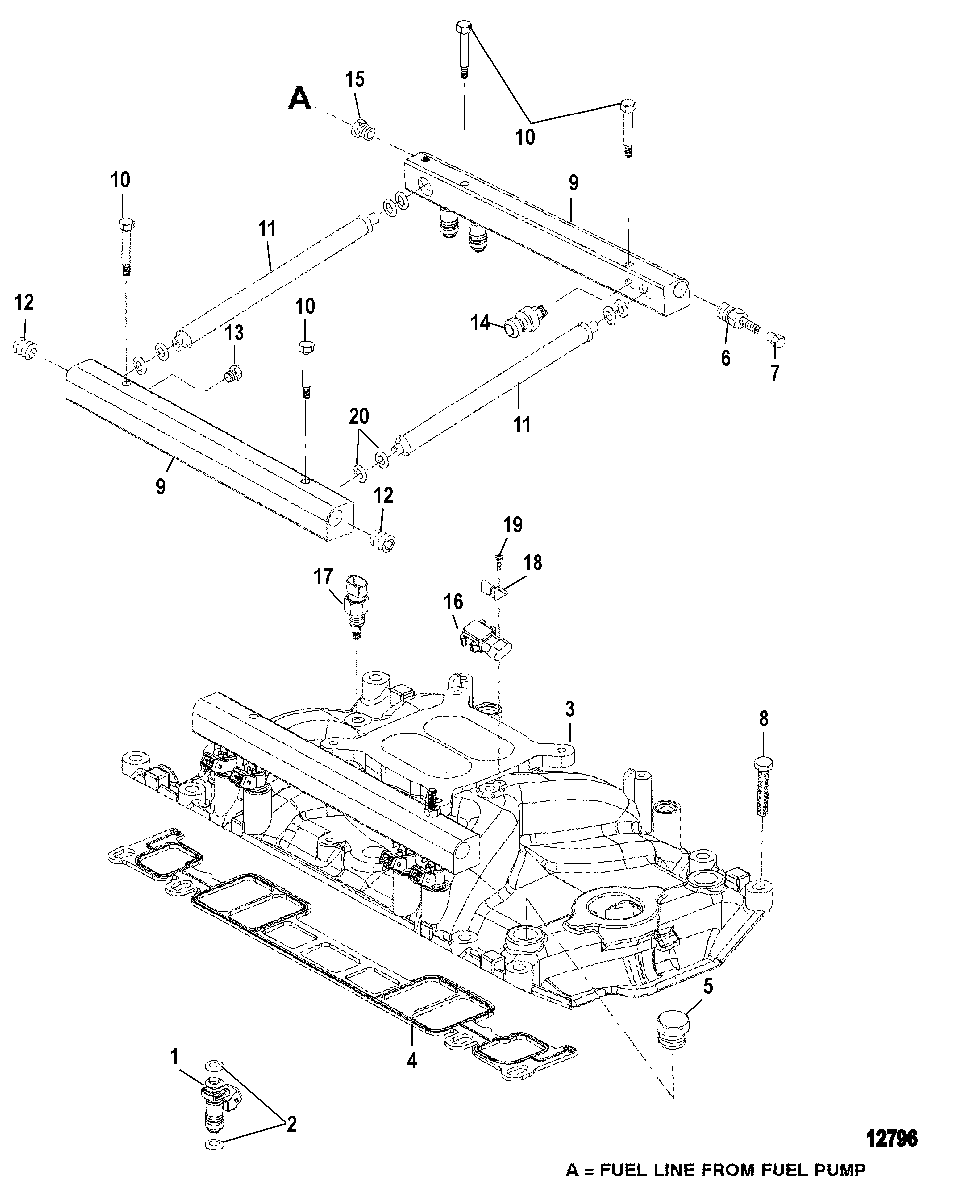

Intake Manifold and Fuel Rails(SN 0L304600 & Up) для Mercruiser - 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP 0L002600 THRU 0M310009

  • №
    Артикул
    Название
  • 1
    861260T INJECTOR, Fuel
    INJECTOR, Fuel
  • 2
    25-851889 O-RING
    O-RING
  • 3
    8M0061387 MANIFOLD ASSEMBLY, Intake
    MANIFOLD ASSEMBLY, Intake
  • 4
    27-807473A1 GASKET SET
    GASKET SET
  • 5
    22-860075 PLUG, Pipe (.500-14)
    PLUG, Pipe (.500-14)
  • 6
    22-805408 VALVE, Rail Pressure Service
    VALVE, Rail Pressure Service
  • 7
    19-8M0046566 CAP, Shrader Valve - Brass
    CAP, Shrader Valve - Brass
  • 8
    10-808010 SCREW, (.312-18 x 1.375)
    SCREW, (.312-18 x 1.375)
  • 9
    861804T1 FUEL RAIL
    FUEL RAIL
  • 10
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel
    SCREW, (.250-20 x 1.500) Stainless Steel
  • 11
    861805 TUBE, Fuel Cross Over
    TUBE, Fuel Cross Over
  • 12
    22-73379 PLUG, (.250-18)
    PLUG, (.250-18)
  • 13
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 14
    881879A8 SENSOR, Fuel Pressure
    SENSOR, Fuel Pressure
  • 15
    22-33821 CONNECTOR
    CONNECTOR
  • 16
    8M0054726 SENSOR ASSEMBLY, Manifold Air Pressure
    SENSOR ASSEMBLY, Manifold Air Pressure
  • 17
    805223T SENSOR
    SENSOR
  • 18
    861198 CLIP
    CLIP
  • 19
    10-806826 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 20
    25-862053 O-RING
    O-RING
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
