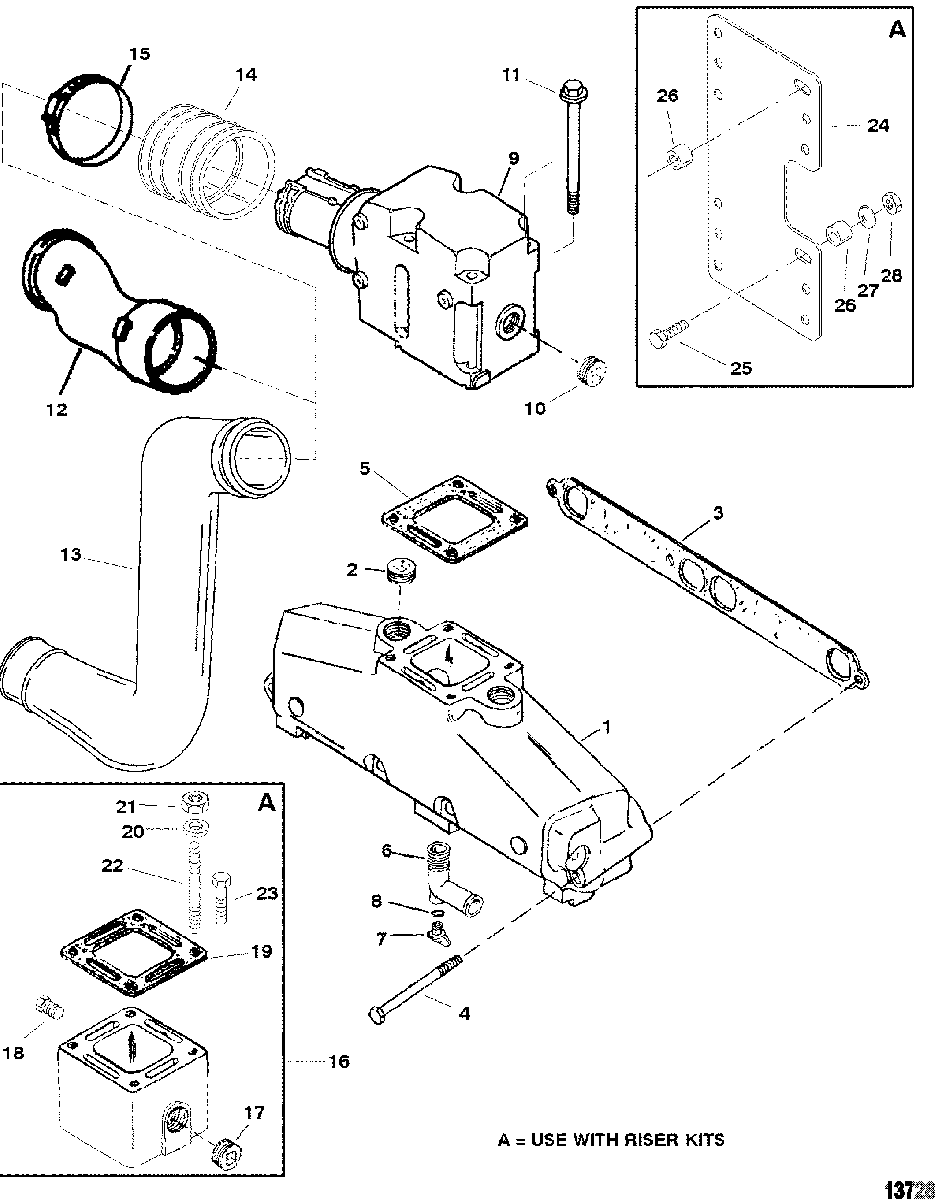

Exhaust Manifold And Exhaust Elbow для Mercruiser - 350 MAG MPI SKI (GEN+) GM 350 V-8 1998 AND UP 0L002600 THRU 0M310009

  • №
    Артикул
    Название
  • 1
    860246A15 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 3
    27-33395 GASKET
    GASKET
  • 4
    10-53728 SCREW, (.375-16 x 4.75)
    SCREW, (.375-16 x 4.75)
  • 5
    27-863724 GASKET
    GASKET
  • 6
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 7
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue
    PLUG KIT, (.500-13) Royal Blue
  • 8
    25-32509 QUAD RING
    QUAD RING
  • 9
    807988A03 ELBOW ASSEMBLY, Exhaust
    ELBOW ASSEMBLY, Exhaust
  • 9
    807988A03 ELBOW ASSEMBLY, Exhaust
    Swiss Emissions (BSO1 And SAV1)
    ELBOW ASSEMBLY, Exhaust
    Swiss Emissions (BSO1 And SAV1)
  • 10
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 11
    10-43749 SCREW, (.375-16 x 5.750)
    SCREW, (.375-16 x 5.750)
  • 12
    807153T PIPE
    (Standard)
    PIPE
    (Standard)
  • 13
    807611T PIPE, Exhaust
    (Optional)
    PIPE, Exhaust
    (Optional)
  • 14
    32-44348001 TUBE
    TUBE
  • 15
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 16
    93320A13 RISER KIT, Exhaust (3 Inches)
    (Each Kit Contains Two Risers)
    RISER KIT, Exhaust (3 Inches)
    (Each Kit Contains Two Risers)
  • 16
    93322A12 RISER KIT, Exhaust (6 Inches)
    (Each Kit Contains Two Risers)
    RISER KIT, Exhaust (6 Inches)
    (Each Kit Contains Two Risers)
  • 17
    22-416223 PLUG, (.750-14) Pipe
    PLUG, (.750-14) Pipe
  • 18
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 19
    27-863726 GASKET
    GASKET
  • 20
    12-46132 WASHER
    (Use With Three Inch Risers)
    WASHER
    (Use With Three Inch Risers)
  • 21
    11-46335 NUT, (.375-24)
    (Use With Three Inch Risers)
    NUT, (.375-24)
    (Use With Three Inch Risers)
  • 22
    16-8M0022137 STUD, (.375 x 9.56)
    (Use With Three Inch Risers)
    STUD, (.375 x 9.56)
    (Use With Three Inch Risers)
  • 23
    10-865982005 SCREW, (.375-16 x 1.00)
    (Use With Six Inch Risers)
    SCREW, (.375-16 x 1.00)
    (Use With Six Inch Risers)
  • 24
    818598T BRACKET
    (Use With Six Inch Risers)
    BRACKET
    (Use With Six Inch Risers)
  • 25
    10-76596 SCREW, (.250-20 x 1.250)
    (Use With Six Inch Risers)
    SCREW, (.250-20 x 1.250)
    (Use With Six Inch Risers)
  • 26
    23-806981 SPACER
    (Use With Six Inch Risers)
    SPACER
    (Use With Six Inch Risers)
  • 27
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    (Use With Six Inch Risers)
    WASHER, (.2656 x .625 x .0625) Stainless Steel
    (Use With Six Inch Risers)
  • 28
    11-64015 NUT, (.250-20)
    (Use With Six Inch Risers)
    NUT, (.250-20)
    (Use With Six Inch Risers)
  • -
    27-75611A98 GASKET SET, Engine Overhaul
    (Contents Indicated By Foot Note 27.)
    GASKET SET, Engine Overhaul
    (Contents Indicated By Foot Note 27.)
  • --
    8M0088397 MARINE LONG BLOCK ENGINE
    (Contents Indicated By Foot Note 26.)
    MARINE LONG BLOCK ENGINE
    (Contents Indicated By Foot Note 26.)
