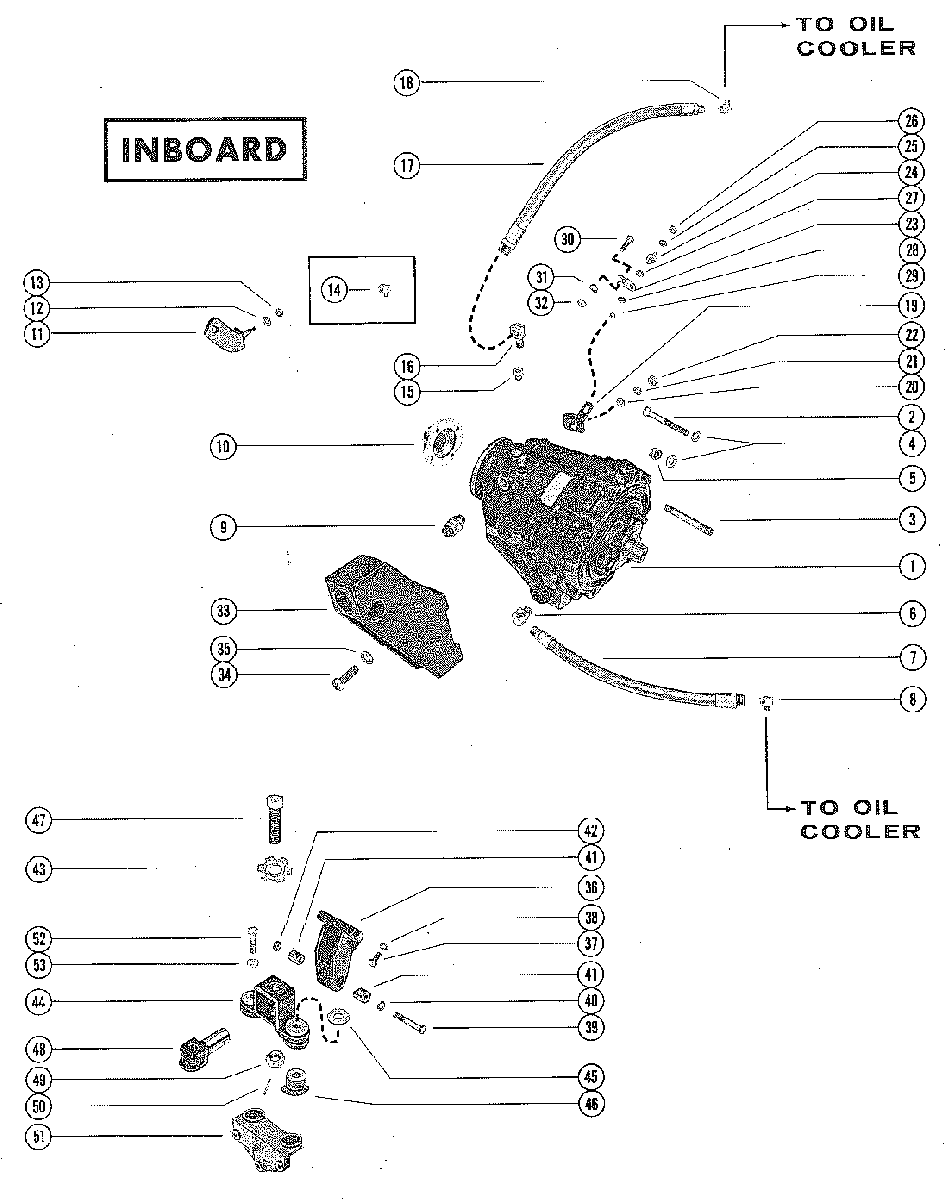

TRANSMISSION ASSEMBLY (INBOARD) для Mercruiser - 270 (2 BBL.) GM 350 V-8 1969-1972 2851074 THRU 3077735

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION (DIRECT DRIVE)
    TRANSMISSION (DIRECT DRIVE)
  • 1
    47806R07 TRANSMISSION (1.523:1 REDUCTION)
    TRANSMISSION (1.523:1 REDUCTION)
  • 1
    47807A7 TRANSMISSION (1.909:1 REDUCTION)
    TRANSMISSION (1.909:1 REDUCTION)
  • 1
    47808R07 TRANSMISSION (2.57:1 REDUCTION)
    TRANSMISSION (2.57:1 REDUCTION)
  • 1
    47809A7 TRANSMISSION (2.909:1 REDUCTION)
    TRANSMISSION (2.909:1 REDUCTION)
  • 2
    10-47724 SCREW, TRANSMISSION TO ENGINE (3")
    SCREW, TRANSMISSION TO ENGINE (3")
  • 2
    10-47724 SCREW, TRANSMISSION TO ENGINE (3")
    SCREW, TRANSMISSION TO ENGINE (3")
  • 3
    16-57921 STUD, TRANSMISSION TO ENGINE (4")
    STUD, TRANSMISSION TO ENGINE (4")
  • 4
    13-32993 LOCKWASHER, TRANSMISSION SCREW AND STUD
    LOCKWASHER, TRANSMISSION SCREW AND STUD
  • 5
    11-22024 NUT, TRANSMISSION STUD
    NUT, TRANSMISSION STUD
  • 6
    22-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 7
    32-4751612 HOSE, OIL COOLER TO TRANSMISSION (13 7/8")
    HOSE, OIL COOLER TO TRANSMISSION (13 7/8")
  • 7
    32-475163 HOSE, OIL COOLER TO TRANSMISSION (7 7/8")
    HOSE, OIL COOLER TO TRANSMISSION (7 7/8")
  • 8
    22-47630 ELBOW, HOSE TO OIL COOLER (90 DEGREES)
    ELBOW, HOSE TO OIL COOLER (90 DEGREES)
  • 9
    47613 SWITCH, NEUTRAL SAFETY
    SWITCH, NEUTRAL SAFETY
  • 10
    87917A1 FLANGE (1")
    FLANGE (1")
  • 10
    87917A2 FLANGE (1 1/8")
    FLANGE (1 1/8")
  • 10
    87917A3 FLANGE (1 1/4")
    FLANGE (1 1/4")
  • 10
    48384A1 FLANGE (1 3/8")
    FLANGE (1 3/8")
  • 10
    87917A5 FLANGE (1 1/2")
    FLANGE (1 1/2")
  • 11
    48648 BRACKET, SHIFT CABLE
    BRACKET, SHIFT CABLE
  • 12
    12-56681 WASHER, SHIFT CABLE TO BRACKET STUD
    WASHER, SHIFT CABLE TO BRACKET STUD
  • 13
    11-46438 NUT, SHIFT CABLE TO BRACKET STUD (10-32)
    NUT, SHIFT CABLE TO BRACKET STUD (10-32)
  • 14
    22-47629 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 15
    23-36159 BUSHING, REDUCING - TRANSMISSION ELBOW
    BUSHING, REDUCING - TRANSMISSION ELBOW
  • 16
    22-47631 ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
    ELBOW, HOSE TO TRANSMISSION (90 DEGREES)
  • 17
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (15")
    HOSE, TRANSMISSION TO OIL COOLER (15")
  • 17
    32-4751612 HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
    HOSE, TRANSMISSION TO OIL COOLER (16 3/4")
  • 18
    22-47630 ELBOW, HOSE TO OIL COOLER (90 DEGREES)
    ELBOW, HOSE TO OIL COOLER (90 DEGREES)
  • 19
    48515 LEVER, SHIFT - TRANSMISSION
    LEVER, SHIFT - TRANSMISSION
  • 20
    12-20722 WASHER, SHIFT LEVER TO TRANSMISSION
    WASHER, SHIFT LEVER TO TRANSMISSION
  • 21
    13-26993 LOCKWASHER, SHIFT LEVER TO TRANSMISSION
    LOCKWASHER, SHIFT LEVER TO TRANSMISSION
  • 22
    11-22053 NUT, SHIFT LEVER TO TRANSMISSION
    NUT, SHIFT LEVER TO TRANSMISSION
  • 23
    48652 ADAPTOR, SHIFT CABLE TO SHIFT LEVER
    ADAPTOR, SHIFT CABLE TO SHIFT LEVER
  • 24
    16-48680 STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
    STUD, SHIFT CABLE ADAPTOR TO SHIFT LEVER (1 1/4")
  • 25
    12-20533 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 26
    11-20184 NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
    NUT, SHIFT CABLE ADAPTOR STUD (1/4-28)
  • 27
    13-29402 WAVE WASHER, SHIFT CABLE ADAPTOR STUD
    WAVE WASHER, SHIFT CABLE ADAPTOR STUD
  • 28
    12-56681 WASHER, SHIFT CABLE ADAPTOR STUD
    WASHER, SHIFT CABLE ADAPTOR STUD
  • 29
    11-46438 NUT, SHIFT CABLE ADAPTOR STUD (10-32)
    NUT, SHIFT CABLE ADAPTOR STUD (10-32)
  • 30
    10-20639 SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
    SCREW, SHIFT CABLE TO ADAPTOR (1 1/8")
  • 31
    12-22753 WASHER, SHIFT CABLE SCREW
    WASHER, SHIFT CABLE SCREW
  • 32
    11-29250 NUT, SHIFT CABLE SCREW (5/16-24)
    NUT, SHIFT CABLE SCREW (5/16-24)
  • 33
    47501 BRACKET, MOUNTING (REAR)
    BRACKET, MOUNTING (REAR)
  • 34
    10-37269 SCREW, MOUNTING BRACKET TO TRANSMOSSION (2")
    SCREW, MOUNTING BRACKET TO TRANSMOSSION (2")
  • 35
    13-32993 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 36
    47499 BRACKET, MOUNTING (FRONT)
    BRACKET, MOUNTING (FRONT)
  • 37
    10-48424 SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
    SCREW, MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
  • 38
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 39
    10-47654 SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
    SCREW, CLAMP - ADJUSTING TRUNNION (2 3/4")
  • 40
    13-32993 LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
    LOCKWASHER, CLAMP ADJUSTING TRUNNION SCREW
  • 41
    54-47528 CLAMP, ADJUSTING TRUNNION SCREW
    CLAMP, ADJUSTING TRUNNION SCREW
  • 42
    11-82670814 NUT, CLAMP ADJUSTING TRUNNION SCREW
    NUT, CLAMP ADJUSTING TRUNNION SCREW
  • 43
    10-47467 TAB WASHER, ADJUSTING TRUNNION SCREW
    TAB WASHER, ADJUSTING TRUNNION SCREW
  • 44
    52139A4 BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
    BRACKET ASSEMBLY, MOUNTING - FRONT AND REAR
  • 45
    12-48611 WASHER, MOUNTING BRACKET
    WASHER, MOUNTING BRACKET
  • 46
    47656 MOUNT, MOUNTING BRACKET
    MOUNT, MOUNTING BRACKET
  • 47
    10-52156 SCREW, ADJUSTING TRUNNION (4 1/2")
    SCREW, ADJUSTING TRUNNION (4 1/2")
  • 48
    47518 TRUNNION, ADJUSTING - MOUNTING BRACKET
    TRUNNION, ADJUSTING - MOUNTING BRACKET
  • 49
    11-47525 NUT, JAM - ADJUSTING TRUNNION SCREW
    NUT, JAM - ADJUSTING TRUNNION SCREW
  • 50
    17-22116 PIN, ROLL - JAM NUT
    PIN, ROLL - JAM NUT
  • 51
    47986 BRACKET, MOUNTING - ENGINE
    BRACKET, MOUNTING - ENGINE
  • 52
    10-48254 SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
    SCREW, MOUNTING BRACKET ATTACHING (2 1/8")
  • 53
    13-31848 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
