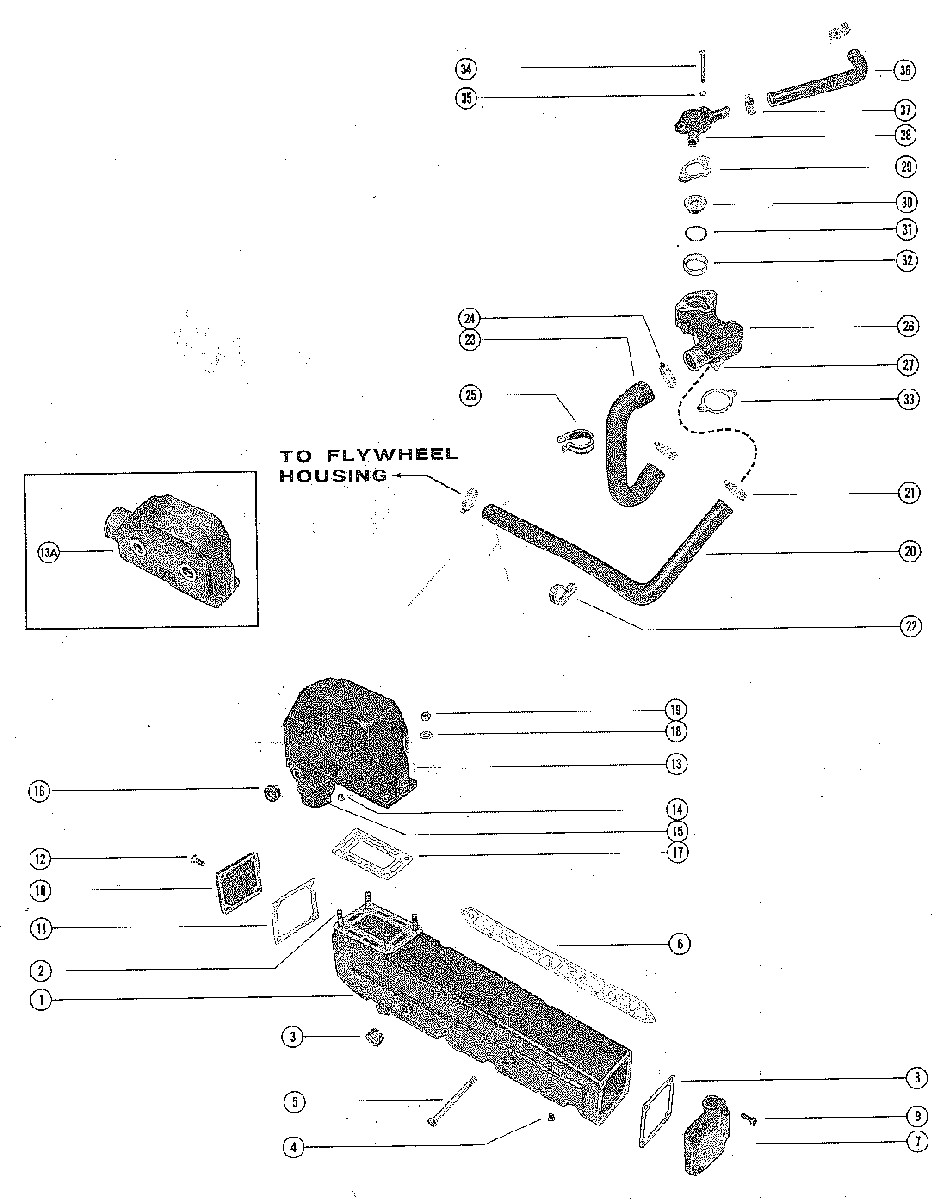

EXHAUST MANIFOLD ASSEMBLY, PORT для Mercruiser - 270 (2 BBL.) GM 350 V-8 1969-1972 2851074 THRU 3077735

  • №
    Артикул
    Название
  • 1
    47737A10 EXHAUST MANIFOLD ASSEMBLY, PORT
    EXHAUST MANIFOLD ASSEMBLY, PORT
  • 1
    47738A10 EXHAUST MANIFOLD ASSEMBLY, STARBOARD
    EXHAUST MANIFOLD ASSEMBLY, STARBOARD
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
  • 3
    22-48118 PLUG, EXHAUST MAINFOLD
    PLUG, EXHAUST MAINFOLD
  • 4
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD
    PLUG, PIPE - EXHAUST MANIFOLD
  • 5
    10-53728 SCREW, EXHAUST MAINFOLD TO CYLINDER HEAD (4 5/8")
    SCREW, EXHAUST MAINFOLD TO CYLINDER HEAD (4 5/8")
  • 6
    27-33395 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 7
    60252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
    END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
  • 8
    27-480431 GASKET, END CAP/CONNECTOR
    GASKET, END CAP/CONNECTOR
  • 9
    10-35386 SCREW, END CAP TO EXHAUST MANIFOLD (1")
    SCREW, END CAP TO EXHAUST MANIFOLD (1")
  • 9
    10-74824 SCREW, END CAP TO EXHAUST MANIFOLD (1 1/4")
    SCREW, END CAP TO EXHAUST MANIFOLD (1 1/4")
  • 10
    73813A1 END CAP, EXHAUST MANIFOLD (REAR)
    END CAP, EXHAUST MANIFOLD (REAR)
  • 11
    27-480431 GASKET, END CAP
    GASKET, END CAP
  • 12
    10-23703 SCREW, END CAP TO EXHAUST MANIFOLD (7/8")
    SCREW, END CAP TO EXHAUST MANIFOLD (7/8")
  • 13
    76668A3 EXHAUST ELBOW ASSEMBLY (90 _ STERN DRIVE)
    EXHAUST ELBOW ASSEMBLY (90 _ STERN DRIVE)
  • 13A
    72963A9 EXHAUST ELBOW ASSEMBLY (STRAIGHT - INNBOARD)
    EXHAUST ELBOW ASSEMBLY (STRAIGHT - INNBOARD)
  • 14
    22-328022 PLUG, PIPE - EXHAUST ELBOW
    PLUG, PIPE - EXHAUST ELBOW
  • 15
    32-58616A2 TUBE, WATER SEPARATION - EXHAUST ELBOW
    TUBE, WATER SEPARATION - EXHAUST ELBOW
  • 16
    22-48118 PLUG, EXHAUST ELBOW
    PLUG, EXHAUST ELBOW
  • 17
    27-48042 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
    GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
  • 18
    13-35048 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 19
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 20
    32-47650 HOSE, FLYWHEEL HOUSING TO THERMOSTAT HOUSING
    HOSE, FLYWHEEL HOUSING TO THERMOSTAT HOUSING
  • 21
    54-815504220 CLAMP, HOSE TO WATER PUMP AND THERMOSTAT HOUSING
    CLAMP, HOSE TO WATER PUMP AND THERMOSTAT HOUSING
  • 22
    54-47715 CLIP, HOSE TO CYLINDER BLOCK
    CLIP, HOSE TO CYLINDER BLOCK
  • 23
    32-33189 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 24
    54-815504228 CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
    CLAMP, HOSE TO THERMOSTAT HOUSING AND WATER PUMP
  • 25
    54-53020 CLAMP, WATER PUMP HOSE TO CYLINDER BLOCK
    CLAMP, WATER PUMP HOSE TO CYLINDER BLOCK
  • 26
    52877A1 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 27
    23-47511 SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 28
    47441A1 COVER, THERMOSTAT HOUSING
    COVER, THERMOSTAT HOUSING
  • 29
    27-488181 GASKET, THERMOSTAT HOUSING (UPPER)
    GASKET, THERMOSTAT HOUSING (UPPER)
  • 30
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 31
    27-47510 GASKET, THERMOSTAT (MIDDLE)
    GASKET, THERMOSTAT (MIDDLE)
  • 32
    23-47508T SLEEVE, THERMOSTAT HOUSING
    SLEEVE, THERMOSTAT HOUSING
  • 33
    27-530451 GASKET, THERMOSTAT HOUSING (LOWER)
    GASKET, THERMOSTAT HOUSING (LOWER)
  • 34
    10-48115 SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD 93 1/2")
    STERN DRIVE
    SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD 93 1/2")
    STERN DRIVE
  • 35
    13-35048 LOCKWASHER, THERMOSTAT HOUSING SCREW
    STERN DRIVE
    LOCKWASHER, THERMOSTAT HOUSING SCREW
    STERN DRIVE
  • 34
    10-35785 SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (3 1/4")
    INBOARD
    SCREW, THERMOSTAT HOUSING TO INTAKE MANIFOLD (3 1/4")
    INBOARD
  • 36
    32-48132 HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
    HOSE, THERMOSTAT HOUSING TO EXHAUST MANIFOLD
  • 37
    54-815504220 CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
    CLAMP, HOSE TO THERMOSTAT HOUSING AND EXHAUST MANIFOLD
