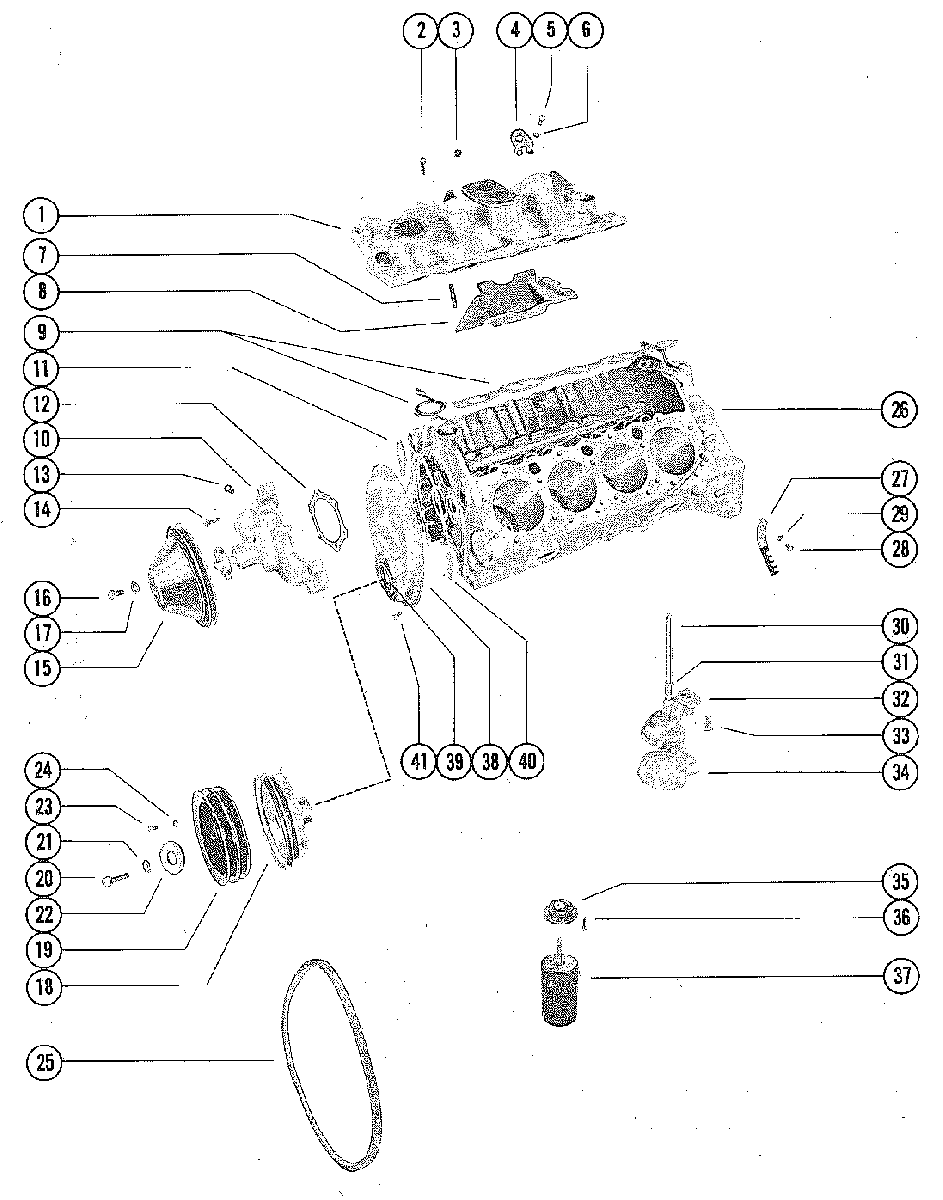

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 270 (2 BBL.) GM 350 V-8 1969-1972 2851074 THRU 3077735

  • №
    Артикул
    Название
  • 1
    54794 INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    10-26487 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/8")
  • 2
    10-52200 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/2")
  • 3
    22-48336 PLUG, PIPE - INTAKE MANIFOLD
    PLUG, PIPE - INTAKE MANIFOLD
  • 4
    54-47512 EYE, LIFTING
    EYE, LIFTING
  • 5
    10-34354 SCREW, LIFTING EYE ATTACHING (1 1/2")
    SCREW, LIFTING EYE ATTACHING (1 1/2")
  • 6
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 7
    16-52228 STUD, GUARD TO INTAKE MANIFOLD
    STUD, GUARD TO INTAKE MANIFOLD
  • 8
    54795 GUARD, INTAKE MANIFOLD
    GUARD, INTAKE MANIFOLD
  • 9
    27-54792 GASKET SET, INTAKE MANIFOLD
    GASKET SET, INTAKE MANIFOLD
  • 10
    46-8M0113734 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 11
    27-34897 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 12
    27-35380 GASKET, WATER PUMP BACKING PLATE
    GASKET, WATER PUMP BACKING PLATE
  • 13
    22-48336 PLUG, PIPE - WATER PUMP
    PLUG, PIPE - WATER PUMP
  • 14
    10-48424 SCREW, WATER PUMP TO CYLINDER BLOCK (1 5/8")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 5/8")
  • 14
    10-47688 SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (2 3/4")
  • 15
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 16
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 17
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 18
    FI1100847 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 19
    33863T PULLEY, HARMONIC BALANCER
    PULLEY, HARMONIC BALANCER
  • 20
    10-34281 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
    BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT (2")
  • 21
    13-39131 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 22
    12-35332001 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 23
    10-34352 BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (7/8")
    BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (7/8")
  • 24
    13-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLT
    LOCKWASHER, CRANKSHAFT PULLEY BOLT
  • 25
    57-48120Q1 BELT, ALTERNATOR DRIVE (46")
    BELT, ALTERNATOR DRIVE (46")
  • 26
    841-4301 CYLINDER BLOCK ASSEMBLY (SEE F6 FOR PARTS BREAKDOWN)
    CYLINDER BLOCK ASSEMBLY (SEE F6 FOR PARTS BREAKDOWN)
  • 27
    35365 SUPPORT, SPARK PLUG LEAD WIRE
    SUPPORT, SPARK PLUG LEAD WIRE
  • 28
    10-8M0040582 SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
    SCREW, LEAD WIRE SUPPORT TO CYLINDER BLOCK (1/2")
  • 29
    13-35367 LOCKWASHER, LEAD WIRE SUPPORT SCREW
    LOCKWASHER, LEAD WIRE SUPPORT SCREW
  • 30
    36184 SHAFT, OIL PUMP TO DISRIBUTOR
    SHAFT, OIL PUMP TO DISRIBUTOR
  • 31
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 32
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 33
    10-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")
    BOLT, OIL PUMP TO CYLINDER BLOCK (2")
  • 34
    35354 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 35
    71920 FILTER VALVE ASSEMBLY
    ENGINE WITH OIL FILTER ON CYLINDER BLOCK
    FILTER VALVE ASSEMBLY
    ENGINE WITH OIL FILTER ON CYLINDER BLOCK
  • 36
    10-36404 SCREW, FILTER VALVE TO CYLINDER BLOCK
    ENGINE WITH OIL FILTER ON CYLINDER BLOCK
    SCREW, FILTER VALVE TO CYLINDER BLOCK
    ENGINE WITH OIL FILTER ON CYLINDER BLOCK
  • 35
    54785 ADAPTOR ASSEMBLY, OIL FILTER BY-PASS
    ENGINE WITH OIL FILTER ON ELECTRIC PANEL
    ADAPTOR ASSEMBLY, OIL FILTER BY-PASS
    ENGINE WITH OIL FILTER ON ELECTRIC PANEL
  • 36
    10-54786 SCREW, ADAPTOR TO CYLINDER BLOCK
    ENGINE WITH OIL FILTER ON ELECTRIC PANEL
    SCREW, ADAPTOR TO CYLINDER BLOCK
    ENGINE WITH OIL FILTER ON ELECTRIC PANEL
  • 37
    35-866340Q03 OIL FILTER ASSEMBLY (STERN DRIVE ) - NOT AS SHOWN
    OIL FILTER ASSEMBLY (STERN DRIVE ) - NOT AS SHOWN
  • 38
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
  • 38
    8M0127828 COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
  • 39
    26-97335 OIL SEAL, CRANKCASE FRONT END COVER
    OIL SEAL, CRANKCASE FRONT END COVER
  • 40
    27-14250 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 41
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
    SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
