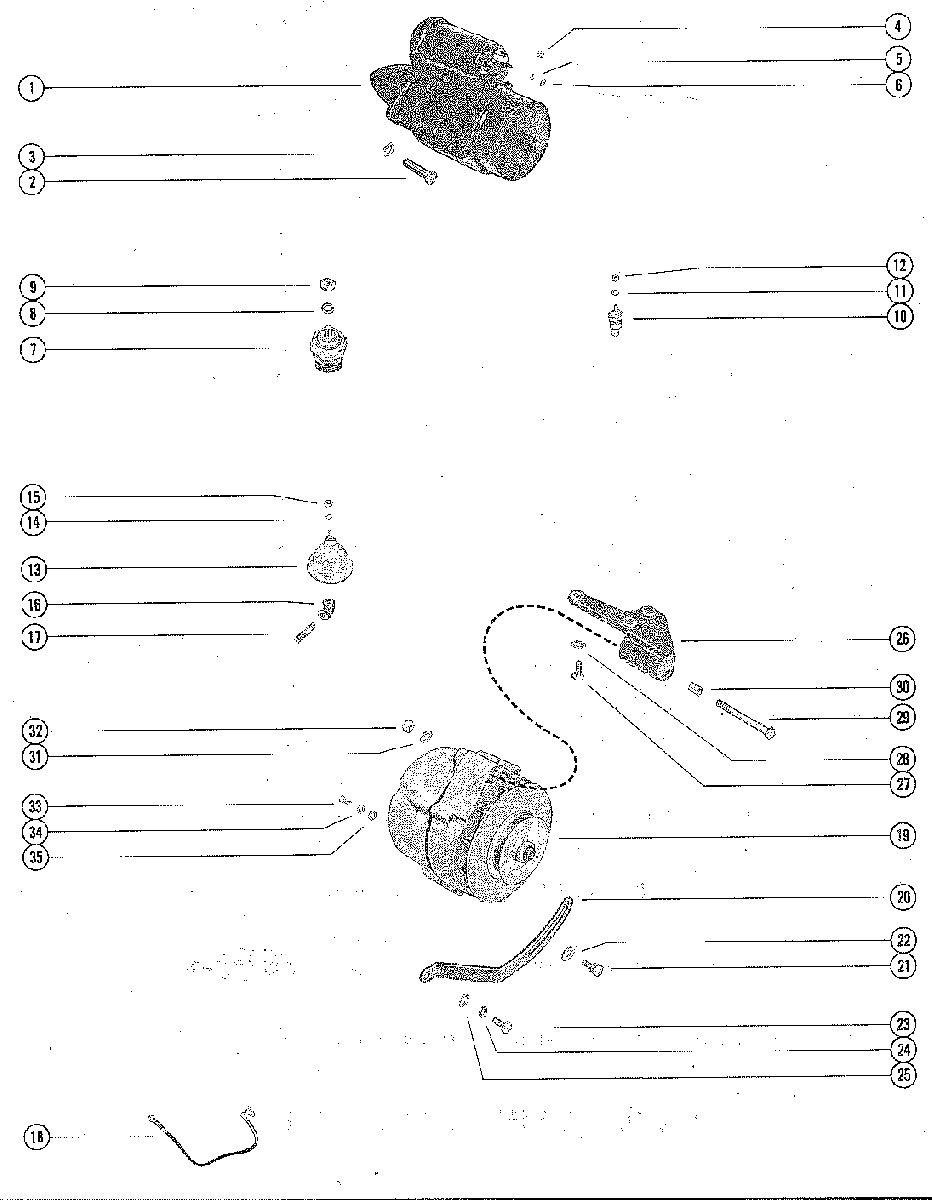

STARTER MOTOR AND ALTERNATOR для Mercruiser - 270 (2 BBL.) GM 350 V-8 1969-1972 2851074 THRU 3077735

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY (STANDARD ROTATION)
    SEE NOTE
    STARTER MOTOR ASSEMBLY (STANDARD ROTATION)
    SEE NOTE
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY (OPPOSITE ROTATION)
    SEE NOTE
    STARTER MOTOR ASSEMBLY (OPPOSITE ROTATION)
    SEE NOTE
  • 2
    10-47462 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
  • 3
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    LOCKWASHER, STARTER MOTOR SCREW
  • 4
    11-32219 NUT,STARTER TERMINAL (3/8")
    NUT,STARTER TERMINAL (3/8")
  • 5
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    LOCKWASHER, STARTER TERMINAL (#8)
  • 6
    11-26419 NUT, STARTER TERMINAL (#8)
    NUT, STARTER TERMINAL (#8)
  • 7
    806490T WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 8
    13-26996 LOCKWASHER, WATER TEMPERATURE SEMDER TERINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SEMDER TERINAL (#10)
  • 9
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 10
    52676 SWITCH, ELECTRIC CHOKE
    SWITCH, ELECTRIC CHOKE
  • 11
    13-26996 LOCKWASHER, CHOKE SWITCH TERMINAL
    LOCKWASHER, CHOKE SWITCH TERMINAL
  • 12
    11-68219 NUT, CHOKE SWITCH TERMINAL
    NUT, CHOKE SWITCH TERMINAL
  • 13
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 14
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 15
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 16
    22-46932 ELBOW, OIL PRESSURE SENDER (45 DEGREES)
    ELBOW, OIL PRESSURE SENDER (45 DEGREES)
  • 17
    22-38992 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 18
    49607 BATTERY CABLE (NEGATIVE)
    STERN DRIVE
    BATTERY CABLE (NEGATIVE)
    STERN DRIVE
  • 18
    49608 BATTERY CABLE (POSITIVE)
    STERN DRIVE
    BATTERY CABLE (POSITIVE)
    STERN DRIVE
  • 19
    78403A2 ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
    ALTERNATOR ASSEMBLY (SEE NOTE BELOW)
  • 20
    85013T BRACE ALTERNATOR ADJUSTING
    BRACE ALTERNATOR ADJUSTING
  • 21
    10-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
  • 22
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 23
    10-98261 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
    SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (3/4")
  • 24
    13-35048 LOCKWASHER, ALTERNATOR BRACE SCREW
    LOCKWASHER, ALTERNATOR BRACE SCREW
  • 25
    12-20553 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 26
    48104A1 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 27
    10-21077 SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
    SCREW, ALTERNATOR BRACKET TO EXHAUST MANIFOLD (7/8")
  • 28
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 29
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
  • 30
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 31
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 32
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
  • 33
    10-20055 SCREW, GROUND WIRE TO ALTERNATOR
    SCREW, GROUND WIRE TO ALTERNATOR
  • 34
    13-26996 LOCKWASHER, GROUND WIRE SCREW
    LOCKWASHER, GROUND WIRE SCREW
  • 35
    12-30164 WASHER, GROUND WIRE SCREW
    WASHER, GROUND WIRE SCREW
