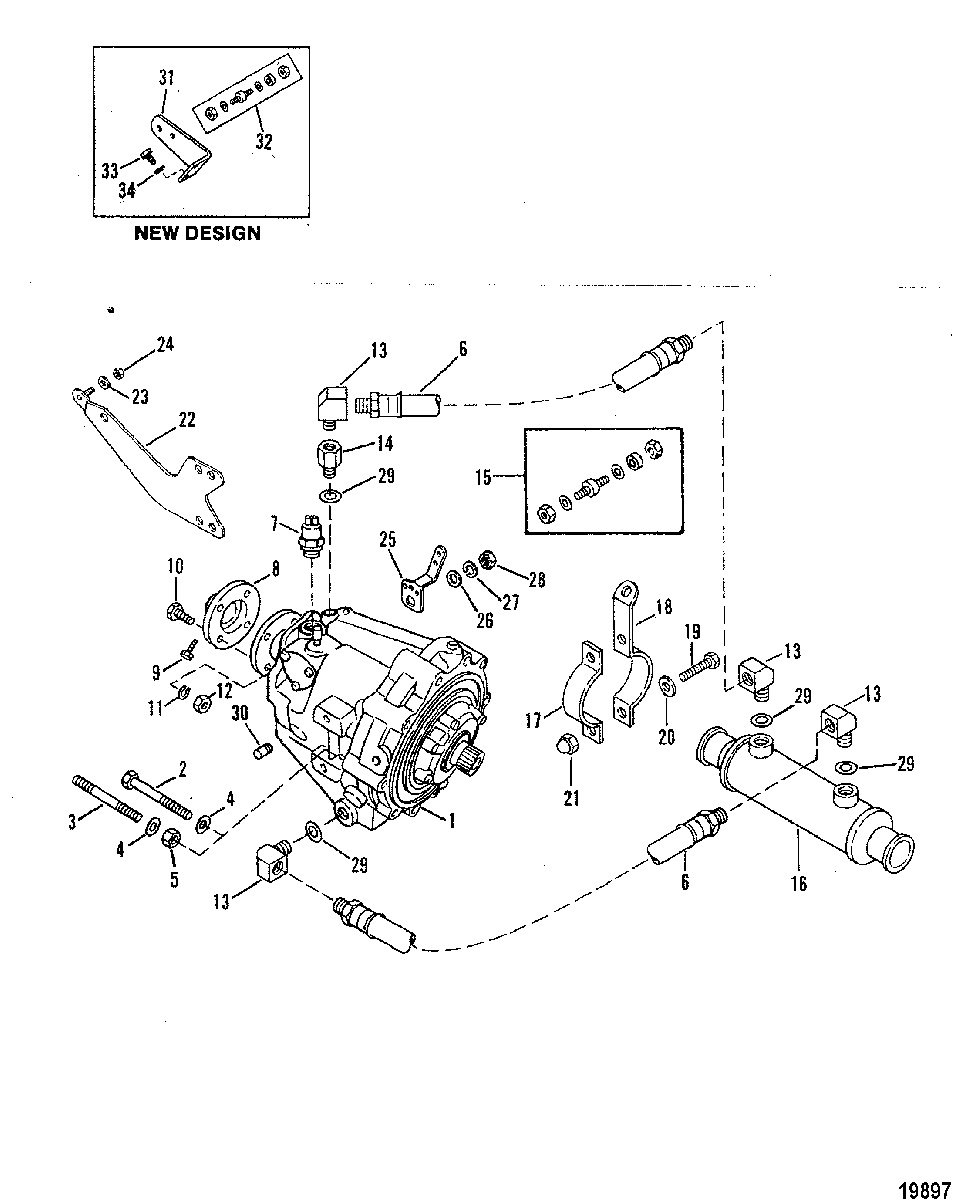

Transmission and Related Parts(In-Line) для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151

  • №
    Артикул
    Название
  • 1
    47805A7 TRANSMISSION ASSEMBLY (DIRECT DRIVE)
    TRANSMISSION ASSEMBLY (DIRECT DRIVE)
  • 1
    47806R07 TRANSMISSION (1.523:1 REDUCTION)
    TRANSMISSION (1.523:1 REDUCTION)
  • 1
    47807A7 TRANSMISSION (1.909:1 REDUCTION)
    TRANSMISSION (1.909:1 REDUCTION)
  • 1
    47808R07 TRANSMISSION (2.57:1 REDUCTION)
    TRANSMISSION (2.57:1 REDUCTION)
  • 1
    47809A7 TRANSMISSION (2.909:1 REDUCTION)
    TRANSMISSION (2.909:1 REDUCTION)
  • 2
    10-60179 SCREW, (.437-14 x 3.500)
    SCREW, (.437-14 x 3.500)
  • 3
    16-57921 STUD, (.437-14/.437-20 x 4.00)
    STUD, (.437-14/.437-20 x 4.00)
  • 4
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 5
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 6
    32-4751613 HOSE (44")
    HOSE (44")
  • 6
    32-4751613 HOSE, (49.00 Inches)
    HOSE, (49.00 Inches)
  • 7
    87-88031 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 8
    87917A1 FLANGE ASSEMBLY, (4.00 x 1.00)
    (Use 10-60169)
    FLANGE ASSEMBLY, (4.00 x 1.00)
    (Use 10-60169)
  • 8
    87917A2 FLANGE ASSEMBLY (1-1/8")
    (Use 10-60169)
    FLANGE ASSEMBLY (1-1/8")
    (Use 10-60169)
  • 8
    87917A3 FLANGE ASSEMBLY (1-1/4")
    (Use 10-60169)
    FLANGE ASSEMBLY (1-1/4")
    (Use 10-60169)
  • 8
    48384A1 FLANGE ASSEMBLY (1-3/8")
    (Use 10-60169)
    FLANGE ASSEMBLY (1-3/8")
    (Use 10-60169)
  • 8
    87917A5 FLANGE ASSEMBLY (1-1/2")
    (Use 10-60168)
    FLANGE ASSEMBLY (1-1/2")
    (Use 10-60168)
  • 8
    79476A1 FLANGE ASSEMBLY, (5.00 x 1.00)
    (Use 10-60171)
    FLANGE ASSEMBLY, (5.00 x 1.00)
    (Use 10-60171)
  • 8
    79476A3 FLANGE ASSEMBLY, (5.00 x 1.25)
    (Use 10-60171)
    FLANGE ASSEMBLY, (5.00 x 1.25)
    (Use 10-60171)
  • 8
    79476A4 FLANGE ASSEMBLY, (5.00 x 1.375)
    (Use 10-60171)
    FLANGE ASSEMBLY, (5.00 x 1.375)
    (Use 10-60171)
  • 8
    79476A5 FLANGE ASSEMBLY, (5.00 x 1.50)
    (Use 10-60170)
    FLANGE ASSEMBLY, (5.00 x 1.50)
    (Use 10-60170)
  • 9
    10-60168 SCREW (1-1/2")
    SCREW (1-1/2")
  • 9
    10-60171 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 9
    10-60171 SCREW, (1 In.) (1")
    SCREW, (1 In.) (1")
  • 9
    10-60169 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 10
    10-37909 SCREW, (.375-24 x 1.125)
    SCREW, (.375-24 x 1.125)
  • 10
    10-60106 SCREW, (1.25 In) (1-1/4")
    SCREW, (1.25 In) (1-1/4")
  • 11
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    11-46335 NUT
    NUT
  • 12
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 13
    22-63835 ELBOW, 45 Degree
    ELBOW, 45 Degree
  • 13
    22-47629 ELBOW, 90 Degree
    ELBOW, 90 Degree
  • 14
    22-88517 FITTING, Reducing
    FITTING, Reducing
  • 15
    16-97477A3 STUD KIT
    STUD KIT
  • 16
    63832A1 COOLER
    COOLER
  • 17
    56328A1 BRACKET (SHORT)
    BRACKET (SHORT)
  • 18
    63820T BRACKET (LONG)
    BRACKET (LONG)
  • 19
    10-60300 SCREW, (.250-28 x .750)
    SCREW, (.250-28 x .750)
  • 20
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
  • 21
    11-30506 NUT, (.250-28)
    NUT, (.250-28)
  • 22
    93141A7 BRACKET ASSEMBLY
    (Design I)
    BRACKET ASSEMBLY
    (Design I)
  • 23
    12-20533 WASHER
    (Design I)
    WASHER
    (Design I)
  • 24
    11-8267089 NUT, (.250-28)
    (Design I)
    NUT, (.250-28)
    (Design I)
  • 25
    43325 LEVER
    LEVER
  • 26
    12-20722 WASHER, (.328 x .625 x .060)
    WASHER, (.328 x .625 x .060)
  • 27
    13-26993 LOCKWASHER, (.312)
    LOCKWASHER, (.312)
  • 28
    11-22053 NUT, (.312-24)
    NUT, (.312-24)
  • 29
    12-36533 WASHER, (.328 x .562 x .0312) Copper
    WASHER, (.328 x .562 x .0312) Copper
  • 30
    47613 SWITCH
    SWITCH
  • 31
    18351A1 BRACKET ASSEMBLY
    (Design II)
    BRACKET ASSEMBLY
    (Design II)
  • 32
    16-97477A3 STUD KIT
    (Design II)
    STUD KIT
    (Design II)
  • 33
    10-54615 SCREW, (.250-20 x .625)
    (Design II)
    SCREW, (.250-20 x .625)
    (Design II)
  • 34
    13-26992 LOCKWASHER, (.250) Stainless Steel
    (Design II)
    LOCKWASHER, (.250) Stainless Steel
    (Design II)
