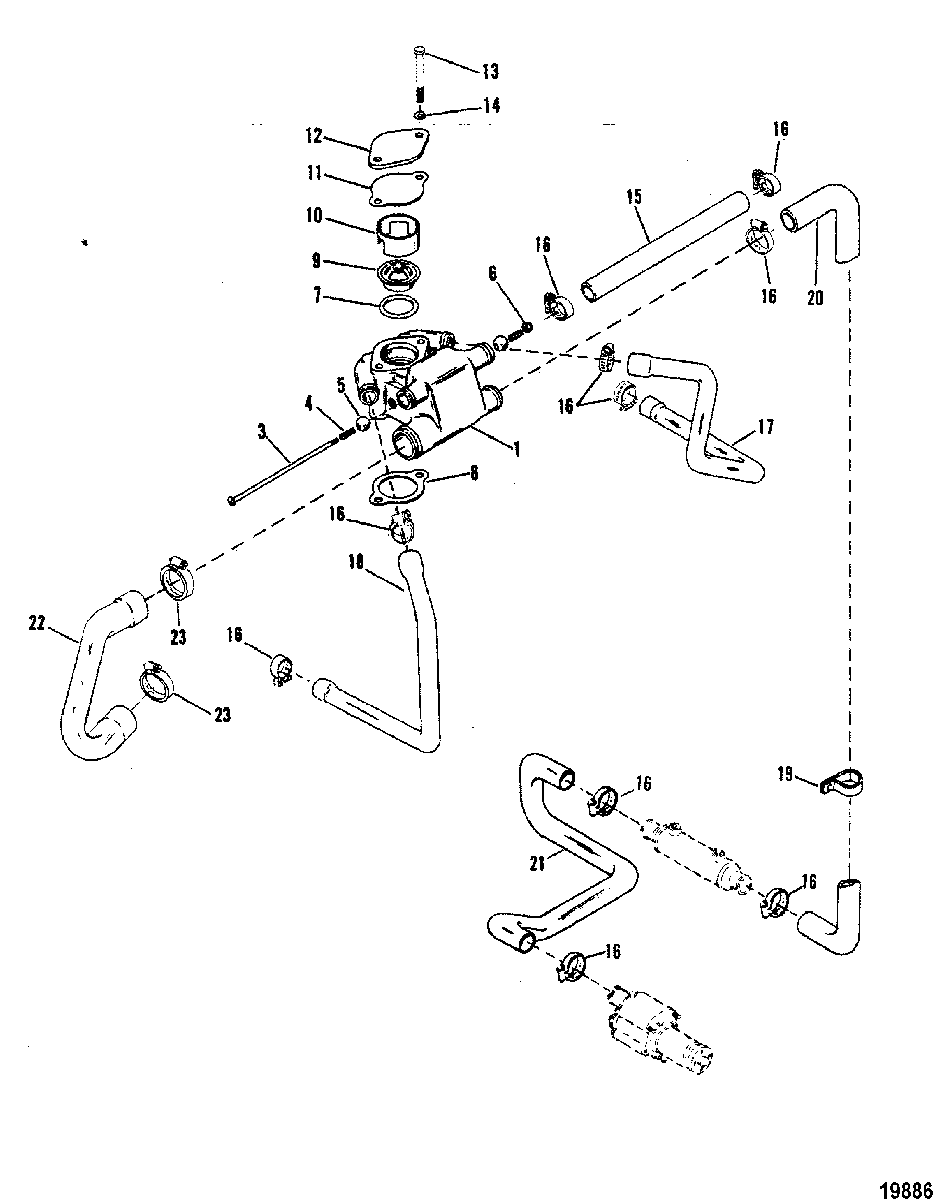

Thermostat Housing(Standard Cooling)(Design II) для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151

  • №
    Артикул
    Название
  • 1
    16413A3 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 3
    10-17989 SCREW, (#10-32 x 8.600)
    SCREW, (#10-32 x 8.600)
  • 4
    24-75533 SPRING
    SPRING
  • 5
    30-98475 BALL, Nylon
    BALL, Nylon
  • 6
    11-826709106 NUT, (#10-32)
    NUT, (#10-32)
  • 7
    25-30224 O-RING, (1.859 x .139)
    O-RING, (1.859 x .139)
  • 8
    27-530451 GASKET, THERMOSTAT HOUSING
    GASKET, THERMOSTAT HOUSING
  • 9
    8M0089715 THERMOSTAT, (140 Degrees) (143 DEGREE)
    THERMOSTAT, (140 Degrees) (143 DEGREE)
  • 10
    23-806922 SLEEVE, THERMOSTAT
    SLEEVE, THERMOSTAT
  • 11
    27-331792 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 12
    17494A1 COVER KIT, THERMOSTAT
    COVER KIT, THERMOSTAT
  • 13
    10-60410 SCREW, (.375-16 x 4.250), THERMOSTAT HOUSING
    SCREW, (.375-16 x 4.250), THERMOSTAT HOUSING
  • 14
    13-35048 LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
    LOCKWASHER, (.375), THERMOSTAT HOUSING SCREW
  • 15
    32-8M0062614 HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS
    HOSE, (48.00 Inches Bulk), TEE TO EXHAUST ELBOWS
  • 15
    32-969151 HOSE, TEE TO EXHAUST ELBOWS (V-DRIVE)
    HOSE, TEE TO EXHAUST ELBOWS (V-DRIVE)
  • 16
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • 17
    32-160211 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (PORT)
  • 18
    32-871171 HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD)
    HOSE, THERMOSTAT COVER TO EXHAUST MANIFOLD (STARBOARD)
  • 19
    54-47715 CLIP, HOSE ATTACHING
    CLIP, HOSE ATTACHING
  • 20
    32-16012 HOSE, THERMOSTAT HOUSING TO OIL COOLER
    HOSE, THERMOSTAT HOUSING TO OIL COOLER
  • 21
    32-88795 HOSE, WATER PUMP TO OIL COOLER
    HOSE, WATER PUMP TO OIL COOLER
  • 21
    32-88795 HOSE, WATER PUMP TO OIL COOLER (V-DRIVE)
    HOSE, WATER PUMP TO OIL COOLER (V-DRIVE)
  • 22
    32-861590A05 HOSE, Molded, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, Molded, THERMOSTAT HOUSING TO WATER PUMP
  • 23
    54-815504228 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
  • -
    78094A2 CLOSED COOLING SYSTEM
    (Rear Mounted)
    CLOSED COOLING SYSTEM
    (Rear Mounted)
  • -
    61937A6 INSTALLATION KIT
    (In-Line Transmission)
    INSTALLATION KIT
    (In-Line Transmission)
  • -
    61937A7 INSTALLATION KIT
    (V-Drive Transmission)
    INSTALLATION KIT
    (V-Drive Transmission)
  • -
    27-75611A88 GASKET SET, Engine
    GASKET SET, Engine
