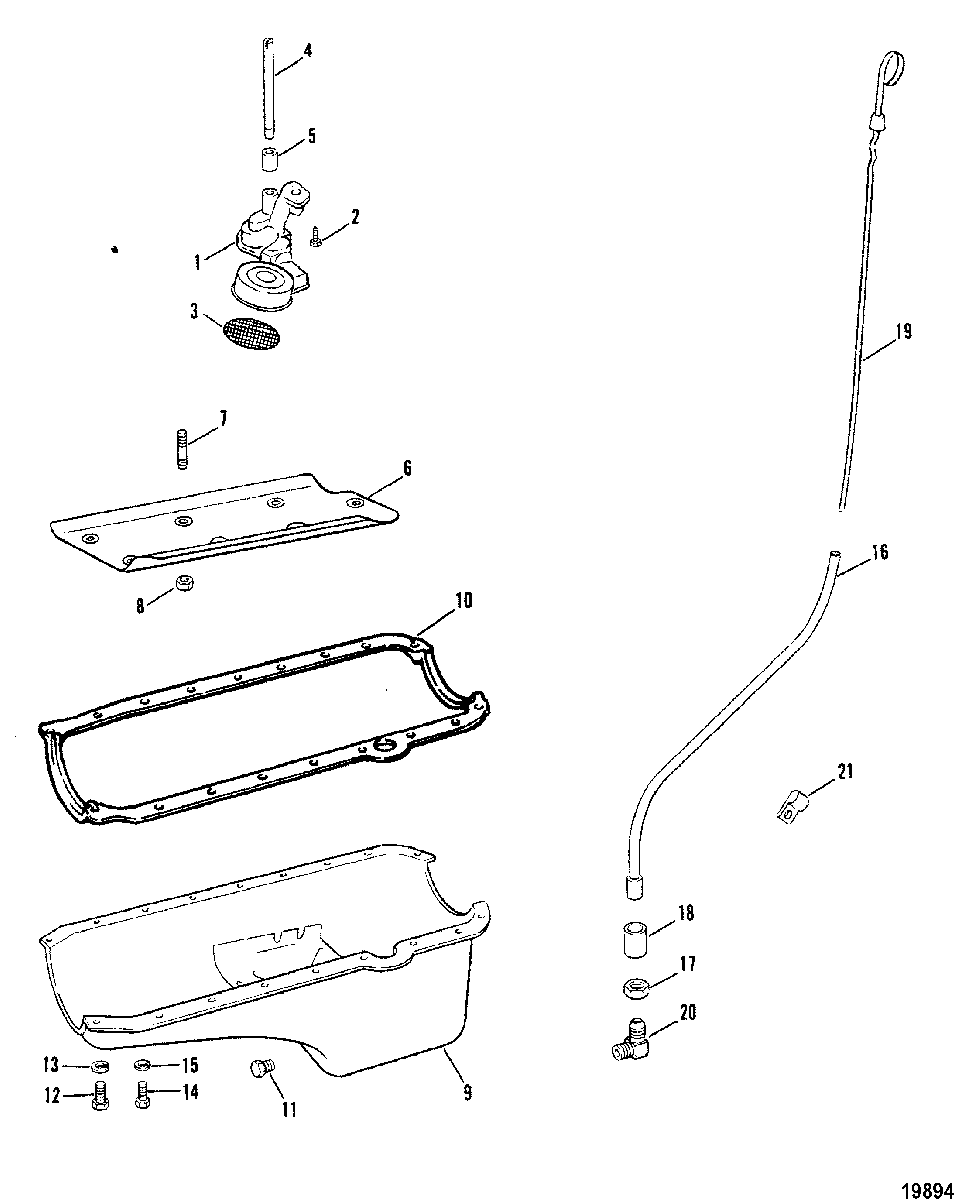

Oil Pan and Oil Pump для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151

  • №
    Артикул
    Название
  • 1
    17617 PUMP, Oil
    PUMP, Oil
  • 2
    10-17346 SCREW, OIL PUMP TO CYLINDER BLOCK
    SCREW, OIL PUMP TO CYLINDER BLOCK
  • 3
    35354 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    986021 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    16-54790 STUD, OIL PAN BAFFLE
    STUD, OIL PAN BAFFLE
  • 8
    11-37500 NUT, (3/8-16), OIL PAN BAFFLE STUD
    NUT, (3/8-16), OIL PAN BAFFLE STUD
  • 9
    805930A1 PAN ASSEMBLY, Oil
    PAN ASSEMBLY, Oil
  • 10
    27-138651 GASKET, OIL PAN
    GASKET, OIL PAN
  • 11
    22-32803 PLUG, PIPE - OIL PAN DRAIN
    PLUG, PIPE - OIL PAN DRAIN
  • 12
    10-54523 SCREW, (.312-18 x 1.00), OIL PAN
    SCREW, (.312-18 x 1.00), OIL PAN
  • 13
    13-26993 LOCKWASHER, (.312), OIL PAN SCREW
    LOCKWASHER, (.312), OIL PAN SCREW
  • 14
    10-55715 SCREW, (.250-20 x .880), OIL PAN
    SCREW, (.250-20 x .880), OIL PAN
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 16
    86890A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 17
    11-47626 NUT, OIL LEVEL GAUGE TUBE
    NUT, OIL LEVEL GAUGE TUBE
  • 18
    22-78039 COUPLING, OIL LEVEL GAUGE TUBE
    COUPLING, OIL LEVEL GAUGE TUBE
  • 19
    86194220 GAUGE, OIL LEVEL-DIPSTICK
    GAUGE, OIL LEVEL-DIPSTICK
  • 19
    86194219 GAUGE, OIL LEVEL-DIPSTICK (HORIZONTAL MOUNTING)
    GAUGE, OIL LEVEL-DIPSTICK (HORIZONTAL MOUNTING)
  • 20
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
    ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
  • 21
    54-92338 CLIP, OIL LEVEL TUBE
    CLIP, OIL LEVEL TUBE
  • -
    27-75611A88 GASKET SET, Engine
    GASKET SET, Engine
