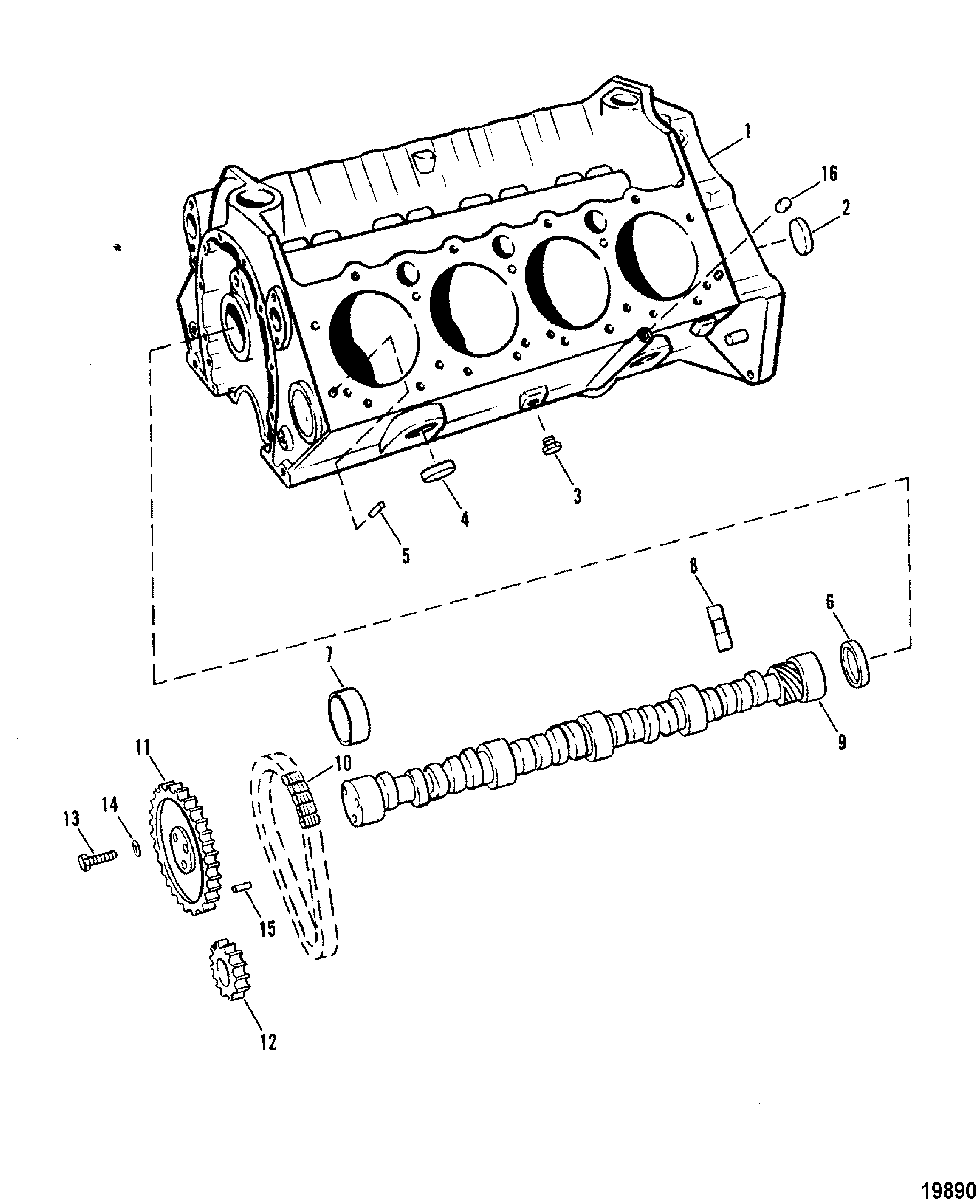

Cylinder Block and Camshaft для Mercruiser - 230 MIE (4 BBL.) GM 305 V-8 1987-1995 0B522506 THRU 0B788151

№

Артикул

Название
1

841-9713 CYLINDER BLOCK ASSEMBLY
(230-5.0L)

CYLINDER BLOCK ASSEMBLY
(230-5.0L)
1

841-9717 CYLINDER BLOCK ASSEMBLY
(260-5.7L)

CYLINDER BLOCK ASSEMBLY
(260-5.7L)
2

22-32561 PLUG, (.250-18 x .41), EXPANSION

PLUG, (.250-18 x .41), EXPANSION
3

22-16951Q1 COCK ASSEMBLY, CYLINDER BLOCK

COCK ASSEMBLY, CYLINDER BLOCK
4

19-34270 EXPANSION PLUG, (1.625), EXPANSION - CYLINDER BLOCK

EXPANSION PLUG, (1.625), EXPANSION - CYLINDER BLOCK
5

17-35465 PIN, Dowel (.312), BLOCK TO HEAD

PIN, Dowel (.312), BLOCK TO HEAD
6

22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE

PLUG, EXPANSION - CAMSHAFT BEARING HOLE
7

23-85674 BEARING SET, CAMSHAFT (SET)

BEARING SET, CAMSHAFT (SET)
8

72638 LIFTER, HYDRAULIC VALVE - TAPPET

LIFTER, HYDRAULIC VALVE - TAPPET
9

431-5943 CAMSHAFT (L.H. ROTATION)

CAMSHAFT (L.H. ROTATION)
9

431-884035 CAMSHAFT (R.H. ROTATION)

CAMSHAFT (R.H. ROTATION)
10

17161T CHAIN, Timing, CAMSHAFT TIMING (L.H. ROTATION)

CHAIN, Timing, CAMSHAFT TIMING (L.H. ROTATION)
11

43-17159 SPROCKET, CAMSHAFT (L.H. ROTATION)

SPROCKET, CAMSHAFT (L.H. ROTATION)
11/12

43-14324 GEAR SET, CAMSHAFT/CRANKSHAFT (R.H. ROTATION)

GEAR SET, CAMSHAFT/CRANKSHAFT (R.H. ROTATION)
12

43-17160 SPROCKET, CRANKSHAFT TIMING (L.H. ROTATION)

SPROCKET, CRANKSHAFT TIMING (L.H. ROTATION)
13

10-34505 SCREW, (.312-18 x .875), CAMSHAFT TIMING SPROCKETS (3/4")

SCREW, (.312-18 x .875), CAMSHAFT TIMING SPROCKETS (3/4")
14

12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT

WASHER, CAMSHAFT TIMING SPROCKET BOLT
15

17-843378 PIN, Dowel (1/4 In. Diameter), CAMSHAFT SPROCKET (1/4" DIA.)

PIN, Dowel (1/4 In. Diameter), CAMSHAFT SPROCKET (1/4" DIA.)
16

19-93654 PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK

PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK
