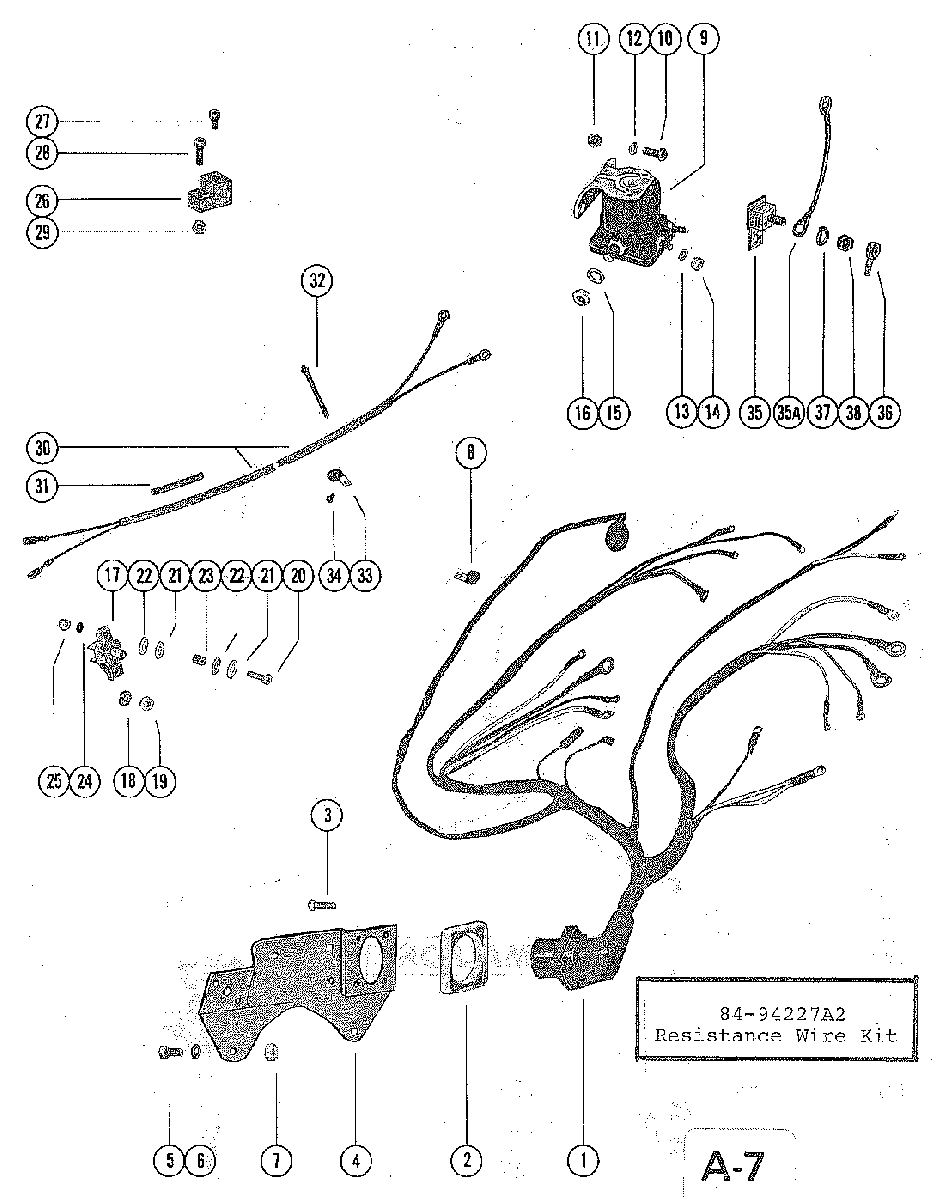

WIRING HARNESS, CIRCUIT BREAKER AND STARTER SOLENOID для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008

  • №
    Артикул
    Название
  • 1
    84-86676A2 WIRING HARNESS (MCM 228)
    WIRING HARNESS (MCM 228)
  • 1
    84-70959A2 WIRING HARNESS (MCM 229 TR AND MIE 228)
    WIRING HARNESS (MCM 229 TR AND MIE 228)
  • 2
    26079A2 PLATE, WIRING HARNESS TO MOUNTING BRACKET
    PLATE, WIRING HARNESS TO MOUNTING BRACKET
  • 3
    10-46718 SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
    SCREW, WIRING HARNESS PLATE TO MOUNTING BRACKET (3/4")
  • 4
    77440A1 BRACKET, MOUNTING MCM 228
    BRACKET, MOUNTING MCM 228
  • 5
    10-34354 SCREW, MOUNTING BRACKET ATTACHING (1 1/2") MCM 228
    SCREW, MOUNTING BRACKET ATTACHING (1 1/2") MCM 228
  • 4
    87090T BRACKET MOUNTING
    MCM 228 TR AND MIE 228
    BRACKET MOUNTING
    MCM 228 TR AND MIE 228
  • 5
    10-805159 SCREW, MOUNTING BRACKET ATTACHING (1 1/4")
    MCM 228 TR AND MIE 228
    SCREW, MOUNTING BRACKET ATTACHING (1 1/4")
    MCM 228 TR AND MIE 228
  • 6
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    MCM 228 TR AND MIE 228
    LOCKWASHER, MOUNTING BRACKET SCREW
    MCM 228 TR AND MIE 228
  • 7
    11-20696 NUT< MOUNTING BRACKET SCREW
    MCM 228 TR AND MIE 228
    NUT< MOUNTING BRACKET SCREW
    MCM 228 TR AND MIE 228
  • 8
    64884 TAB, WIRING HARNESS
    TAB, WIRING HARNESS
  • 9
    89-76416A1 STARTER SOLENOID MCM 228
    STARTER SOLENOID MCM 228
  • 10
    10-69028 SCREW, STARTER SOLENOID TO BRACKET (3/4") MCM 228
    SCREW, STARTER SOLENOID TO BRACKET (3/4") MCM 228
  • 11
    11-8267089 NUT, STARTER SOLENOID SCREW MCM 228
    NUT, STARTER SOLENOID SCREW MCM 228
  • 9
    89-76416A1 STARTER SOLENOID
    MCM 228 TR AND MIE 228
    STARTER SOLENOID
    MCM 228 TR AND MIE 228
  • 10
    10-69054 SCREW, STARTER SOLENOID TO BRACKET (5/8")
    MCM 228 TR AND MIE 228
    SCREW, STARTER SOLENOID TO BRACKET (5/8")
    MCM 228 TR AND MIE 228
  • 12
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    MCM 228 TR AND MIE 228
    LOCKWASHER, STARTER SOLENOID SCREW
    MCM 228 TR AND MIE 228
  • 13
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 14
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 15
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 16
    11-68292 NUT, STARTER SOLENOID TERMINAL (5/16")
    NUT, STARTER SOLENOID TERMINAL (5/16")
  • 17
    88-11178A01 CIRCUIT BRADKER (40 AMP)
    SERIAL 00000000-04929029
    CIRCUIT BRADKER (40 AMP)
    SERIAL 00000000-04929029
  • 18
    13-26996 LOCKWASHER, CIRCUIT BREAKER TERMINAL
    SERIAL 00000000-04929029
    LOCKWASHER, CIRCUIT BREAKER TERMINAL
    SERIAL 00000000-04929029
  • 19
    11-68219 NUT, CIRCUIT BREAKER TERMINAL
    SERIAL 00000000-04929029
    NUT, CIRCUIT BREAKER TERMINAL
    SERIAL 00000000-04929029
  • 17
    88-11178A01 CIRCUIT BREAKER (50 AMP)
    SERIAL 04929030-09999999
    CIRCUIT BREAKER (50 AMP)
    SERIAL 04929030-09999999
  • 18
    12-30164 WASHER, CIRCUIT BREAKER TERMINAL
    SERIAL 04929030-09999999
    WASHER, CIRCUIT BREAKER TERMINAL
    SERIAL 04929030-09999999
  • 19
    11-46438 NUT, CIRCUIT BREAKER TERMINAL
    SERIAL 04929030-09999999
    NUT, CIRCUIT BREAKER TERMINAL
    SERIAL 04929030-09999999
  • 20
    10-24637 SCREW, CIRCUIT BREAKER TO BRACKET (7/8")-MCM 228
    SCREW, CIRCUIT BREAKER TO BRACKET (7/8")-MCM 228
  • 20
    10-47618 SCREW, CIRCUIT BREAKER TO BRACKET (1")
    MCM 228 TR AND MIE 228
    SCREW, CIRCUIT BREAKER TO BRACKET (1")
    MCM 228 TR AND MIE 228
  • 21
    25-61999 GROMMET, CIRCUIT BREAKER SCREW
    MCM 228 TR AND MIE 228
    GROMMET, CIRCUIT BREAKER SCREW
    MCM 228 TR AND MIE 228
  • 22
    12-47960 WASHER, CORCIOT BREALER SCREW
    MCM 228 TR AND MIE 228
    WASHER, CORCIOT BREALER SCREW
    MCM 228 TR AND MIE 228
  • 23
    23-61998 SPACER, CIRCUIT BREAKER GROMMET
    MCM 228 TR AND MIE 228
    SPACER, CIRCUIT BREAKER GROMMET
    MCM 228 TR AND MIE 228
  • 24
    12-30164 WASHER, CIRCUIT BREAKER SCREW
    WASHER, CIRCUIT BREAKER SCREW
  • 25
    11-46438 NUT, CIRCUIT BREAKER SCREW
    NUT, CIRCUIT BREAKER SCREW
  • 26
    86-45915 TERMINAL BLOCK, ROTARY TRIM SENDER MCM 228
    TERMINAL BLOCK, ROTARY TRIM SENDER MCM 228
  • 27
    10-62568 SCREW, ROTARTY TRIM SENDER LEADS MCM 228
    SCREW, ROTARTY TRIM SENDER LEADS MCM 228
  • 28
    10-32228 SCREW, TERMINAL BLOCK (5/8") MCM 228
    SCREW, TERMINAL BLOCK (5/8") MCM 228
  • 29
    11-46438 NUT, TERMINAL BLOCK SCREW MCM 228
    NUT, TERMINAL BLOCK SCREW MCM 228
  • 30
    84-78581A1 WIRING HARNESS, ALTERNATOR (MCM 228)
    SERIAL 04929030-09999999
    WIRING HARNESS, ALTERNATOR (MCM 228)
    SERIAL 04929030-09999999
  • 30
    84-78581A1 WIRING HARNESS, ALTERNATOR (MCM 228 TR AND MIE 228)
    SERIAL 04929030-09999999
    WIRING HARNESS, ALTERNATOR (MCM 228 TR AND MIE 228)
    SERIAL 04929030-09999999
  • 31
    5790811 SLEEVE, WIRING HARNESS
    SERIAL 04929030-09999999
    SLEEVE, WIRING HARNESS
    SERIAL 04929030-09999999
  • 32
    61990 STA-STRAP, WIRING HARNESS
    SERIAL 04929030-09999999
    STA-STRAP, WIRING HARNESS
    SERIAL 04929030-09999999
  • 33
    54-78945 "J" CLIP, IGNITION LEADS
    SERIAL 04929030-09999999
    "J" CLIP, IGNITION LEADS
    SERIAL 04929030-09999999
  • 33
    54-78944 "J" CLIP, MAIN HARNESS LEADS
    SERIAL 04929030-09999999
    "J" CLIP, MAIN HARNESS LEADS
    SERIAL 04929030-09999999
  • 33
    54-54178 "J" CLIP, TEMPERATURE SENDER LEADS
    SERIAL 04929030-09999999
    "J" CLIP, TEMPERATURE SENDER LEADS
    SERIAL 04929030-09999999
  • 34
    10-98259 SCREW, "J" CLIP ATTACHING (1/2")
    SERIAL 04929030-09999999
    SCREW, "J" CLIP ATTACHING (1/2")
    SERIAL 04929030-09999999
  • 35
    88-79023T56 FUSE ASSEMBLY, 55 AMP
    SERIAL 04929030-05064352
    FUSE ASSEMBLY, 55 AMP
    SERIAL 04929030-05064352
  • 35
    88-79023T90 FUSE ASSEMBLY, 90 AMP
    SERIAL 04929030-09999999
    FUSE ASSEMBLY, 90 AMP
    SERIAL 04929030-09999999
  • 35A
    84-79139A3 JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER (MCM 228)
    SERIAL 04929030-09999999
    JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER (MCM 228)
    SERIAL 04929030-09999999
  • 35A
    84-79139A7 JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER (MIE 228)
    SERIAL 04929030-09999999
    JUMPER WIRE, 90 AMP FUSE TO CIRCUIT BREAKER (MIE 228)
    SERIAL 04929030-09999999
  • 36
    85-79695T BOOT, INSULATOR - FUSE
    SERIAL 04929030-09999999
    BOOT, INSULATOR - FUSE
    SERIAL 04929030-09999999
  • 37
    13-24669 LOCKWASHER, FUSE STUD NUT
    SERIAL 04929030-09999999
    LOCKWASHER, FUSE STUD NUT
    SERIAL 04929030-09999999
  • 38
    11-21825 NUT, FUSE STUD
    SERIAL 04929030-09999999
    NUT, FUSE STUD
    SERIAL 04929030-09999999
