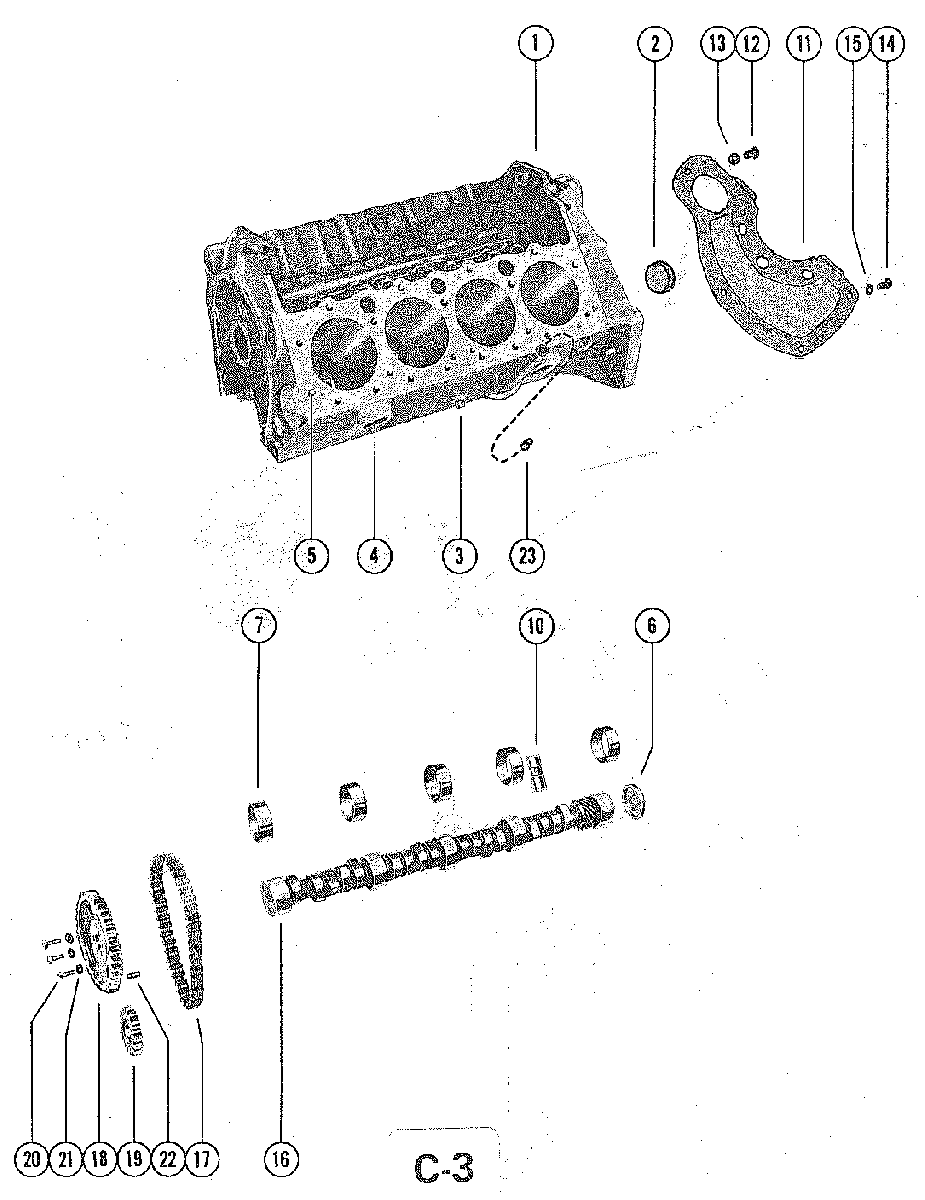

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008

  • №
    Артикул
    Название
  • 1
    841-6535 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    19-35308 PLUG, EXPANSION - CYLINDER BLOCK (1 1/4")
    PLUG, EXPANSION - CYLINDER BLOCK (1 1/4")
  • 3
    22-16951Q1 DRAIN COCK, CYLINDER BLOCK
    DRAIN COCK, CYLINDER BLOCK
  • 4
    19-34270 PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
    PLUG, EXPANSION - CYLINDER BLOCK (1 5/8" DIA.)
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4" DIA.)
    PLUG, PIPE - CYLINDER BLOCK (1/4" DIA.)
  • 5
    17-35465 PIN, DOWEL - CYLINDER BLOCK TO CYL. HEAD (5/16" DIA.)
    PIN, DOWEL - CYLINDER BLOCK TO CYL. HEAD (5/16" DIA.)
  • 6
    22-72640 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-85674 BEARING UNIT, CAMSHAFT (SET)
    BEARING UNIT, CAMSHAFT (SET)
  • 10
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 11
    71995 COVER, TRANSMISSION HOUSING
    MCM 228 AND MCM 228 TR
    COVER, TRANSMISSION HOUSING
    MCM 228 AND MCM 228 TR
  • 12
    10-98253 SCREW, COVER ATTACHING (1/2")
    MCM 228 AND MCM 228 TR
    SCREW, COVER ATTACHING (1/2")
    MCM 228 AND MCM 228 TR
  • 13
    13-26992 LOCKWASHER, COVER SCREW
    MCM 228 AND MCM 228 TR
    LOCKWASHER, COVER SCREW
    MCM 228 AND MCM 228 TR
  • 14
    10-98257 SCREW, COVER ATTACHING (1/2")
    MCM 228 AND MCM 228 TR
    SCREW, COVER ATTACHING (1/2")
    MCM 228 AND MCM 228 TR
  • 15
    13-39107 LOCKWASHER, COVER SCREW
    MCM 228 AND MCM 228 TR
    LOCKWASHER, COVER SCREW
    MCM 228 AND MCM 228 TR
  • 16
    431-5943 CAMSHAFT(STANDARD ROTATION)
    CAMSHAFT(STANDARD ROTATION)
  • 16
    431-884035 CAMSHAFT(OPPOSITE ROTATION)
    CAMSHAFT(OPPOSITE ROTATION)
  • 17
    35378 CHAIN, CAMSHAFT TIMING
    STANDARD ROTATION
    CHAIN, CAMSHAFT TIMING
    STANDARD ROTATION
  • 18
    17161A1 SPROCKET, CAMSHAFT TIMING (44 TEETH)
    STANDARD ROTATION
    SPROCKET, CAMSHAFT TIMING (44 TEETH)
    STANDARD ROTATION
  • 19
    17161A1 SPROCKET, CRANKSHAFT TIMING
    STANDARD ROTATION
    SPROCKET, CRANKSHAFT TIMING
    STANDARD ROTATION
  • 18
    43-14324 GEAR, TIMING - CAMSHAFT
    OPPOSITE ROTATION
    GEAR, TIMING - CAMSHAFT
    OPPOSITE ROTATION
  • 19
    43-14324 GEAR, TIMING - CRANKSHAFT
    OPPOSITE ROTATION
    GEAR, TIMING - CRANKSHAFT
    OPPOSITE ROTATION
  • 20
    10-34505 BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
    BOLT, CAMSHAFT TIMING SPROCKETS (3/4")
  • 21
    12-848136 WASHER, CAMSHAFT TIMING SPROCKET BOLT
    WASHER, CAMSHAFT TIMING SPROCKET BOLT
  • 22
    17-24813 PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4" DIA.)
    PIN, DOWEL - CAMSHAFT TIMING SPROCKET (1/4" DIA.)
  • 23
    19-71900 PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK(MIE 228)
    PLUG, OIL LEVEL GAUGE HOLE - CYLINDER BLOCK(MIE 228)
