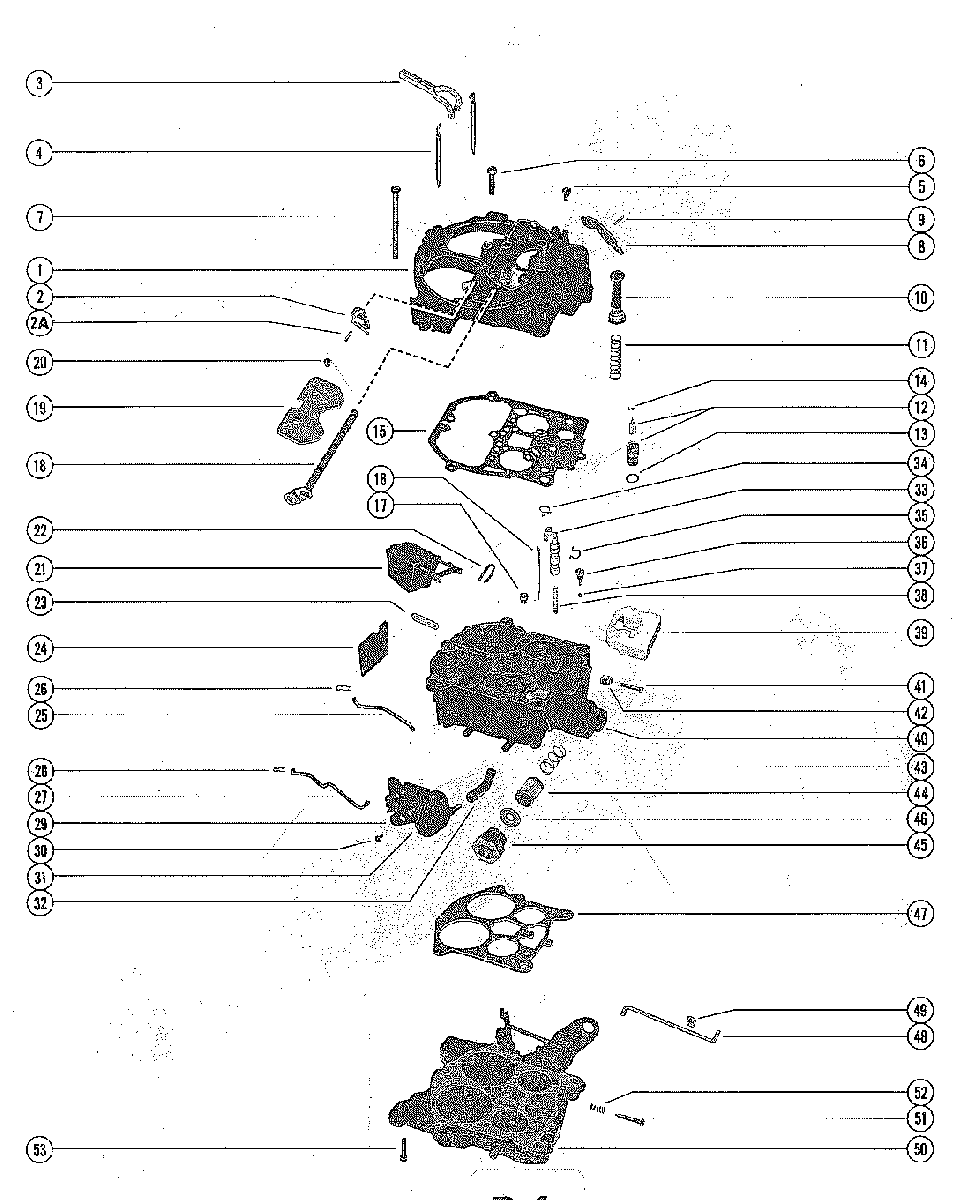

CARBURETOR ASSEMBLY, COMPLETE для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008

  • №
    Артикул
    Название
  • -
    1347-804623R02 CARBURETOR ASSEMBLY, COMPLETE (MCM 228)
    CARBURETOR ASSEMBLY, COMPLETE (MCM 228)
  • -
    1347-804623R02 CARBURETOR ASSEMBLY, COMPLETE (MCM 228 TR AND MIE 228)
    CARBURETOR ASSEMBLY, COMPLETE (MCM 228 TR AND MIE 228)
  • 1
    N.S.S. AIR HORN ASSEMBLY
    AIR HORN ASSEMBLY
  • 2
    N.S.S. LEVER, AIR VALVE LOCKOUT (ROCHESTER #7048169)
    LEVER, AIR VALVE LOCKOUT (ROCHESTER #7048169)
  • 2A
    90-8M0143356 ROLL PIN, LOCKOUT LEVER
    ROLL PIN, LOCKOUT LEVER
  • 3
    N.S.S. HOLDER KIT, SECONDARY METERING ROD (ROCHESTER #7034522)
    HOLDER KIT, SECONDARY METERING ROD (ROCHESTER #7034522)
  • 4
    N.S.S. METERING ROD, SECONDARY (MCM 228)-ROCHESTER #0748092)
    METERING ROD, SECONDARY (MCM 228)-ROCHESTER #0748092)
  • 4
    N.S.S. METERING ROD, SECONDARY (MCM 228 TR AND MIE 228)
    ROCHESTER #17053531
    METERING ROD, SECONDARY (MCM 228 TR AND MIE 228)
    ROCHESTER #17053531
  • 5
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (3/9")-ROCHESTER #7031105
    SCREW, AIR HORN TO FLOAT BOWL (3/9")-ROCHESTER #7031105
  • 6
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (1")-ROCHESTER #7014699
    SCREW, AIR HORN TO FLOAT BOWL (1")-ROCHESTER #7014699
  • 7
    N.S.S. SCREW, AIR HORN TO FLOAT BOWL (3")-ROCHESTER #7029912
    SCREW, AIR HORN TO FLOAT BOWL (3")-ROCHESTER #7029912
  • 8
    N.S.S. LEVER, ACTUATING-PUMP (ROCHESTER #7048169)
    LEVER, ACTUATING-PUMP (ROCHESTER #7048169)
  • 9
    90-8M0143356 ROLL PIN, HINGE - PUMP LEVER
    ROLL PIN, HINGE - PUMP LEVER
  • 10
    90-8M0143356 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 11
    90-8M0143356 SPRING, PUMP RETURN
    SPRING, PUMP RETURN
  • 12
    90-8M0143356 NEEDLE AND SEAT ASSEMBLY
    NEEDLE AND SEAT ASSEMBLY
  • 13
    90-8M0143356 GASKET, NEEDLE AND SEAT
    GASKET, NEEDLE AND SEAT
  • 14
    90-8M0143356 PULL CLIP, FLOAT NEEDLE
    PULL CLIP, FLOAT NEEDLE
  • 15
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 16
    90-8M0143356 METERING ROD, PRIMARY
    METERING ROD, PRIMARY
  • 17
    90-8M0143356 JET, PRIMARY
    JET, PRIMARY
  • 18
    N.S.S. CHOKE SHAFT AND LEVER ASSEMBLY (ROCHESTER #17053531)
    CHOKE SHAFT AND LEVER ASSEMBLY (ROCHESTER #17053531)
  • 19
    N.S.S. VALVE, CHOKE - CHOKE SHAFT (ROCHESTER #7036021)
    VALVE, CHOKE - CHOKE SHAFT (ROCHESTER #7036021)
  • 20
    N.S.S. SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866)
    SCREW, CHOKE VALVE TO CHOKE SHAFT (ROCHESTER #7029866)
  • 21
    1397-3327 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 22
    17-48140 PIN HINGE - FLOAT
    PIN HINGE - FLOAT
  • 23
    N.S.S. LEVER, INTERMEDIATE CHOKE (ROCHESTER #7031231)
    LEVER, INTERMEDIATE CHOKE (ROCHESTER #7031231)
  • 24
    N.S.S. BAFFLE, FLOAT BOWL (ROCHESTER #7031365)
    BAFFLE, FLOAT BOWL (ROCHESTER #7031365)
  • 25
    N.S.S. ROD, CHOKE (ROCHESTER #7031394)
    ROD, CHOKE (ROCHESTER #7031394)
  • 26
    90-8M0143356 CLIP, CHOKE ROD
    CLIP, CHOKE ROD
  • 27
    N.S.S. ROD, VACUUM CONTROL (ROCHESTER #7038167)
    ROD, VACUUM CONTROL (ROCHESTER #7038167)
  • 28
    90-8M0143356 CLIP, VACCUUM CONTROL ROD
    CLIP, VACCUUM CONTROL ROD
  • 29
    N.S.S. BRACKET ASSEMBLY, VACUUM CONTROL
    BRACKET ASSEMBLY, VACUUM CONTROL
  • 30
    N.S.S. SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL
    ROCHESTER #7031925
    SCREW, VACUUM CONTROL BRACKET TO FLOAT BOWL
    ROCHESTER #7031925
  • 31
    1397-3317 CONTROL ASSEMBLY, VACUUM
    CONTROL ASSEMBLY, VACUUM
  • 32
    N.S.S. HOSE, VACUUM (ROCHESTER #7026339)
    HOSE, VACUUM (ROCHESTER #7026339)
  • 33
    N.S.S. POWER PISTON ASSEMBLY (ROCHESTER #7034637)
    POWER PISTON ASSEMBLY (ROCHESTER #7034637)
  • 34
    N.S.S. SPRING, METERING ROD - PRIMARY (ROCHESTER #7029862)
    SPRING, METERING ROD - PRIMARY (ROCHESTER #7029862)
  • 35
    N.S.S. REATINER, POWER PISTON (ROCHESTER #7034339)
    REATINER, POWER PISTON (ROCHESTER #7034339)
  • 36
    N.S.S. RETAINER, PUMP DISCHARGE BALL (ROCHESTER #7029849)
    RETAINER, PUMP DISCHARGE BALL (ROCHESTER #7029849)
  • 37
    90-8M0143356 BALL, PUMP DISCHARGE
    BALL, PUMP DISCHARGE
  • 38
    N.S.S. SPRING, POWER PISTON (ROCHESTER #7029529)
    SPRING, POWER PISTON (ROCHESTER #7029529)
  • 39
    N.S.S. INSERT, FLOAT BOWL (ROCHESTER #7034361)
    INSERT, FLOAT BOWL (ROCHESTER #7034361)
  • 40
    N.S.S. FLOAT BOWL ASSEMBLY(ROCHESTER #7035358)
    FLOAT BOWL ASSEMBLY(ROCHESTER #7035358)
  • 41
    N.S.S. SCREW, IDLE STOP(ROCHESTER #7002121)
    SCREW, IDLE STOP(ROCHESTER #7002121)
  • 42
    N.S.S. SPRING, IDLE STOP SCREW (ROCHESTER #7003176)
    SPRING, IDLE STOP SCREW (ROCHESTER #7003176)
  • 43
    3302-9032 SPRING, FILTER NUT
    SPRING, FILTER NUT
  • 44
    35-53336Q FILTER, FUEL INLET
    FILTER, FUEL INLET
  • 46
    90-8M0143356 GASKET, FILTER NUT
    GASKET, FILTER NUT
  • 47
    90-8M0143356 GASKET, THROTTLE BODY (ROCHESTER #70626138)
    GASKET, THROTTLE BODY (ROCHESTER #70626138)
  • 48
    N.S.S. ROD, PUMP
    ROD, PUMP
  • 49
    90-8M0143356 CLIP, PUMP ROD
    CLIP, PUMP ROD
  • 50
    N.S.S. THROTTLE BODY ASSEMBLY (MCM 228)-ROCHESTER #17058973
    THROTTLE BODY ASSEMBLY (MCM 228)-ROCHESTER #17058973
  • 50
    N.S.S. THROTTLE BODY ASSEMBLY (MCM 228 TR AND MIE 228)
    ROCHESTER #17053531
    THROTTLE BODY ASSEMBLY (MCM 228 TR AND MIE 228)
    ROCHESTER #17053531
  • 51
    90-8M0143356 IDLE NEEDLE, THROTTLE BODY
    IDLE NEEDLE, THROTTLE BODY
  • 52
    24-33050 SPRING, IDLE NEEDLE
    SPRING, IDLE NEEDLE
  • 53
    N.S.S. SCREW, THROTTLE BODY TO FLOAT BOWL (ROCHESTER #7035790)
    SCREW, THROTTLE BODY TO FLOAT BOWL (ROCHESTER #7035790)
  • --
    1397-3315 SPRING AND CAM KIT, AIR VALVE
    SPRING AND CAM KIT, AIR VALVE
  • --
    823426A1 OVERHAUL KIT (SERIAL#5069430 AND BELOW)
    OVERHAUL KIT (SERIAL#5069430 AND BELOW)
  • --
    823426A1 OVERHAUL KIT MCM 228
    SERIAL 05069431-09999999
    OVERHAUL KIT MCM 228
    SERIAL 05069431-09999999
  • --
    823426A1 OVERHAUL KIT (MIE 228)
    SERIAL 05069431-09999999
    OVERHAUL KIT (MIE 228)
    SERIAL 05069431-09999999
  • --
    823426A1 GASKET SET
    GASKET SET
