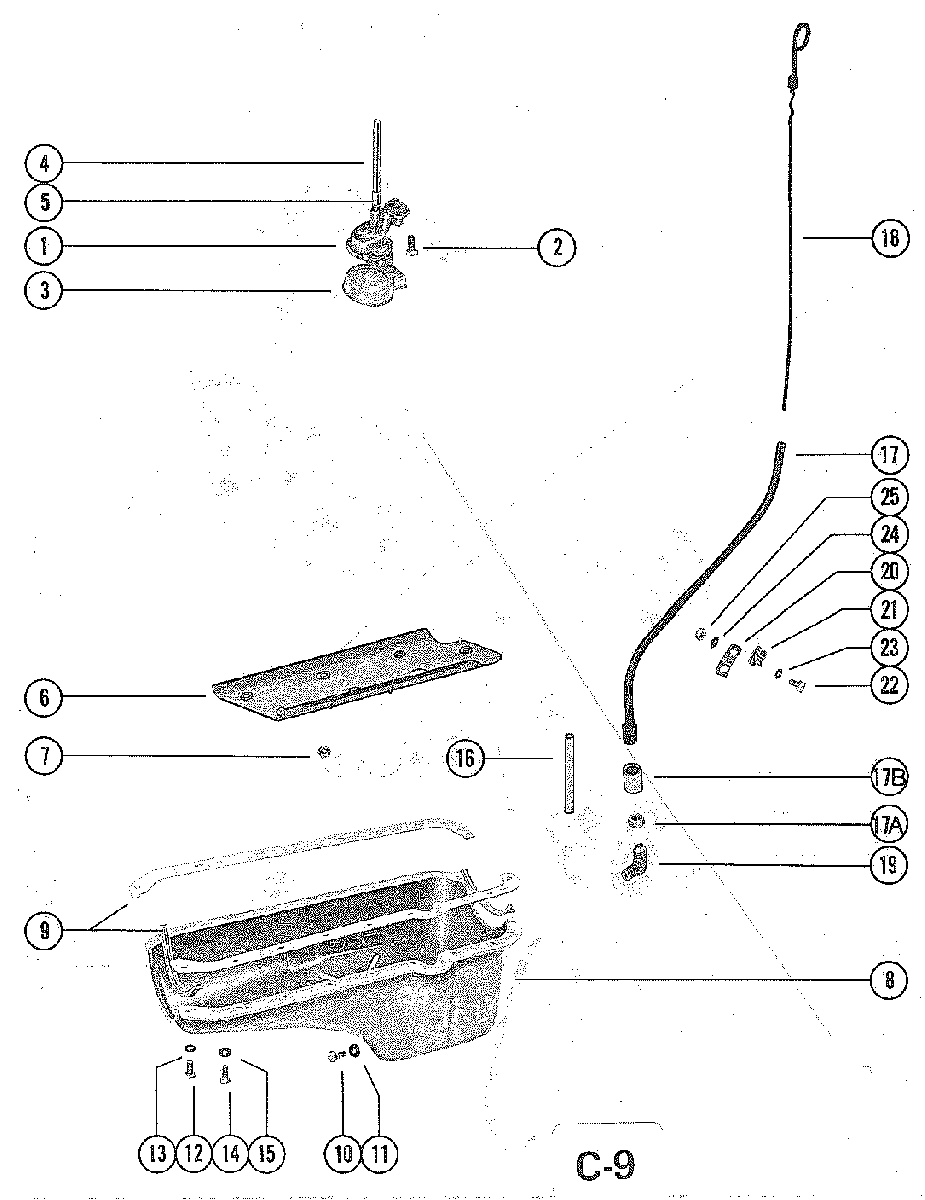

OIL PAN AND OIL PUMP для Mercruiser - 228 (4 BBL.) GM 305 V-8 1977-1978 4765100 THRU 5170008

  • №
    Артикул
    Название
  • 1
    17617 OIL PUMP ASSEMBLY
    OIL PUMP ASSEMBLY
  • 2
    10-48333 BOLT, OIL PUMP TO CYLINDER BLOCK (2")
    BOLT, OIL PUMP TO CYLINDER BLOCK (2")
  • 3
    72645 SCREEN ASSEMBLY, OIL PUMP
    SCREEN ASSEMBLY, OIL PUMP
  • 4
    36184 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 5
    23-36183 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 6
    52198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 7
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD
  • 8
    72643 OIL PAN (MCM 228 AND MCM 228 TR)
    OIL PAN (MCM 228 AND MCM 228 TR)
  • 8
    87758A1 OIL PAN (MIE 228)
    OIL PAN (MIE 228)
  • 9
    27-85817A1 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 10
    10-49956 SCREW, OIL PAN DRAIN
    MCM 228 AND MCM 228 TR
    SCREW, OIL PAN DRAIN
    MCM 228 AND MCM 228 TR
  • 11
    27-8M0077608 GASKET, OIL PAN DRAIN SCREW
    MCM 228 AND MCM 228 TR
    GASKET, OIL PAN DRAIN SCREW
    MCM 228 AND MCM 228 TR
  • 12
    10-72644 SCREW, OIL PAN TO CYL. BLOCK (5?16 - 18 X 7/8")
    MCM 228 AND MCM 228 TR
    SCREW, OIL PAN TO CYL. BLOCK (5?16 - 18 X 7/8")
    MCM 228 AND MCM 228 TR
  • 13
    13-39107 WASHER, OIL PAN SCREW
    MCM 228 AND MCM 228 TR
    WASHER, OIL PAN SCREW
    MCM 228 AND MCM 228 TR
  • 14
    10-8M0040582 SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 X 7/8")
    MCM 228 AND MCM 228 TR
    SCREW, OIL PAN TO CYL. BLOCK (1/4 - 20 X 7/8")
    MCM 228 AND MCM 228 TR
  • 10
    22-36373 PLUG, PIPE - OIL PAN DRAIN
    MIE 228
    PLUG, PIPE - OIL PAN DRAIN
    MIE 228
  • 12
    10-55714 SCREW, OIL PAN TO BLOCK (5?16 - 18 X 7/8")
    MIE 228
    SCREW, OIL PAN TO BLOCK (5?16 - 18 X 7/8")
    MIE 228
  • 13
    13-26992 LOCKWASHER, OIL PAN SCREW
    MIE 228
    LOCKWASHER, OIL PAN SCREW
    MIE 228
  • 14
    10-55715 SCREW, OIL PAN TO BLOCK (1/4 - 20 X 7/8")
    MIE 228
    SCREW, OIL PAN TO BLOCK (1/4 - 20 X 7/8")
    MIE 228
  • 15
    13-26993 LOCKWASHER, OIL PAN SCREW
    MIE 228
    LOCKWASHER, OIL PAN SCREW
    MIE 228
  • 16
    72950 TUBE, OIL LEVEL (LOWER)
    MCM 228 AND MCM228 TR
    TUBE, OIL LEVEL (LOWER)
    MCM 228 AND MCM228 TR
  • 17
    32-72539 TUBE, OIL LEVEL GAUGE (UPPER)
    MCM 228 AND MCM228 TR
    TUBE, OIL LEVEL GAUGE (UPPER)
    MCM 228 AND MCM228 TR
  • 18
    72938 GAUGE, OIL LEVEL (DIPSTICK)
    MCM 228 AND MCM228 TR
    GAUGE, OIL LEVEL (DIPSTICK)
    MCM 228 AND MCM228 TR
  • 17
    86890A2 TUBE, OIL LEVEL GAUGE
    MIE 228
    TUBE, OIL LEVEL GAUGE
    MIE 228
  • 17A
    11-47626 NUT, OIL LEVEL GAUGE TUBE
    MIE 228
    NUT, OIL LEVEL GAUGE TUBE
    MIE 228
  • 17B
    22-78039 COUPLING, OIL LEVEL GAUGE TUBE
    MIE 228
    COUPLING, OIL LEVEL GAUGE TUBE
    MIE 228
  • 18
    86194220 GAUGE, OIL LEVEL (DIPSTICK)
    MIE 228
    GAUGE, OIL LEVEL (DIPSTICK)
    MIE 228
  • 19
    22-47625 ELBOW, OIL LEVEL GAUGE TO OIL PAN
    MIE 228
    ELBOW, OIL LEVEL GAUGE TO OIL PAN
    MIE 228
  • 20
    48133 BRACKET, OIL LEVEL GAUGE
    MIE 228 SERIAL 00000000-04931219
    BRACKET, OIL LEVEL GAUGE
    MIE 228 SERIAL 00000000-04931219
  • 20
    79995 BRACKET, OIL LEVEL GAUGE
    MIE 228 SERIAL 04931220-09999999
    BRACKET, OIL LEVEL GAUGE
    MIE 228 SERIAL 04931220-09999999
  • 21
    54-475451 CLIP, OIL LEVEL TUBE
    MIE 228
    CLIP, OIL LEVEL TUBE
    MIE 228
  • 22
    10-33524 SCREW, CLIP TO BRACKET (5/8")
    MIE 228
    SCREW, CLIP TO BRACKET (5/8")
    MIE 228
  • 23
    13-39107 LOCKWASHER, CLIP SCREW
    MIE 228
    LOCKWASHER, CLIP SCREW
    MIE 228
  • 24
    12-20553 WASHER, OIL LEVEL TUBE BRACKET
    MIE 228
    WASHER, OIL LEVEL TUBE BRACKET
    MIE 228
  • 25
    11-22053 NUT, CLIP SCREW
    MIE 228
    NUT, CLIP SCREW
    MIE 228
