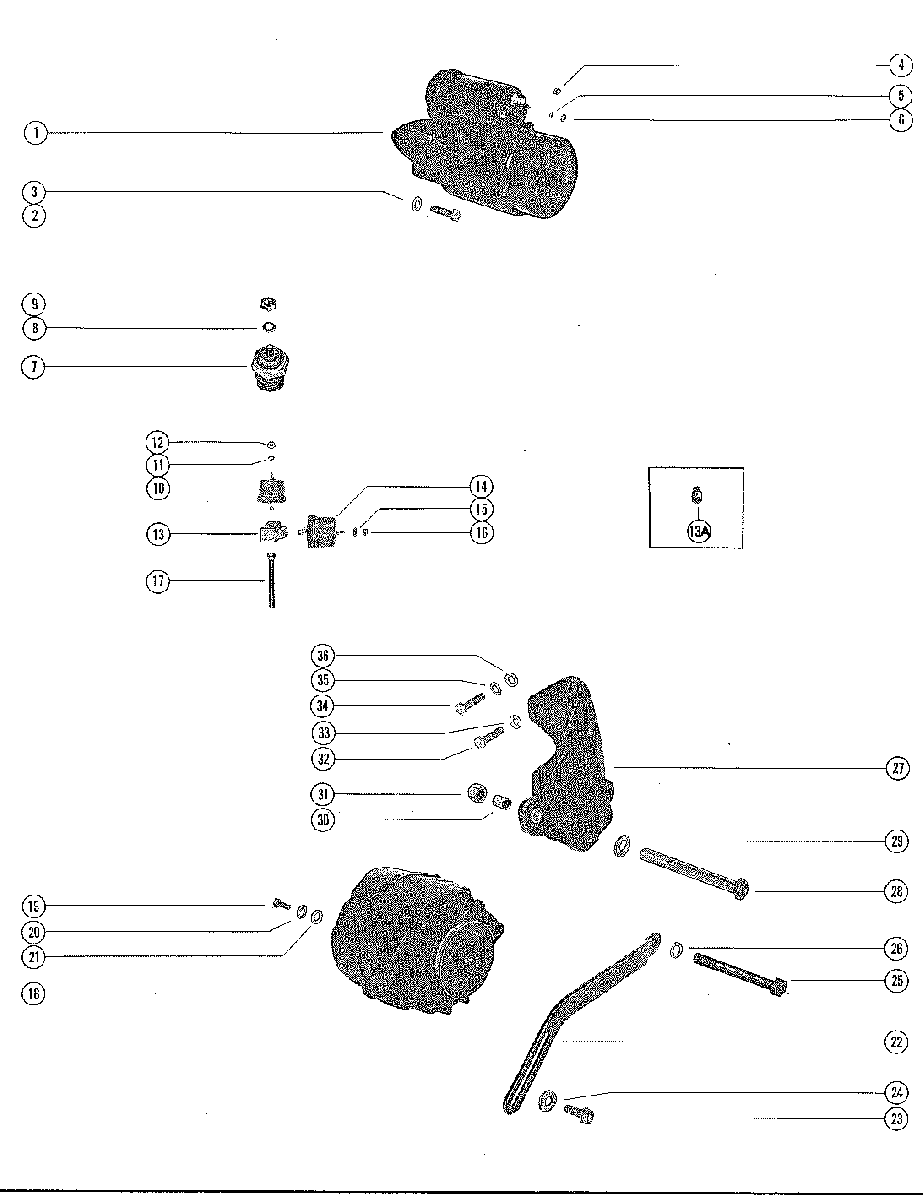

STARTER MOTOR AND ALTERNATOR для Mercruiser - 215 (4 BBL.) FORD 302 V-8 1970-1972 2781153 THRU 3395720

  • №
    Артикул
    Название
  • 1
    50-808011A05 STARTER MOTOR ASSEMBLY (STANDARD ROTATION)
    HYDRAULIC SHIFT AND INBOARD SEE NOTE
    STARTER MOTOR ASSEMBLY (STANDARD ROTATION)
    HYDRAULIC SHIFT AND INBOARD SEE NOTE
  • 1
    50-97499R3 STARTER MOTOR ASSEMBLY (OPPOSITE ROTATION)
    HYDRAULIC SHIFT AND INBOARD SEE NOTE
    STARTER MOTOR ASSEMBLY (OPPOSITE ROTATION)
    HYDRAULIC SHIFT AND INBOARD SEE NOTE
  • 1
    50-12872 STARTER MOTOR ASSEMBLY (STANDARD ROTATION)
    ELECTRIC SHIFT SEE NOTE
    STARTER MOTOR ASSEMBLY (STANDARD ROTATION)
    ELECTRIC SHIFT SEE NOTE
  • 2
    10-47462 SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
    HYDRAULIC SHIFT AND INBOARD
    SCREW, STARTER MOTOR TO CYLINDER BLOCK (1 1/4")
    HYDRAULIC SHIFT AND INBOARD
  • 3
    13-32993 LOCKWASHER, STARTER MOTOR SCREW
    HYDRAULIC SHIFT AND INBOARD
    LOCKWASHER, STARTER MOTOR SCREW
    HYDRAULIC SHIFT AND INBOARD
  • 4
    11-32219 NUT, STARTER TERMINAL (3/8")
    HYDRAULIC SHIFT AND INBOARD
    NUT, STARTER TERMINAL (3/8")
    HYDRAULIC SHIFT AND INBOARD
  • 5
    13-26995 LOCKWASHER, STARTER TERMINAL (#8)
    HYDRAULIC SHIFT AND INBOARD
    LOCKWASHER, STARTER TERMINAL (#8)
    HYDRAULIC SHIFT AND INBOARD
  • 6
    11-26419 NUT, STARTER TERMINAL (#8)
    HYDRAULIC SHIFT AND INBOARD
    NUT, STARTER TERMINAL (#8)
    HYDRAULIC SHIFT AND INBOARD
  • 2
    10-37612 SCREW, STARTER MOTOR TO CYLINDER BLOCK
    ELECTRIC SHIFT
    SCREW, STARTER MOTOR TO CYLINDER BLOCK
    ELECTRIC SHIFT
  • 3
    13-35048 LOCKWASHER, STARTER MOTOR SCREW
    ELECTRIC SHIFT
    LOCKWASHER, STARTER MOTOR SCREW
    ELECTRIC SHIFT
  • 5
    13-26993 LOCKWASHER, STARTER MOTOR TERMINAL
    ELECTRIC SHIFT
    LOCKWASHER, STARTER MOTOR TERMINAL
    ELECTRIC SHIFT
  • 6
    11-21908 NUT, STARTER MOTOR TERMINAL
    ELECTRIC SHIFT
    NUT, STARTER MOTOR TERMINAL
    ELECTRIC SHIFT
  • 7
    806490T WATER TEMPERATURE SENDER ASSEMBLY
    WATER TEMPERATURE SENDER ASSEMBLY
  • 8
    13-26996 LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
    LOCKWASHER, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 9
    11-68219 NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
    NUT, WATER TEMPERATURE SENDER TERMINAL (#10)
  • 10
    8M0068784 OIL PRESSURE SENDER ASSEMBLY
    OIL PRESSURE SENDER ASSEMBLY
  • 11
    13-26996 LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
    LOCKWASHER, OIL PRESSURE SENDER TERMINAL (#10)
  • 12
    11-68219 NUT, OIL PRESSURE SENDER TERMINAL (#10)
    NUT, OIL PRESSURE SENDER TERMINAL (#10)
  • 13A
    22-56770 COUPLING, OIL PRESSURE SENDER (REDUCER)
    SERIAL 00000000-03085036
    COUPLING, OIL PRESSURE SENDER (REDUCER)
    SERIAL 00000000-03085036
  • 13
    22-64485 COUPLING, OIL PRESSURE SENDER SERIAL #AND UP
    SERIAL 03258182-09999999
    COUPLING, OIL PRESSURE SENDER SERIAL #AND UP
    SERIAL 03258182-09999999
  • 14
    87-805605A1 SWITCH, OIL PRESSURE (FOR IGNITION LIGHT)
    SERIAL 03258182-09999999
    SWITCH, OIL PRESSURE (FOR IGNITION LIGHT)
    SERIAL 03258182-09999999
  • 15
    12-20878 WASHER, OIL PRESSURE SWITCH
    SERIAL 03258182-09999999
    WASHER, OIL PRESSURE SWITCH
    SERIAL 03258182-09999999
  • 16
    11-68219 NUT, OIL PRESSURE SWITCH
    SERIAL 03258182-09999999
    NUT, OIL PRESSURE SWITCH
    SERIAL 03258182-09999999
  • 17
    22-54522 NIPPLE, OIL PRESSURE SENDER
    NIPPLE, OIL PRESSURE SENDER
  • 18
    78403A2 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 19
    10-20055 SCREW, WIRING HARNESS TO ALTERNATOR (3/8")
    SCREW, WIRING HARNESS TO ALTERNATOR (3/8")
  • 20
    13-26996 LOCKWASHER, WIRING HARNESS SCREW
    LOCKWASHER, WIRING HARNESS SCREW
  • 21
    12-30164 WASHER, WIRING HARNESS SCREW
    WASHER, WIRING HARNESS SCREW
  • 22
    54479 BRACE, ALTERNATOR ADJUSTING
    BRACE, ALTERNATOR ADJUSTING
  • 23
    10-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
  • 24
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 25
    10-55300 SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4")
    SCREW, ALTERNATOR BRACE TO CYLINDER BLOCK (5 1/4")
  • 26
    13-39107 LOCKWASHER, ALTERNATOR MOUNTING
    LOCKWASHER, ALTERNATOR MOUNTING
  • 27
    61859 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 28
    10-48308 SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
    SCREW, ALTERNATOR TO ALTERNATOR BRACKET (3 3/4")
  • 29
    12-20553 WASHER, ALTERNATOR BRACKET SCREW
    WASHER, ALTERNATOR BRACKET SCREW
  • 30
    23-33186 BUSHING, ALTERNATOR BRACKET SCREW
    BUSHING, ALTERNATOR BRACKET SCREW
  • 31
    11-23161 NUT, ALTERNATOR BRACKET SCREW
    NUT, ALTERNATOR BRACKET SCREW
  • 32
    10-47462 SCREW, ALTERNATOR BRACKET TO CYLINGDER BLOCK (1 1/4")
    SCREW, ALTERNATOR BRACKET TO CYLINGDER BLOCK (1 1/4")
  • 33
    13-32993 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 34
    10-37612 SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4")
    SCREW, ALTERNATOR BRACKET TO TIMING COVER (1 1/4")
  • 35
    13-35048 LOCKWASHER, ALTERNATOR BRACKET SCREW
    LOCKWASHER, ALTERNATOR BRACKET SCREW
  • 36
    12-38344 WASHER, ALTERNATOR BRACKET SCREW (SHIM)
    WASHER, ALTERNATOR BRACKET SCREW (SHIM)
