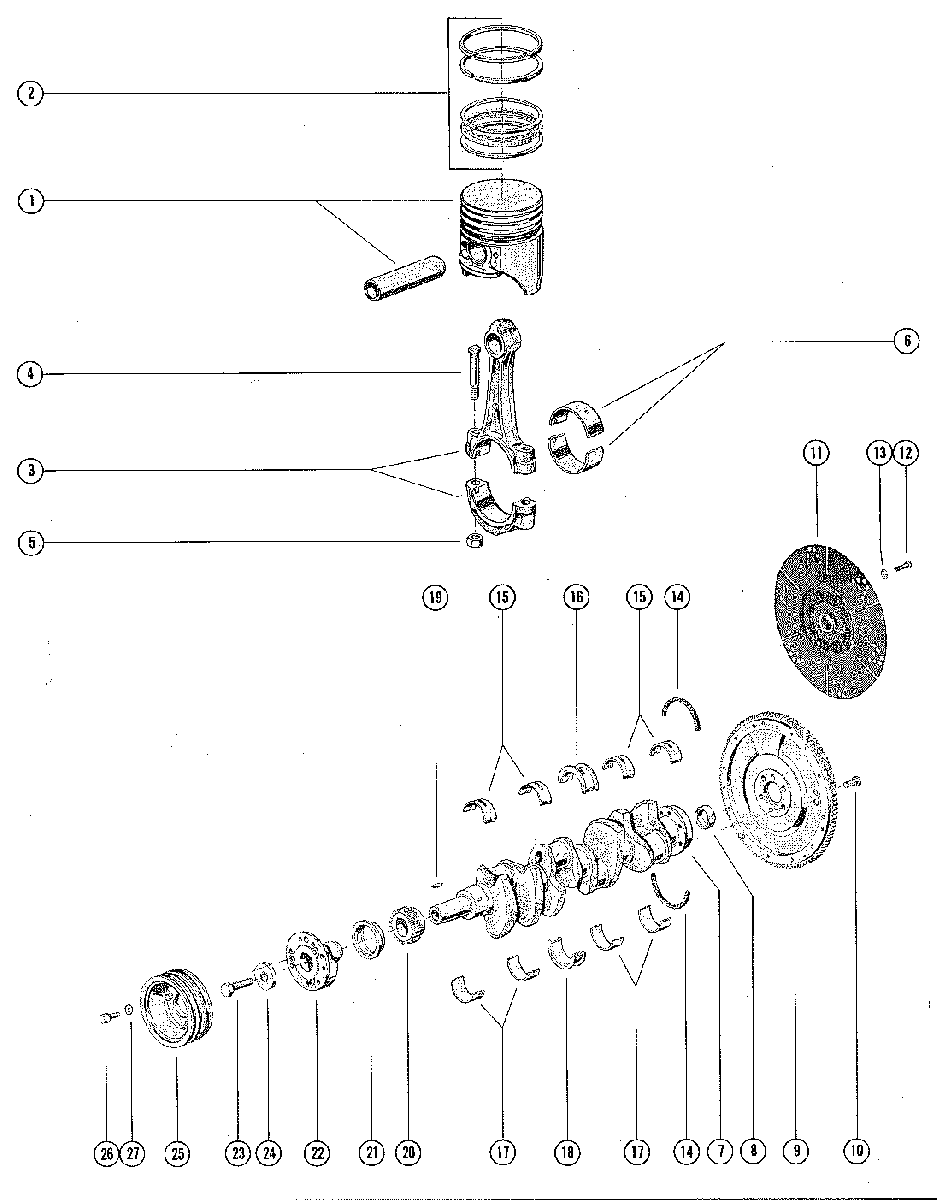

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercruiser - 215 (4 BBL.) FORD 302 V-8 1970-1972 2781153 THRU 3395720

  • №
    Артикул
    Название
  • 1
    749-4058 PISTON AND PISTON PIN ASSEMBLY (STANDARD)
    PISTON AND PISTON PIN ASSEMBLY (STANDARD)
  • 1
    749-4059 PISTON AND PISTON PIN ASSEMBLY (.003 O.S.)
    USE STANDARD RING
    PISTON AND PISTON PIN ASSEMBLY (.003 O.S.)
    USE STANDARD RING
  • 1
    749-4060 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
  • 2
    39-56114 RING ASSEMBLY, PISTON (STANDARD)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
    RING ASSEMBLY, PISTON (STANDARD)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
  • 2
    39-56115 RING ASSEMBLY, PISTON (.020 O.S.)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
    RING ASSEMBLY, PISTON (.020 O.S.)
    EACH PART NUMBER INCLUDES ENOUGH RINGS TO RERING 2 PISTONS
  • 3
    623-4679 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 4
    10-56123 BOLT, CONNECTING ROD
    BOLT, CONNECTING ROD
  • 5
    11-56122 NUT, CONNECTING ROD BOLT
    NUT, CONNECTING ROD BOLT
  • 6
    23-56116 BEARING UNIT, CONNECTING ROD (STANDARD)
    BEARING UNIT, CONNECTING ROD (STANDARD)
  • 6
    23-85730 BEARING UNIT, CONNECTING ROD (.001 U.S.)
    BEARING UNIT, CONNECTING ROD (.001 U.S.)
  • 6
    23-85731 BEARING UNIT, CONNECTING ROD (.002 U.S.)
    BEARING UNIT, CONNECTING ROD (.002 U.S.)
  • 6
    23-85732 BEARING UNIT, CONNECTING ROD (.010 U.S.)
    BEARING UNIT, CONNECTING ROD (.010 U.S.)
  • 6
    23-85733 BEARING UNIT, CONNECTING ROD (.020 U.S.)
    BEARING UNIT, CONNECTING ROD (.020 U.S.)
  • 7
    446-4064 CRANKSHAFT (STANDARD ROTATION)
    CRANKSHAFT (STANDARD ROTATION)
  • 7
    446-5797 CRANKSHAFT (OPPOSITE ROTATION)
    CRANKSHAFT (OPPOSITE ROTATION)
  • 8
    23-55248 BEARING, CLUTCH PILOT (ELECTRIC SHIFT)
    BEARING, CLUTCH PILOT (ELECTRIC SHIFT)
  • 9
    238-4428 FLYWHEEL ASSEMBLY (ELECTRIC SHIFT)
    FLYWHEEL ASSEMBLY (ELECTRIC SHIFT)
  • 9
    238-4055 FLYWHEEL ASSEMBLY (HYDRAULIC SHIFT AND INBOARD)
    FLYWHEEL ASSEMBLY (HYDRAULIC SHIFT AND INBOARD)
  • 10
    10-60706 BOLT, FLYWHEEL TO CRANKSHAFT (1 5/8")
    ELECTRIC SHIFT
    BOLT, FLYWHEEL TO CRANKSHAFT (1 5/8")
    ELECTRIC SHIFT
  • 10
    10-60705 BOLT, FLYWHEEL TO CRANKSHAFT (1 1/16")
    HYDRAULIC SHIFT AND INBAORD
    BOLT, FLYWHEEL TO CRANKSHAFT (1 1/16")
    HYDRAULIC SHIFT AND INBAORD
  • 11
    47608A1 DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 12
    10-56889 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 13
    13-26993 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 14
    26-56868 OIL SEAL, CRANKSHAFT REAR (STANDARD ROTATION)
    OIL SEAL, CRANKSHAFT REAR (STANDARD ROTATION)
  • 14
    26-56869 OIL SEAL, CRANKSHAFT REAR (OPPPOSITE ROTATION)
    OIL SEAL, CRANKSHAFT REAR (OPPPOSITE ROTATION)
  • 15
    23-85734 BEARING, CRANKSHAFT MAIN - UPPER (STANDARD)
    BEARING, CRANKSHAFT MAIN - UPPER (STANDARD)
  • 15
    23-85736 BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER (.001 U.S.)
  • 15
    23-56894 BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER (.002 U.S.)
  • 15
    23-85741 BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER (.010 U.S.)
  • 15
    23-56898 BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER (.020 U.S.)
  • 16
    23-56898 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)
    BEARING, CRANKSHAFT MAIN - UPPER - CENTER (STANDARD)
  • 16
    23-85738 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.001 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.001 U.S.)
  • 16
    23-56895 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.002 U.S.)
  • 16
    23-85743 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.010 U.S.)
  • 16
    23-56899 BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)
    BEARING, CRANKSHAFT MAIN - UPPER - CENTER (.020 U.S.)
  • 17
    23-56900 BEARING, CRANKSHAFT MAIN - LOWER (STANDARD)
    BEARING, CRANKSHAFT MAIN - LOWER (STANDARD)
  • 17
    23-56902 BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER (.001 U.S.)
  • 17
    23-85739 BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER (.002 U.S.)
  • 17
    23-56906 BEARING, CRANKSHAFT MAIN - LOWER (.010 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER (.010 U.S.)
  • 17
    23-85737 BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER (.020 U.S.)
  • 18
    23-85735 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)
    BEARING, CRANKSHAFT MAIN - LOWER - CENTER (STANDARD)
  • 18
    23-56903 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.001 U.S.)
  • 18
    23-85740 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.002 U.S.)
  • 18
    23-56907 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.010 U.S.)
  • 18
    23-85742 BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)
    BEARING, CRANKSHAFT MAIN - LOWER - CENTER (.020 U.S.)
  • 19
    28-56142 KEY, TIMING SPROCKET TO CRANKSHAFT
    KEY, TIMING SPROCKET TO CRANKSHAFT
  • 20
    43-56141 SPROCKET, CRANKSHAFT TIMING (21 TEETH)
    SPROCKET, CRANKSHAFT TIMING (21 TEETH)
  • 21
    56143 SLINGER, OIL - CRANKSHAFT
    SLINGER, OIL - CRANKSHAFT
  • 22
    56145 DAMPER ASSEMLBY, CRANKSHAFT (STANDARD ROTATION)
    DAMPER ASSEMLBY, CRANKSHAFT (STANDARD ROTATION)
  • 22
    61750 DAMPER ASSEMBLY, CRANKSHAFT ( OPPOSITE ROTATION)
    DAMPER ASSEMBLY, CRANKSHAFT ( OPPOSITE ROTATION)
  • 23
    10-58257 BOLT, DAMPER TO CRANKSHAFT (1 3/4")
    BOLT, DAMPER TO CRANKSHAFT (1 3/4")
  • 24
    12-56148 WASHER, DAMPER TO CRANKSHAFT BOLT
    WASHER, DAMPER TO CRANKSHAFT BOLT
  • 25
    56144 PULLEY, CRANKSHAFT
    PULLEY, CRANKSHAFT
  • 26
    10-21077 SCREW, PULLEY TO DAMPER (7/8")
    SCREW, PULLEY TO DAMPER (7/8")
  • 27
    13-35048 LOCKWASHER, PULLEY SCREW
    LOCKWASHER, PULLEY SCREW
