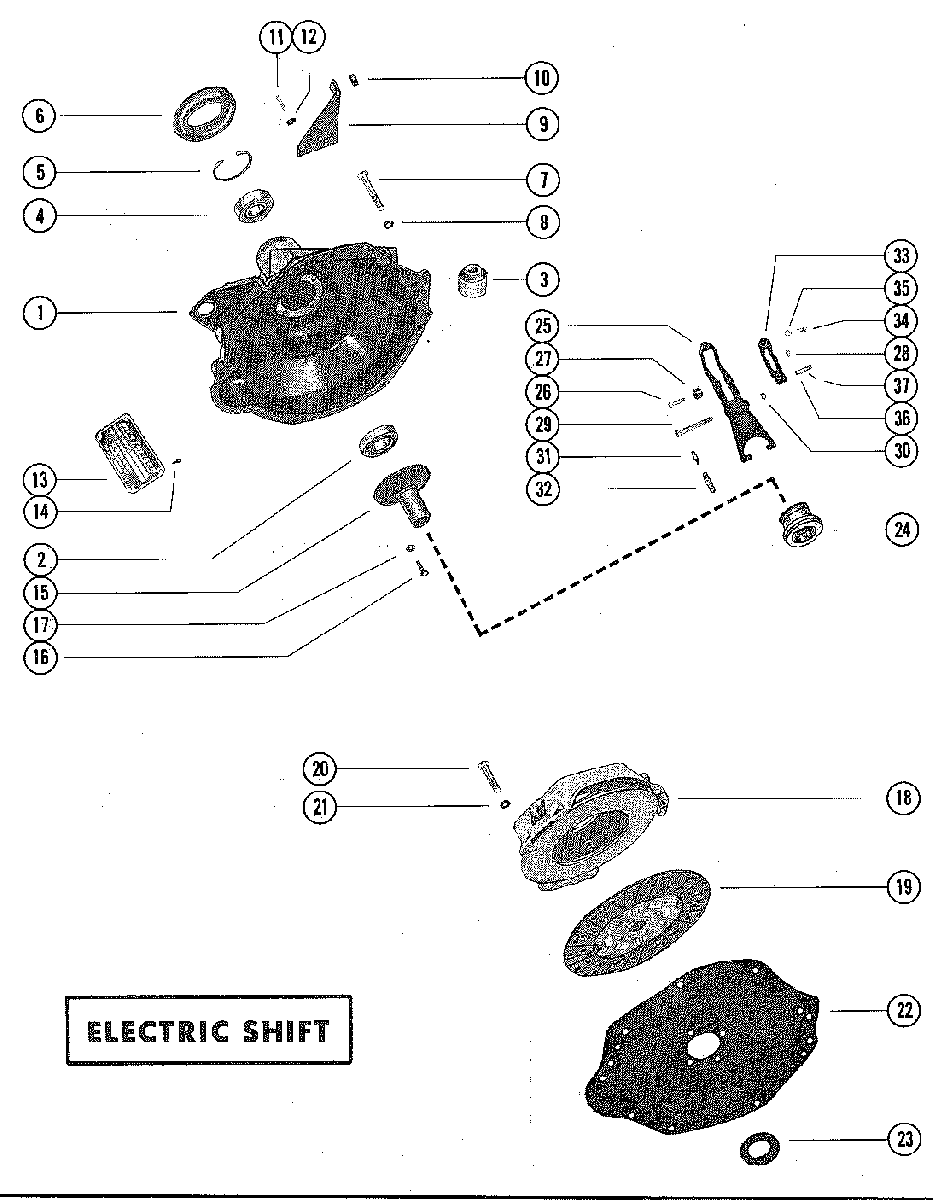

FLYWHEEL HOUSING AND CLUTCH PLATE для Mercruiser - 215 (4 BBL.) FORD 302 V-8 1970-1972 2781153 THRU 3395720

  • №
    Артикул
    Название
  • 1
    54517A3 FLYWHEEL HOUSING ASSEMBLY
    FLYWHEEL HOUSING ASSEMBLY
  • 2
    30-54251 BALL BEARING, FLYWHEEL HOUSING
    BALL BEARING, FLYWHEEL HOUSING
  • 3
    35852 MOUNT, RUBBER - FLYWHEEL HOUSING
    MOUNT, RUBBER - FLYWHEEL HOUSING
  • 4
    30-32537T BALL BEARING, FLYWHEEL HOUSING
    BALL BEARING, FLYWHEEL HOUSING
  • 5
    53-54481 SNAP RING, BALL BEARING RETAINING
    SNAP RING, BALL BEARING RETAINING
  • 6
    25-54067 SEAL, TRANSOM TO GIMBAL HOUSING
    SEAL, TRANSOM TO GIMBAL HOUSING
  • 7
    10-37260 SCREW, FLYWHEEL HOUSING ATTACHING (7/16")
    SCREW, FLYWHEEL HOUSING ATTACHING (7/16")
  • 7
    10-47462 SCREW, FLYWHEEL HOUSING ATTACHING (1 1/4")
    SCREW, FLYWHEEL HOUSING ATTACHING (1 1/4")
  • 7
    10-47461 SCREW, FLYWHEEL HOUSING ATTACHING (1")
    SCREW, FLYWHEEL HOUSING ATTACHING (1")
  • 7
    10-54847 SCREW, FLYWHEEL HOUSING ATTACHING (2")
    SCREW, FLYWHEEL HOUSING ATTACHING (2")
  • 7
    10-25299 SCREW, FLYWHEEL HOUSING ATTACHING (3/4")
    SCREW, FLYWHEEL HOUSING ATTACHING (3/4")
  • 8
    13-32993 LOCKWASHER, FLYWHEEL HOUSING SCREW (7/16")
    LOCKWASHER, FLYWHEEL HOUSING SCREW (7/16")
  • 8
    13-30381 LOCKWASHER, FLYWHEEL HOUSING SCREW - SPECIAL (7/16")
    LOCKWASHER, FLYWHEEL HOUSING SCREW - SPECIAL (7/16")
  • 8
    13-39107 LOCKWASHER, FLYWHEEL HOUSING SCREW (5/16")
    LOCKWASHER, FLYWHEEL HOUSING SCREW (5/16")
  • 9
    57598A1 BRACKET ASSEMBLY, CABLE SUPPORT (SERIAL #2909034 AND BELOW)
    BRACKET ASSEMBLY, CABLE SUPPORT (SERIAL #2909034 AND BELOW)
  • 9
    60403A2 BRACKET ASSEMBLY, CABLE SUPPORT (SERIAL #2914035 AND UP)
    BRACKET ASSEMBLY, CABLE SUPPORT (SERIAL #2914035 AND UP)
  • 10
    25-56291 GROMMET, SHIFT CABLE SUPPORT BRACKET
    GROMMET, SHIFT CABLE SUPPORT BRACKET
  • 11
    10-32417 SCREW, SUPPORT BRACKET TO FLYWHEEL HOUSING (5/8")
    SCREW, SUPPORT BRACKET TO FLYWHEEL HOUSING (5/8")
  • 12
    13-21272 LOCKWASHER, SHIFT CABLE SUPPORT BRACKET SCREW
    LOCKWASHER, SHIFT CABLE SUPPORT BRACKET SCREW
  • 13
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 14
    10-20314 SCREW. SERIAL PLATE TO FLYWHEEL HOUSING
    SCREW. SERIAL PLATE TO FLYWHEEL HOUSING
  • 15
    66527A1 RETAINING, BEARING - FLYWHEEL HOUSING
    RETAINING, BEARING - FLYWHEEL HOUSING
  • 16
    10-35386 SCREW, BEARING RETAINER TO FLYWHEEL HOUSING (1")
    SCREW, BEARING RETAINER TO FLYWHEEL HOUSING (1")
  • 17
    13-39107 LOCKWASHER, BEARING RETAINER SCREW
    LOCKWASHER, BEARING RETAINER SCREW
  • 18
    52-66728A1 PRESSURE PLATE, CLUTCH
    PRESSURE PLATE, CLUTCH
  • 19
    52-59111 CLUTCH PLATE, DRIVEN
    CLUTCH PLATE, DRIVEN
  • 20
    10-56889 SCREW, PRESSURE PLATE ATTACHING (15/16")
    SCREW, PRESSURE PLATE ATTACHING (15/16")
  • 21
    13-39107 LOCKWASHER, PRESSURE PLATE SCREW
    LOCKWASHER, PRESSURE PLATE SCREW
  • 22
    56878 PLATE, COVER - REAR
    PLATE, COVER - REAR
  • 23
    27-56152 SEAL, REAR COVER PLATE
    SEAL, REAR COVER PLATE
  • 24
    66527A1 BEARING, CLUTCH RELEASE
    BEARING, CLUTCH RELEASE
  • 25
    58387 FORK, CLUTCH
    FORK, CLUTCH
  • 26
    10-54475 SCREW, ARM TO CLUTCH FORK (1 1/8")
    SCREW, ARM TO CLUTCH FORK (1 1/8")
  • 27
    31-54910 BEARING, CAM FOLLOWER - CLUTCH FORK ARM SCREW
    BEARING, CAM FOLLOWER - CLUTCH FORK ARM SCREW
  • 28
    11-826709109 NUT, CLUTCH FORK ARM SCREW
    NUT, CLUTCH FORK ARM SCREW
  • 29
    10-52409 SCREW, CLUTCH FORK TO FLYWHEEL HOUSING (3 1/4")
    SCREW, CLUTCH FORK TO FLYWHEEL HOUSING (3 1/4")
  • 30
    11-8M0042636 NUT, CLUTCH FORK SCREW
    NUT, CLUTCH FORK SCREW
  • 31
    54680 GUIDE, CLUTCH FORK DETENT SPRING
    GUIDE, CLUTCH FORK DETENT SPRING
  • 32
    24-54489 SPRING, DETENT - CLUTCH FORK
    SPRING, DETENT - CLUTCH FORK
  • 33
    58386 ARM, CLUTCH FORK
    ARM, CLUTCH FORK
  • 34
    10-58378 SCREW, SET - CLUTCH FORK ARM (1")
    SCREW, SET - CLUTCH FORK ARM (1")
  • 35
    11-21929 NUT, JAM - CLUTCH FORK ARM SET SCREW
    NUT, JAM - CLUTCH FORK ARM SET SCREW
  • 36
    17-58385 HINGE PIN, CLUTCH FORK ARM
    HINGE PIN, CLUTCH FORK ARM
  • 37
    18-26940 COTTER PIN, CLUTCH FORK ARM HINGE PIN
    COTTER PIN, CLUTCH FORK ARM HINGE PIN
