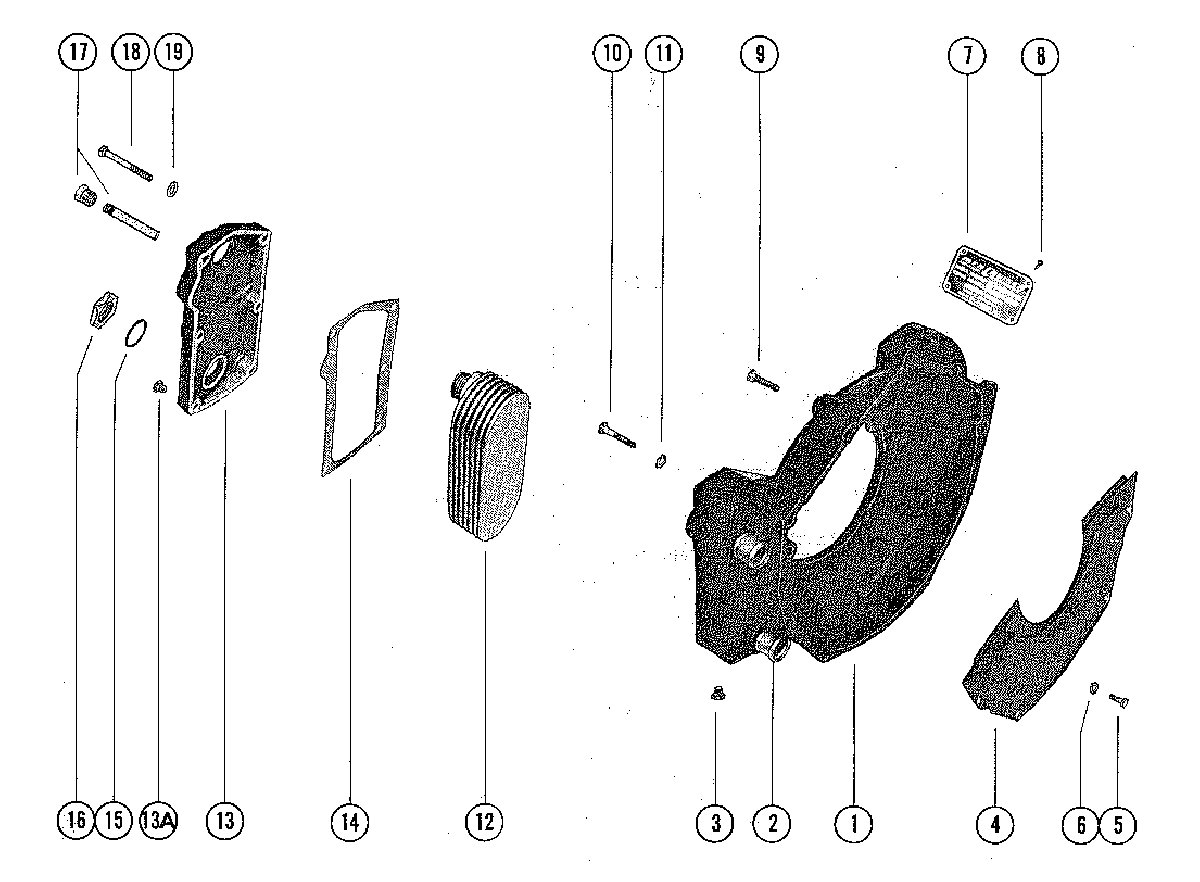

FLYWHEEL HOUSING AND OIL COOLER для Mercruiser - 215 (4 BBL.) FORD 302 V-8 1970-1972 2781153 THRU 3395720

  • №
    Артикул
    Название
  • 1
    54480 HOUSING, FLYWHEEL
    HOUSING, FLYWHEEL
  • 2
    23-47511 SLEEVE, CONNECTING - FLYWHEEL HOUSING
    SLEEVE, CONNECTING - FLYWHEEL HOUSING
  • 3
    22-328022 PLUG, DRAIN - FLYWHEEL HOUSING
    PLUG, DRAIN - FLYWHEEL HOUSING
  • 4
    47542 COVER, FLYWHEEL HOUSING
    COVER, FLYWHEEL HOUSING
  • 5
    10-28635 SCREW, COVER TO FLYWHEEL HOUSING (5/8")
    SCREW, COVER TO FLYWHEEL HOUSING (5/8")
  • 6
    13-26992 LOCKWASHER, COVE SCREW
    LOCKWASHER, COVE SCREW
  • 7
    38-47520 SERIAL PLATE
    SERIAL PLATE
  • 8
    10-20314 SCREW, SERIAL PLATE ATTACHING
    SCREW, SERIAL PLATE ATTACHING
  • 9
    10-47462 SCREW, FLYWHEEL HOUSING TO ENGINE (1 1/4")
    SCREW, FLYWHEEL HOUSING TO ENGINE (1 1/4")
  • 10
    10-54493 SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
    SCREW, FLYWHEEL HOUSING TO ENGINE (2 1/2")
  • 10
    10-47654 SCREW FLYWHEEL HOUSING TO ENGINE (2 3/4")
    SCREW FLYWHEEL HOUSING TO ENGINE (2 3/4")
  • 11
    12-57864 WASHER, SEALING - FLYWHEEL HOUSING SCREW
    WASHER, SEALING - FLYWHEEL HOUSING SCREW
  • 12
    47610A15 COOLER, OIL
    COOLER, OIL
  • 13
    94911A2 COVER ASSEMBLY, OIL COOLER
    COVER ASSEMBLY, OIL COOLER
  • 13A
    22-390721 PLUG, DRAIN - OIL COOLER COVER
    PLUG, DRAIN - OIL COOLER COVER
  • 14
    27-47495 GASKET, OIL COOLER COVER
    GASKET, OIL COOLER COVER
  • 15
    25-864701 "O" RING, SEALING - OIL COOLER
    "O" RING, SEALING - OIL COOLER
  • 16
    11-47521 NUT, JAM - OIL COOLER
    NUT, JAM - OIL COOLER
  • 17
    97-806000 ELECTRODE, OIL COOLER
    ELECTRODE, OIL COOLER
  • 18
    10-73657 SCREW, OIL COOLER COVER TO FLYWHEEL HOUSING (1 7/16")
    SCREW, OIL COOLER COVER TO FLYWHEEL HOUSING (1 7/16")
  • 19
    12-36533 WASHER, OIL COOLER COVER SCREW
    WASHER, OIL COOLER COVER SCREW
  • 19
    13-26993 LOCKWASHER, OIL COOLER COVER SCREW
    LOCKWASHER, OIL COOLER COVER SCREW
