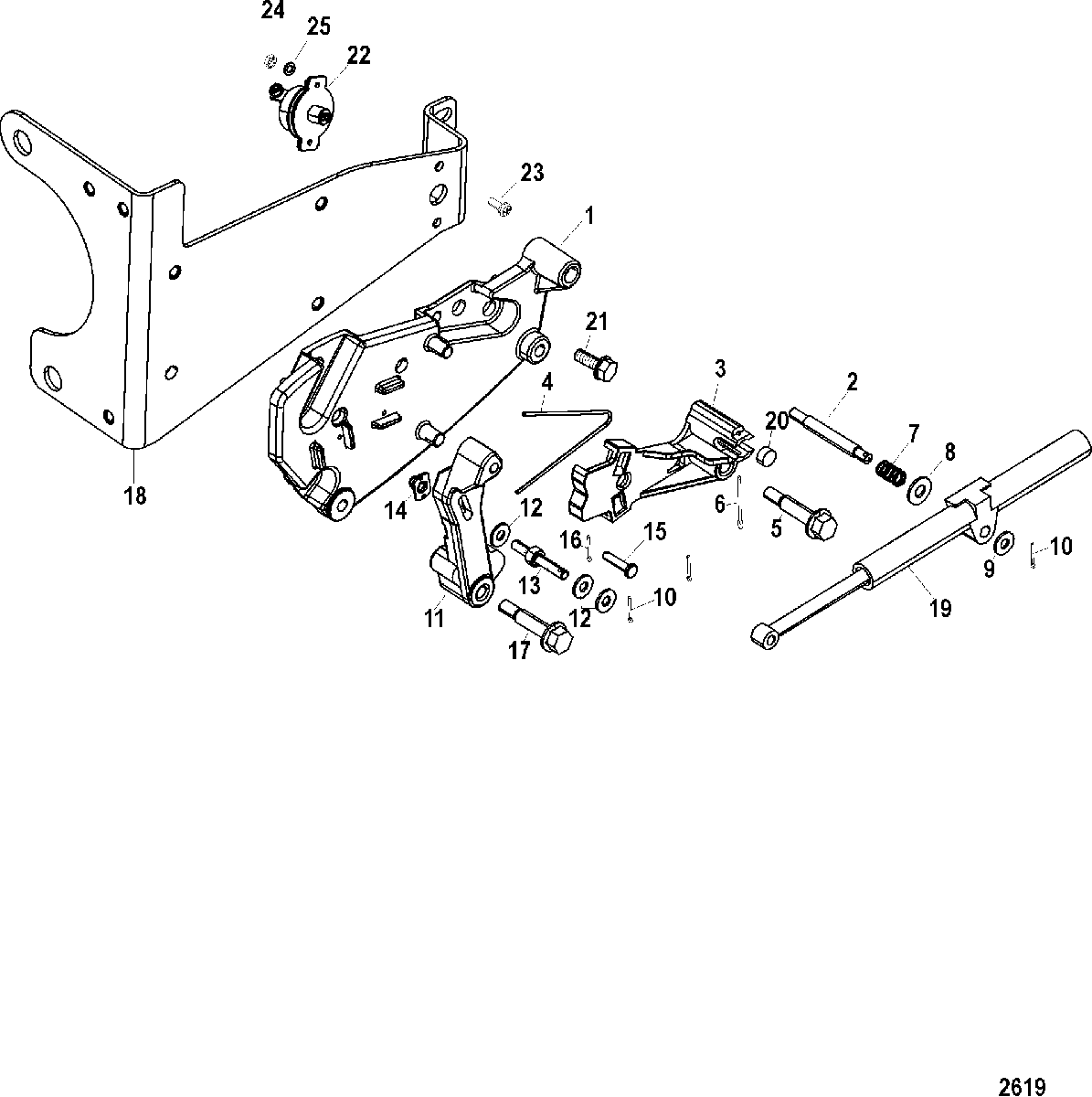

Shift Bracket(DESIGN II-With Hairpin Clips or 4 Cotter Pins) для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
  • 2
    865149A02 STUD (With Clip)
    STUD (With Clip)
  • 3
    865433A02 LEVER ASSEMBLY, Actuator (With Clip)
    LEVER ASSEMBLY, Actuator (With Clip)
  • 4
    24-864907T SPRING
    SPRING
  • 5
    10-865148 SCREW, (.312-18 x 1.843)
    SCREW, (.312-18 x 1.843)
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    18-210711 COTTER PIN
    COTTER PIN
  • 11
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 13
    16-865393A02 STUD KIT, (.250-28 x 1.90) (With Clip)
    STUD KIT, (.250-28 x 1.90) (With Clip)
  • 14
    11-63341 TEE NUT, Tee
    TEE NUT, Tee
  • 15
    17-68402 PIN, (.250 x 1.13), Clevis
    PIN, (.250 x 1.13), Clevis
  • 16
    18-210711 COTTER PIN
    COTTER PIN
  • 17
    10-865148 SCREW, (.312-18 x 1.843)
    SCREW, (.312-18 x 1.843)
  • 18
    863009T BRACKET, Shift, Shift Plate Assembly
    BRACKET, Shift, Shift Plate Assembly
  • 19
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
  • 20
    23-98828 SPACER
    SPACER
  • 21
    10-816928 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 22
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 23
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 24
    11-45076 NUT, (#10-32) Brass
    NUT, (#10-32) Brass
  • 25
    13-69432 LOCKWASHER, External (#10)
    LOCKWASHER, External (#10)
