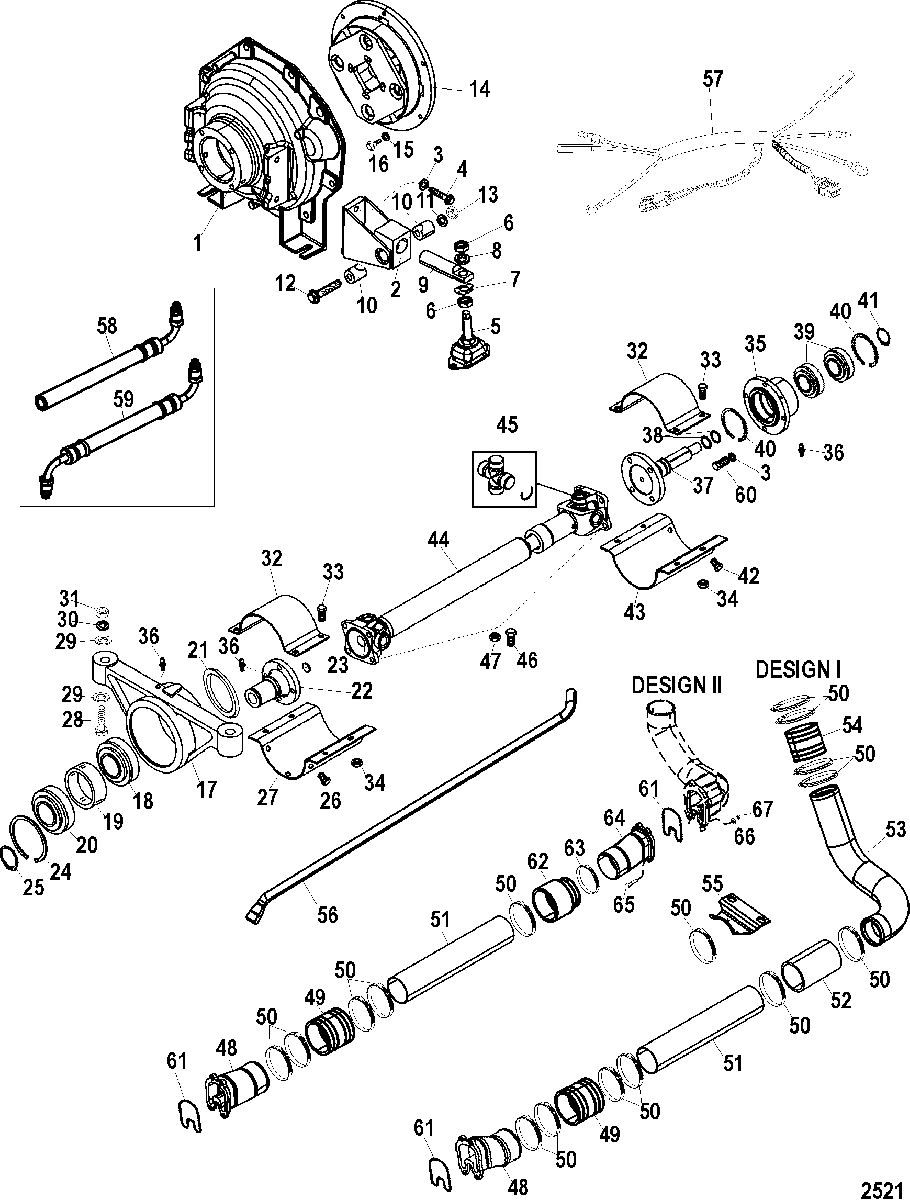

Jackshaft Components для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up

  • №
    Артикул
    Название
  • 1
    863914T HOUSING, Flywheel
    HOUSING, Flywheel
  • 2
    52158A20 BRACKET, Rear Mount
    BRACKET, Rear Mount
  • 3
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 4
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 5
    864912A1 MOUNT, Rear
    MOUNT, Rear
  • 6
    11-20739 NUT, (.750-16)
    NUT, (.750-16)
  • 7
    14-66658 TAB WASHER, Tab
    TAB WASHER, Tab
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 9
    66166A4 TRUNNION
    TRUNNION
  • 10
    54-47528 CLAMP
    CLAMP
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    10-47724 SCREW, (.437-14 x 3.00)
    SCREW, (.437-14 x 3.00)
  • 13
    11-82670814 NUT, (.437-14)
    NUT, (.437-14)
  • 14
    864890T DRIVEPLATE ASSEMBLY, Centra
    DRIVEPLATE ASSEMBLY, Centra
  • 15
    13-864918 LOCKWASHER
    LOCKWASHER
  • 16
    10-864917 SCREW, (M7 x 30)
    SCREW, (M7 x 30)
  • 17
    817416A4 HOUSING ASSEMBLY, Complete
    HOUSING ASSEMBLY, Complete
  • 18
    30-93944A2 BEARING SET, Ball
    (Includes Item 20)
    BEARING SET, Ball
    (Includes Item 20)
  • 19
    23-817417 SPACER, Bearing
    SPACER, Bearing
  • 20
    30-93944A2 BEARING SET, Ball, Ball
    (Includes Item 18)
    BEARING SET, Ball, Ball
    (Includes Item 18)
  • 21
    26-93924 SEAL, Grease
    SEAL, Grease
  • 22
    817415T SHAFT, Input
    SHAFT, Input
  • 23
    19-93921 EXPANSION PLUG
    EXPANSION PLUG
  • 24
    53-93914 RING, Retaining
    RING, Retaining
  • 25
    53-93915 RING, Retaining
    RING, Retaining
  • 26
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 27
    93918A1 SHIELD, Lower, Lower
    SHIELD, Lower, Lower
  • 28
    10-57053 SCREW, (.500-20 x 4.500)
    SCREW, (.500-20 x 4.500)
  • 29
    12-42307 WASHER
    WASHER
  • 30
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 31
    11-898832 NUT, (.500-20)
    NUT, (.500-20)
  • 32
    93919A1 SHIELD, Upper, Upper
    SHIELD, Upper, Upper
  • 33
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 34
    11-82670912 NUT, (.375-16) Stainless Steel
    NUT, (.375-16) Stainless Steel
  • 35
    30-879194A05 ADAPTOR, Double Bearing
    ADAPTOR, Double Bearing
  • 36
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 36
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 37
    807317T SHAFT, Tailstock
    SHAFT, Tailstock
  • 38
    25-29845 O-RING, (.924 x .103)
    O-RING, (.924 x .103)
  • 39
    30-879194A03 BEARING, Ball
    BEARING, Ball
  • 40
    53-94104 RING, Retaining
    RING, Retaining
  • 41
    53-8M0141818 RING, Retaining
    RING, Retaining
  • 42
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 43
    93918A1 SHIELD, Lower
    SHIELD, Lower
  • 44
    862772A28 DRIVESHAFT ASSEMBLY, (28.00 Inches)
    DRIVESHAFT ASSEMBLY, (28.00 Inches)
  • 44
    862772A31 DRIVESHAFT ASSEMBLY, (31.00 Inches)
    DRIVESHAFT ASSEMBLY, (31.00 Inches)
  • 45
    880800A1 UNIVERSAL JOINT
    UNIVERSAL JOINT
  • 46
    10-805159 SCREW, (.437-20 x 1.500)
    SCREW, (.437-20 x 1.500)
  • 47
    11-82670815 NUT, (.437-20)
    NUT, (.437-20)
  • 48
    862268T1 TUBE, Exhaust
    TUBE, Exhaust
  • 49
    32-44348001 TUBE, Exhaust
    TUBE, Exhaust
  • 50
    54-815504272 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 51
    864957 TUBE, Exhaust
    (Fits Driveshafts UP to (31 Inch) Long)
    TUBE, Exhaust
    (Fits Driveshafts UP to (31 Inch) Long)
  • 52
    32-486598 TUBE, Exhaust
    TUBE, Exhaust
  • 53
    865157T PIPE, Exhaust
    PIPE, Exhaust
  • 54
    70981A3 BELLOWS ASSEMBLY, Exhaust
    BELLOWS ASSEMBLY, Exhaust
  • 55
    865160 BRACKET, Exhaust
    BRACKET, Exhaust
  • 56
    32-862877 HOSE, Transom to Cooler
    HOSE, Transom to Cooler
  • 57
    84-864663 HARNESS ASSEMBLY, Extension
    HARNESS ASSEMBLY, Extension
  • 58
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return - Power Steering
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return - Power Steering
  • 59
    32-80622236 HOSE, Power Steering
    HOSE, Power Steering
  • 60
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 61
    41802 SEAL, Rubber, Exhaust
    SEAL, Rubber, Exhaust
  • 62
    78458A1 TUBE, Exhaust
    TUBE, Exhaust
  • 63
    54-815504348 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 64
    862268T2 TUBE, Exhaust
    TUBE, Exhaust
  • 65
    94-92272 SCREW, (.375-24 x 1.750)
    SCREW, (.375-24 x 1.750)
  • 66
    91963 WASHER, (.390 x .600 x .032)
    WASHER, (.390 x .600 x .032)
  • 67
    11-82671013 NUT, (.375-24) Stainless Steel
    NUT, (.375-24) Stainless Steel
