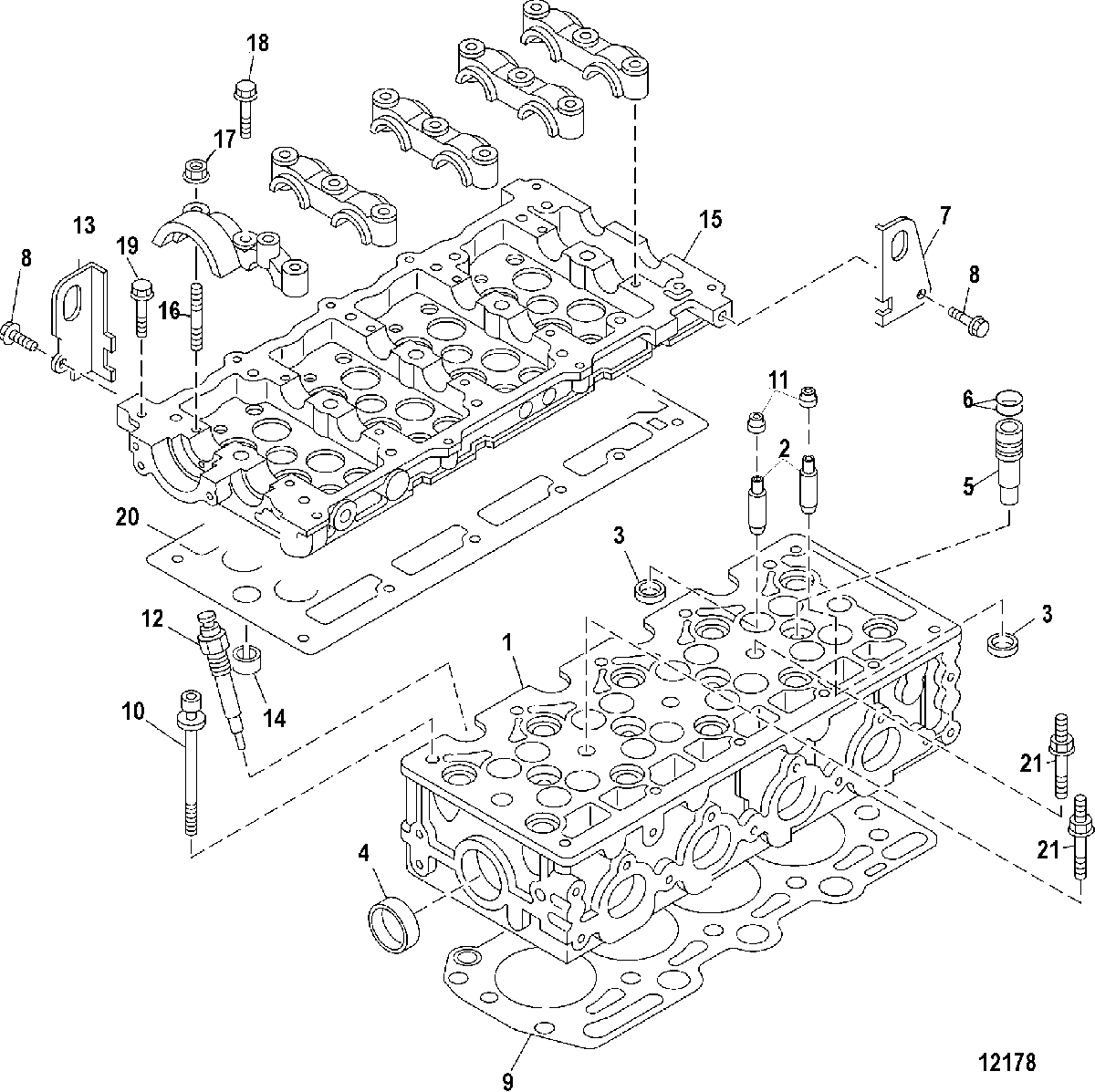

Cylinder Head для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up

  • №
    Артикул
    Название
  • 1
    938-8M0055385 CYLINDER HEAD ASSEMBLY, Cylinder
    CYLINDER HEAD ASSEMBLY, Cylinder
  • 2
    891721 GUIDE, Valve
    GUIDE, Valve
  • 3
    882467 SEAT, Valve Insert
    (Intake)
    SEAT, Valve Insert
    (Intake)
  • 3
    882468 SEAT, Valve Insert
    (Exhaust)
    SEAT, Valve Insert
    (Exhaust)
  • 4
    882393 CUP, Cylinder Head Sealing
    CUP, Cylinder Head Sealing
  • 5
    882474 SLEEVE, Injector
    SLEEVE, Injector
  • 6
    27-882649 GASKET, Injector Sleeve
    GASKET, Injector Sleeve
  • 7
    882456 BRACKET, Lifting
    BRACKET, Lifting
  • 8
    10-882299 SCREW, (M8 x 16), Flange
    SCREW, (M8 x 16), Flange
  • 9
    27-882439001 GASKET, (T=1.45 Without Notch), Cylinder Head
    GASKET, (T=1.45 Without Notch), Cylinder Head
  • 9
    27-882440001 GASKET, (T=1.5 / 1 Notch), Cylinder Head
    GASKET, (T=1.5 / 1 Notch), Cylinder Head
  • 9
    27-882441001 GASKET, (T=1.55 / 2 Notch), Cylinder Head
    GASKET, (T=1.55 / 2 Notch), Cylinder Head
  • 10
    10-882400 SCREW, (M12 x 102), With Washer
    SCREW, (M12 x 102), With Washer
  • 11
    25-882364 SEAL, Oil, Valve Guide
    SEAL, Oil, Valve Guide
  • 12
    889504A01 GLOW PLUG KIT, With Controller and Components
    (STERNDRIVE)
    GLOW PLUG KIT, With Controller and Components
    (STERNDRIVE)
  • 12
    33-891831 GLOW PLUG
    (STERNDRIVE)
    GLOW PLUG
    (STERNDRIVE)
  • 12
    33-882572 FITTING, Plug, Glow Plug Port
    (STERNDRIVE)
    FITTING, Plug, Glow Plug Port
    (STERNDRIVE)
  • 13
    882455 BRACKET, Engine Lifting
    BRACKET, Engine Lifting
  • 14
    17-882700 PIN, Dowel (15.25 Outside Diameter), Cylinder Head
    PIN, Dowel (15.25 Outside Diameter), Cylinder Head
  • 15
    882449 CARRIER ASSEMBLY, Camshaft
    CARRIER ASSEMBLY, Camshaft
  • 16
    16-882369 STUD
    STUD
  • 17
    11-882658 NUT, (M8), Flange
    NUT, (M8), Flange
  • 18
    10-882719 NUT, (M10), Flange
    NUT, (M10), Flange
  • 19
    10-882302 SCREW, (M8 x 45), Flange
    SCREW, (M8 x 45), Flange
  • 20
    27-882465 GASKET, Camshaft Carrier
    GASKET, Camshaft Carrier
  • 21
    16-882720 STUD, Injector Nozzle Bracket
    STUD, Injector Nozzle Bracket
