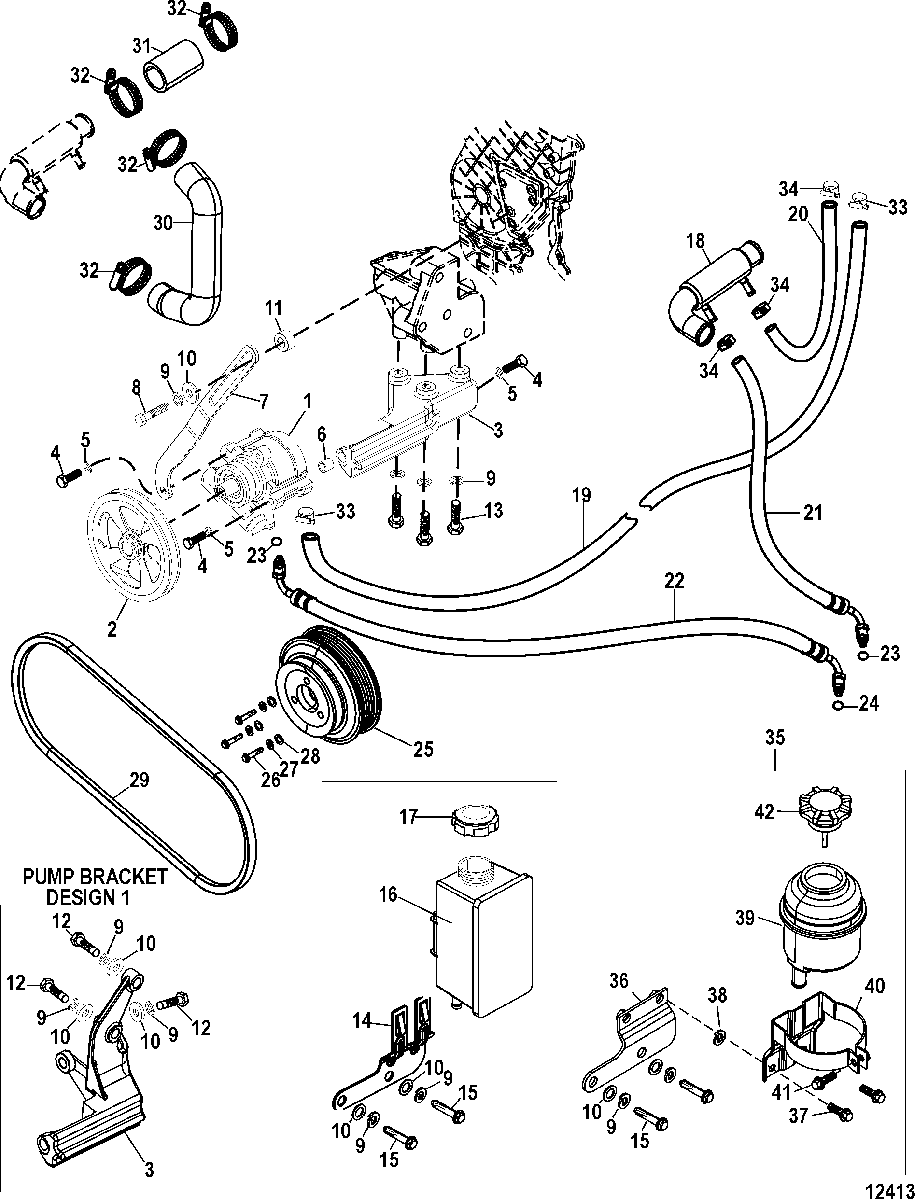

Power Steering Components для Mercruiser - CMD 1.7 MI 120 I/L4 88109041 & Up

  • №
    Артикул
    Название
  • 1
    864255T PUMP, Power Steering
    PUMP, Power Steering
  • 2
    864253T PULLEY, Power Steering
    PULLEY, Power Steering
  • 3
    863399T BRACKET, Pump, Pump
    (Design 1)
    BRACKET, Pump, Pump
    (Design 1)
  • 3
    863761T BRACKET, Pump
    (Design 2)
    BRACKET, Pump
    (Design 2)
  • 4
    10-40001134 SCREW, (M8 x 25)
    SCREW, (M8 x 25)
  • 5
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 6
    23-864181 SPACER
    SPACER
  • 7
    863401 BRACKET, Pump Tension
    Design 1)
    BRACKET, Pump Tension
    Design 1)
  • 7
    864341 BRACKET, Pump Tension
    (Design 2)
    BRACKET, Pump Tension
    (Design 2)
  • 8
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 9
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 10
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
  • 11
    23-863400 SPACER
    SPACER
  • 12
    10-4000383 SCREW, (M10 x 70)
    SCREW, (M10 x 70)
  • 13
    10-81516265 BOLT, (M10 x 65)
    BOLT, (M10 x 65)
  • 14
    863749 BRACKET, Reservoir
    BRACKET, Reservoir
  • 15
    10-40001192 SCREW, (M10 x 25)
    SCREW, (M10 x 25)
  • 16
    865264A06 RESERVOIR ASSEMBLY, Power Steering Fluid
    RESERVOIR ASSEMBLY, Power Steering Fluid
  • 17
    806216 CAP, Power Steering Reservoir
    CAP, Power Steering Reservoir
  • 18
    863939T COOLER, Power Steering
    COOLER, Power Steering
  • 19
    32-86280833 HOSE, Power Steering Reservoir to Pump
    HOSE, Power Steering Reservoir to Pump
  • 20
    32-8M0062341 HOSE, (53.00 Inches Bulk), Power Steering Cooler to Reservoir
    HOSE, (53.00 Inches Bulk), Power Steering Cooler to Reservoir
  • 21
    32-80622136 HOSE, Power Steering Cylinder to Cooler
    HOSE, Power Steering Cylinder to Cooler
  • 21
    32-865390068 HOSE, Return, Power Steering Cylinder to Cooler
    (With Quick Connect)
    HOSE, Return, Power Steering Cylinder to Cooler
    (With Quick Connect)
  • 22
    32-80622216 HOSE, Power Steering Pump to Steering Cylinder
    HOSE, Power Steering Pump to Steering Cylinder
  • 22
    32-866690 HOSE, Pressure, Power Steering Pump to Steering Cylinder
    (With Quick Connect)
    HOSE, Pressure, Power Steering Pump to Steering Cylinder
    (With Quick Connect)
  • 23
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 24
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 25
    864254T PULLEY, Water Pump
    PULLEY, Water Pump
  • 26
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 27
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 28
    12-4002316 WASHER
    WASHER
  • 29
    57-862054Q BELT, Power Steering Pump
    BELT, Power Steering Pump
  • 30
    32-863819 HOSE
    HOSE
  • 31
    32-863047 HOSE
    HOSE
  • 32
    54-815504220 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 33
    54-815504210 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 34
    54-815504105 CLAMP, Worm Gear (11-18 mm), Hose
    CLAMP, Worm Gear (11-18 mm), Hose
  • 35
    865264A05 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 36
    865767 BRACKET, Power Steering
    BRACKET, Power Steering
  • 37
    10-4000351 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 38
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 39
    865264A06 RESERVOIR KIT
    RESERVOIR KIT
  • 40
    865262A02 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 40
    10-82130025 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 41
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 42
    8M0121097 CAP, Oil Reservoir - Brown
    CAP, Oil Reservoir - Brown
