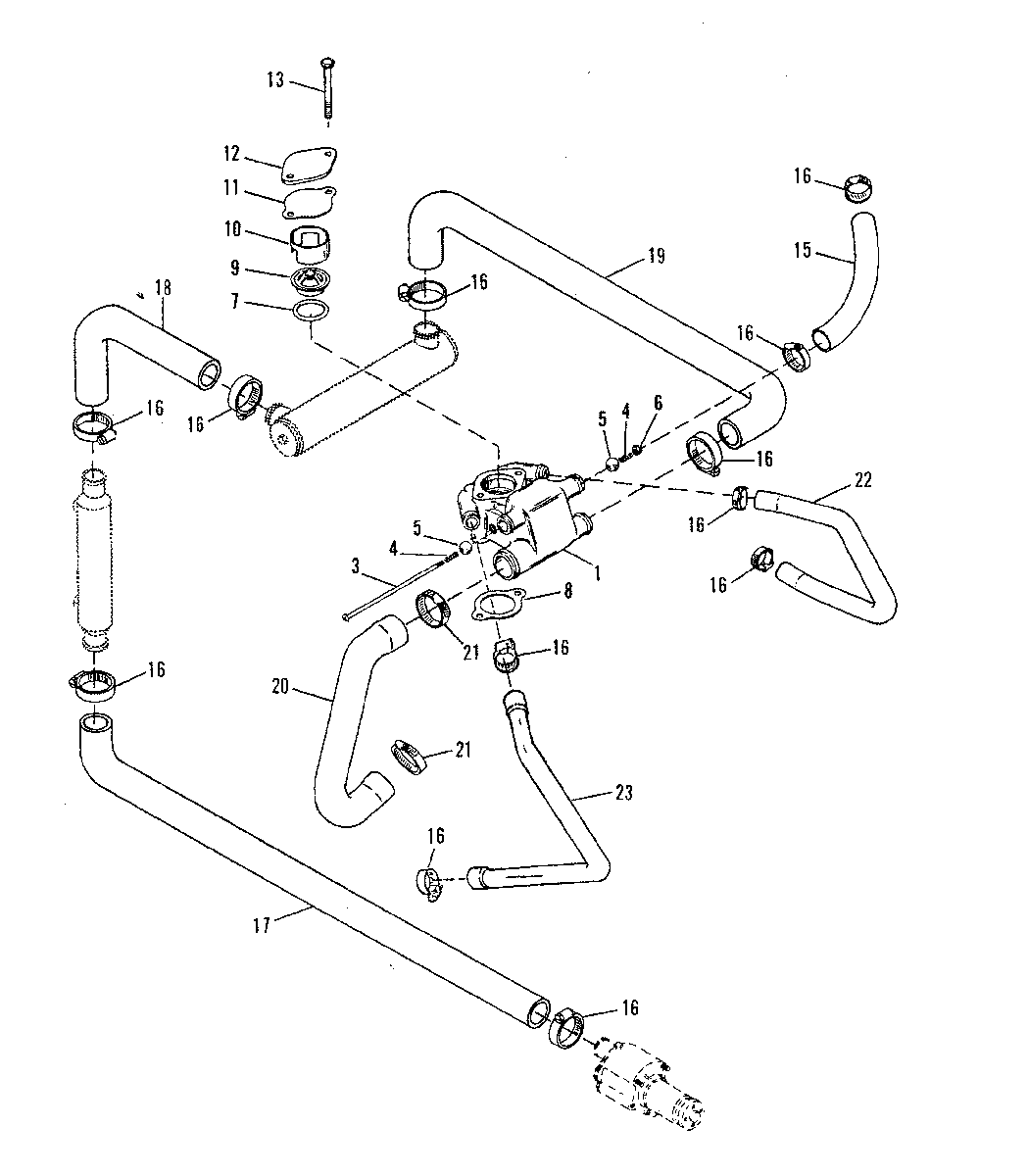

STANDARD COOLING SYSTEM для Mercruiser - 8.2L MIE W/HURTH GM 502 V-8 1990-1992 0C878221 THRU 0D857199

  • №
    Артикул
    Название
  • 1
    16413A3 THERMOSTAT HOUSING ASSEMBLY
    THERMOSTAT HOUSING ASSEMBLY
  • 3
    10-17989 SCREW
    SCREW
  • 4
    24-75533 SPRING
    SPRING
  • 5
    30-98475 NYLON BALL
    NYLON BALL
  • 6
    11-826709106 NUT
    NUT
  • 7
    25-30224 O-RING
    O-RING
  • 8
    27-530451 GASKET
    GASKET
  • 9
    8M0089715 THERMOSTAT (143)
    THERMOSTAT (143)
  • 10
    23-806922 SLEEVE
    SLEEVE
  • 11
    27-331792 GASKET
    GASKET
  • 12
    17494A1 COVER
    COVER
  • 13
    10-60410 SCREW (4-1/4")
    SCREW (4-1/4")
  • 15
    32-8M0062614 HOSE (STARBOARD)
    HOSE (STARBOARD)
  • 15
    32-817433 HOSE (MOLDED - PORT)
    HOSE (MOLDED - PORT)
  • 15
    32-817434 HOSE (MOLDED - PORT/STARBOARD) (V-DRIVE)
    HOSE (MOLDED - PORT/STARBOARD) (V-DRIVE)
  • 16
    54-815504220 CLAMP
    CLAMP
  • 17
    32-190801 HOSE, PUMP TO COOLER (630 SERIES TRANS.)
    HOSE, PUMP TO COOLER (630 SERIES TRANS.)
  • 17
    32-816656 HOSE, PUMP TO COOLER (800 SERIES TRANS./V-DRIVE)
    HOSE, PUMP TO COOLER (800 SERIES TRANS./V-DRIVE)
  • 18
    32-816658 HOSE, OIL COOLER TO OIL COOLER
    HOSE, OIL COOLER TO OIL COOLER
  • 19
    32-814861 HOSE, OIL COOLER TO THERMOSTAT HOUSING
    HOSE, OIL COOLER TO THERMOSTAT HOUSING
  • 20
    32-897181 HOSE, THERMOSTAT HOUSING TO WATER PUMP
    HOSE, THERMOSTAT HOUSING TO WATER PUMP
  • 21
    54-815504232 CLAMP
    CLAMP
  • 22
    32-973852 HOSE, THERMOSTAT HOUSING (PORT)
    HOSE, THERMOSTAT HOUSING (PORT)
  • 23
    32-897301 HOSE, THERMOSTAT HOUSING (STBD.)
    HOSE, THERMOSTAT HOUSING (STBD.)
