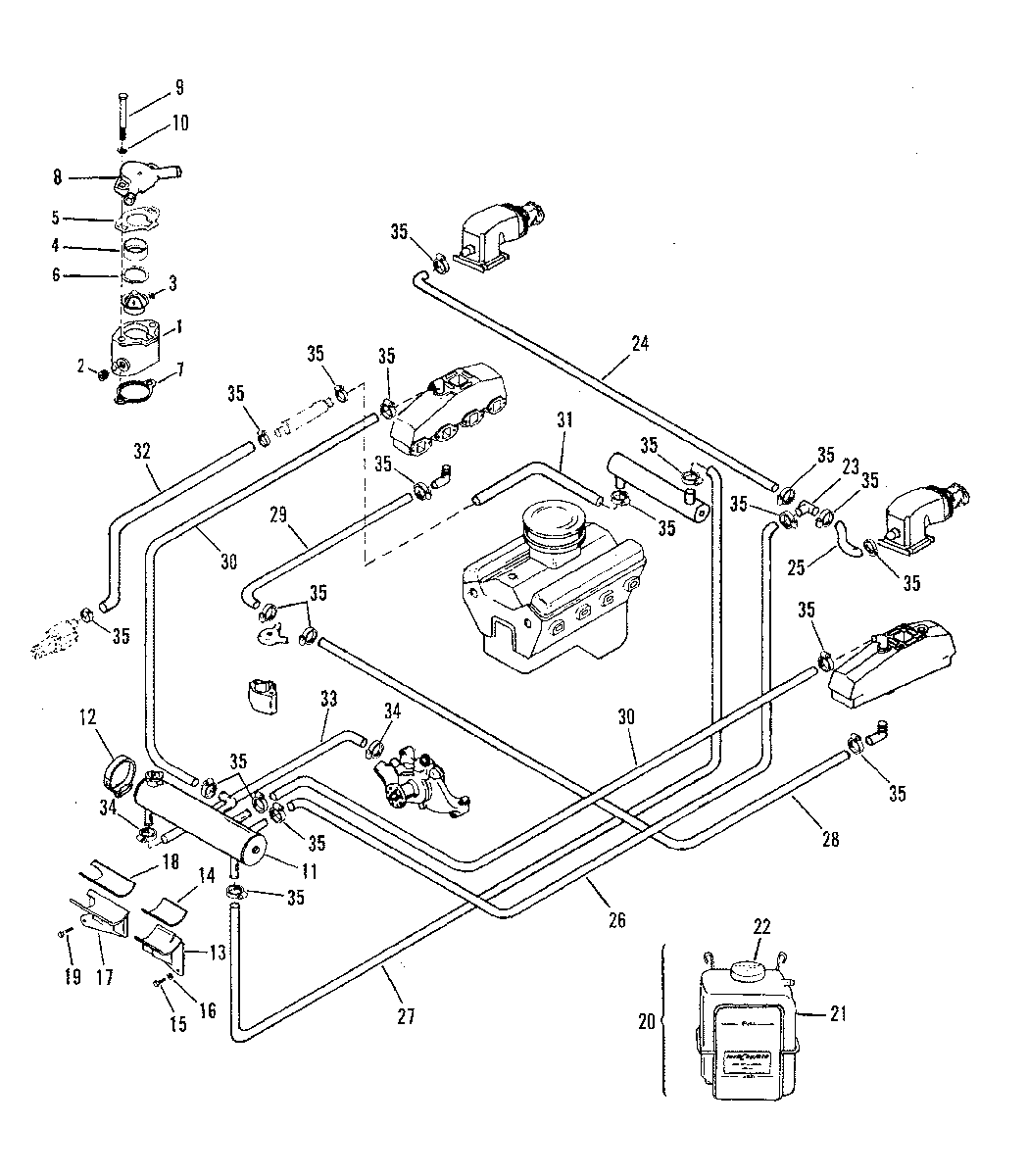

CLOSED COOLING SYSTEM для Mercruiser - 8.2L MIE W/HURTH GM 502 V-8 1990-1992 0C878221 THRU 0D857199

  • №
    Артикул
    Название
  • 1
    55131A5 THERMOSTAT HOUSING
    THERMOSTAT HOUSING
  • 2
    22-818390 DRAIN COCK
    DRAIN COCK
  • 3
    8M0089715 THERMOSTAT (143)
    THERMOSTAT (143)
  • 4
    23-47508T SLEEVE
    SLEEVE
  • 5
    27-488181 GASKET (UPPER)
    GASKET (UPPER)
  • 6
    27-47510 GASKET (MIDDLE)
    GASKET (MIDDLE)
  • 7
    27-530451 GASKET (LOWER)
    GASKET (LOWER)
  • 8
    97428T2 COVER
    COVER
  • 9
    10-48115 SCREW (3-1/2")
    SCREW (3-1/2")
  • 10
    13-35048 LOCKWASHER
    LOCKWASHER
  • 11
    18390T RESERVOIR
    SEE NOTE 4 IN BLOCK COMMENTS
    RESERVOIR
    SEE NOTE 4 IN BLOCK COMMENTS
  • 12
    54-815504372 CLAMP
    CLAMP
  • 13
    18421A2 BRACKET - STARBOARD
    BRACKET - STARBOARD
  • 14
    18431 PAD - STARBOARD
    PAD - STARBOARD
  • 15
    10-47462 SCREW - STARBOARD
    SCREW - STARBOARD
  • 16
    13-32993 LOCKWASHER - STARBOARD
    LOCKWASHER - STARBOARD
  • 17
    18423A2 BRACKET - PORT
    BRACKET - PORT
  • 18
    18429 PAD - PORT
    PAD - PORT
  • 19
    10-32132 SCREW - PORT
    SCREW - PORT
  • 20
    71587A10 CLOSED COOLING RECOVERY SYSTEM (SEE NOTE)
    CLOSED COOLING RECOVERY SYSTEM (SEE NOTE)
  • 21
    71587A11 BOTTLE
    BOTTLE
  • 22
    72058 CAP
    CAP
  • 23
    22-55133 TEE
    TEE
  • 24
    32-8174393 HOSE, TEE TO STARBOARD ELBOW
    HOSE, TEE TO STARBOARD ELBOW
  • 25
    32-8174381 HOSE, TEE TO PORT ELBOW
    HOSE, TEE TO PORT ELBOW
  • 26
    32-8162611 HOSE, TEE TO HEAT EXCHANGER
    HOSE, TEE TO HEAT EXCHANGER
  • 27
    32-816284 HOSE, HEAT EXCHANGER TO OIL COOLER
    HOSE, HEAT EXCHANGER TO OIL COOLER
  • 28
    32-897491 HOSE, THERMOSTAT COVER TO PORT MANIFOLD
    HOSE, THERMOSTAT COVER TO PORT MANIFOLD
  • 29
    32-897301 HOSE, THERMOSTAT COVER TO STARBOARD MANIFOLD
    HOSE, THERMOSTAT COVER TO STARBOARD MANIFOLD
  • 30
    32-8M0062614 HOSE, HEAT EXCHANGER TO MANIFOLD
    HOSE, HEAT EXCHANGER TO MANIFOLD
  • 31
    32-19081 HOSE, OIL COOLER TO OIL COOLER
    HOSE, OIL COOLER TO OIL COOLER
  • 32
    32-190801 HOSE, WATER PUMP TO OIL COOLER (630 SERIES TRANS.)
    HOSE, WATER PUMP TO OIL COOLER (630 SERIES TRANS.)
  • 32
    32-816656 HOSE, WATER PUMP TO OIL COOLER (800 SERIES TRANS.)
    HOSE, WATER PUMP TO OIL COOLER (800 SERIES TRANS.)
  • 33
    32-184272 HOSE, HEAT EXCHANGER TO WATER PUMP
    HOSE, HEAT EXCHANGER TO WATER PUMP
  • 34
    54-815504232 CLAMP
    CLAMP
  • 35
    54-815504220 CLAMP
    CLAMP
