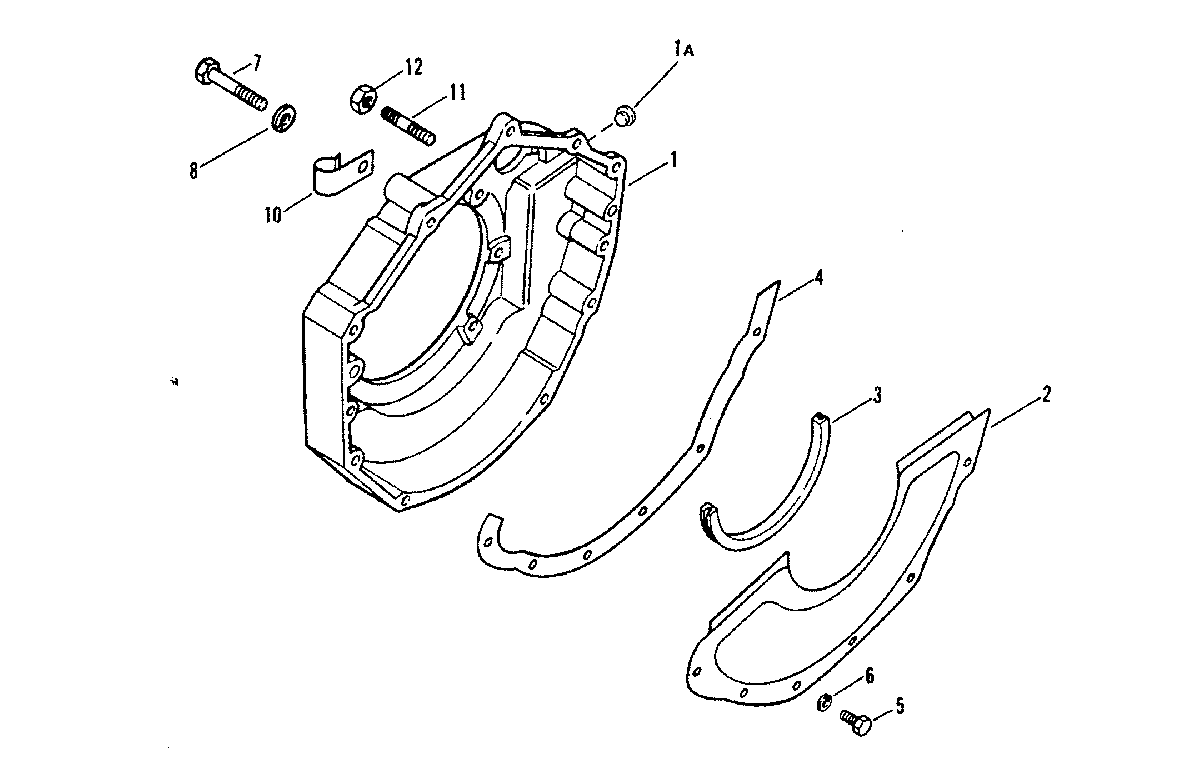

FLYWHEEL HOUSING для Mercruiser - 8.2L MIE W/HURTH GM 502 V-8 1990-1992 0C878221 THRU 0D857199

  • №
    Артикул
    Название
  • 1
    814309A1 FLYWHEEL HOUSING
    FLYWHEEL HOUSING
  • 1A
    19-12304 PLUG
    PLUG
  • 2
    818718A4 COVER ASSEMBLY
    COVER ASSEMBLY
  • 3
    87690 SEAL
    SEAL
  • 4
    27-86015 GASKET
    GASKET
  • 5
    10-41508 SCREW (3/8")
    SCREW (3/8")
  • 5
    10-98253 SCREW (1/2")
    SCREW (1/2")
  • 5
    10-65746 SCREW (3/4")
    SCREW (3/4")
  • 6
    13-26992 LOCKWASHER
    LOCKWASHER
  • 7
    10-37612 SCREW (1-1/4") - 3/8-16 THREADS
    SCREW (1-1/4") - 3/8-16 THREADS
  • 7
    10-47688 SCREW (2-3/4") - 3/8-16 THREADS
    SCREW (2-3/4") - 3/8-16 THREADS
  • 7
    10-34354 SCREW (1-1/2") - 3/8-16 THREADS
    SCREW (1-1/2") - 3/8-16 THREADS
  • 7
    10-34353 SCRWE (1") - 3/8-16 THREADS
    SCRWE (1") - 3/8-16 THREADS
  • 8
    13-35048 LOCKWASHER - 3/8-16 THREADS
    LOCKWASHER - 3/8-16 THREADS
  • 7
    10-47277 SCREW (3/4") - 5/16-24 THREADS
    SCREW (3/4") - 5/16-24 THREADS
  • 8
    13-39107 LOCKWASHER - 5/16-24 THREADS
    LOCKWASHER - 5/16-24 THREADS
  • 10
    54-78945 J-CLAMP
    J-CLAMP
  • 11
    16-861316 STUD
    STUD
  • 12
    11-32219 NUT
    NUT
