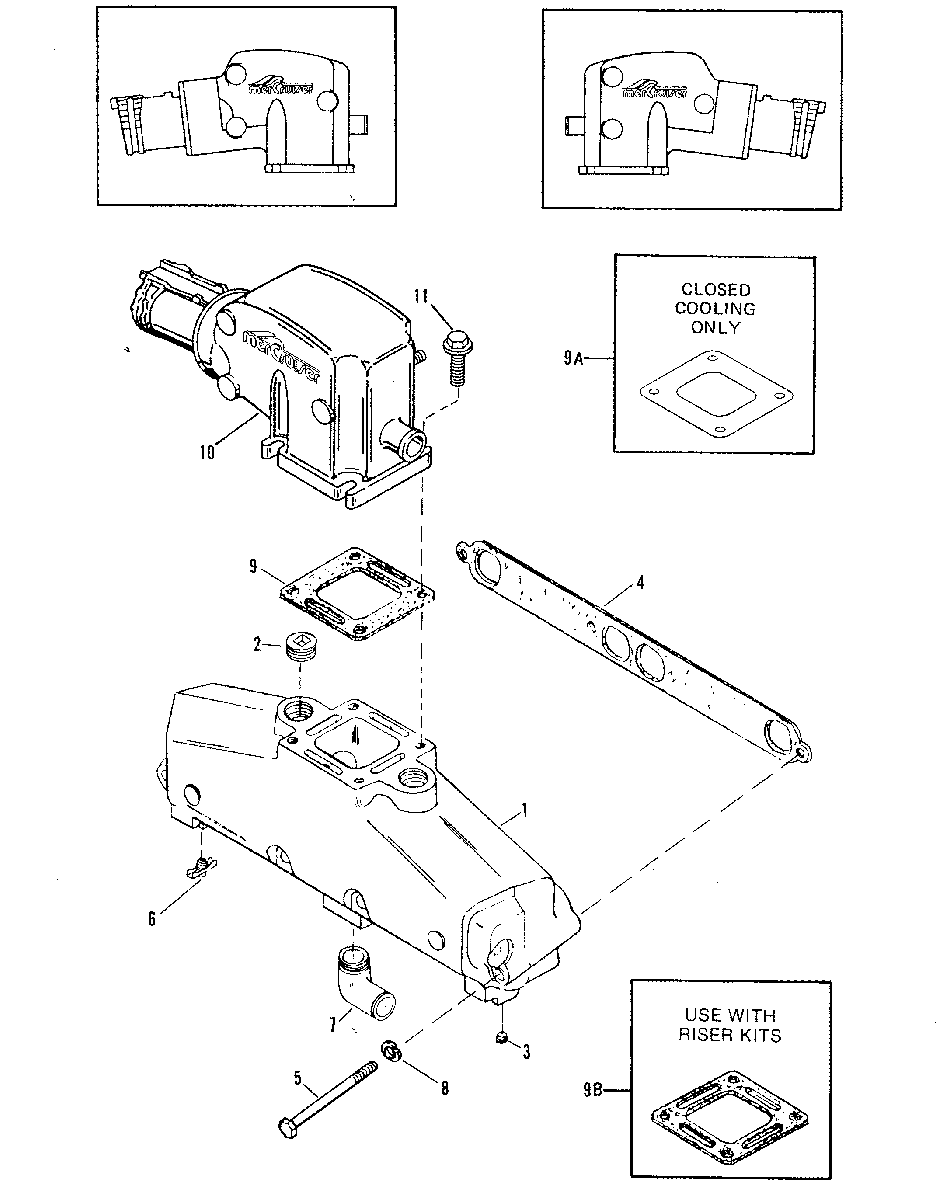

EXHAUST MANIFOLD AND EXHAUST ELBOW для Mercruiser - 8.2L MIE W/HURTH GM 502 V-8 1990-1992 0C878221 THRU 0D857199

  • №
    Артикул
    Название
  • 1
    807078T10 EXHAUST MANIFOLD ASSEMBLY
    EXHAUST MANIFOLD ASSEMBLY
  • 2
    22-416223 PLUG
    PLUG
  • 3
    22-73379 PIPE PLUG
    PIPE PLUG
  • 4
    27-46820 GASKET
    GASKET
  • 5
    10-37612 SCREW (1-1/4")
    SCREW (1-1/4")
  • 5
    10-48424 SCREW (1-5/8")
    SCREW (1-5/8")
  • 6
    22-16951Q1 DRAIN COCK
    DRAIN COCK
  • 7
    22-36305T ELBOW (90)
    ELBOW (90)
  • 7
    22-866725 FITTING (STRAIGHT)
    FITTING (STRAIGHT)
  • 8
    13-35048 LOCKWASHER
    LOCKWASHER
  • 9
    27-863724 GASKET (STANDARD COOLING)
    GASKET (STANDARD COOLING)
  • 9A
    27-8637251 GASKET (CLOSED COOLING)
    GASKET (CLOSED COOLING)
  • 9B
    27-863726 GASKET (USE WITH RISER KITS)
    GASKET (USE WITH RISER KITS)
  • 10
    816900A5 EXHAUST ELBOW ASSEMBLY (SEE DRAWING #1)
    EXHAUST ELBOW ASSEMBLY (SEE DRAWING #1)
  • 10
    816900A7 EXHAUST ELBOW ASSEMBLY (SEE DRAWING #2)
    EXHAUST ELBOW ASSEMBLY (SEE DRAWING #2)
  • 11
    10-865982005 SCREW (1")
    SCREW (1")
  • 11
    10-668631 SCREW (2-1/2)
    SCREW (2-1/2)
