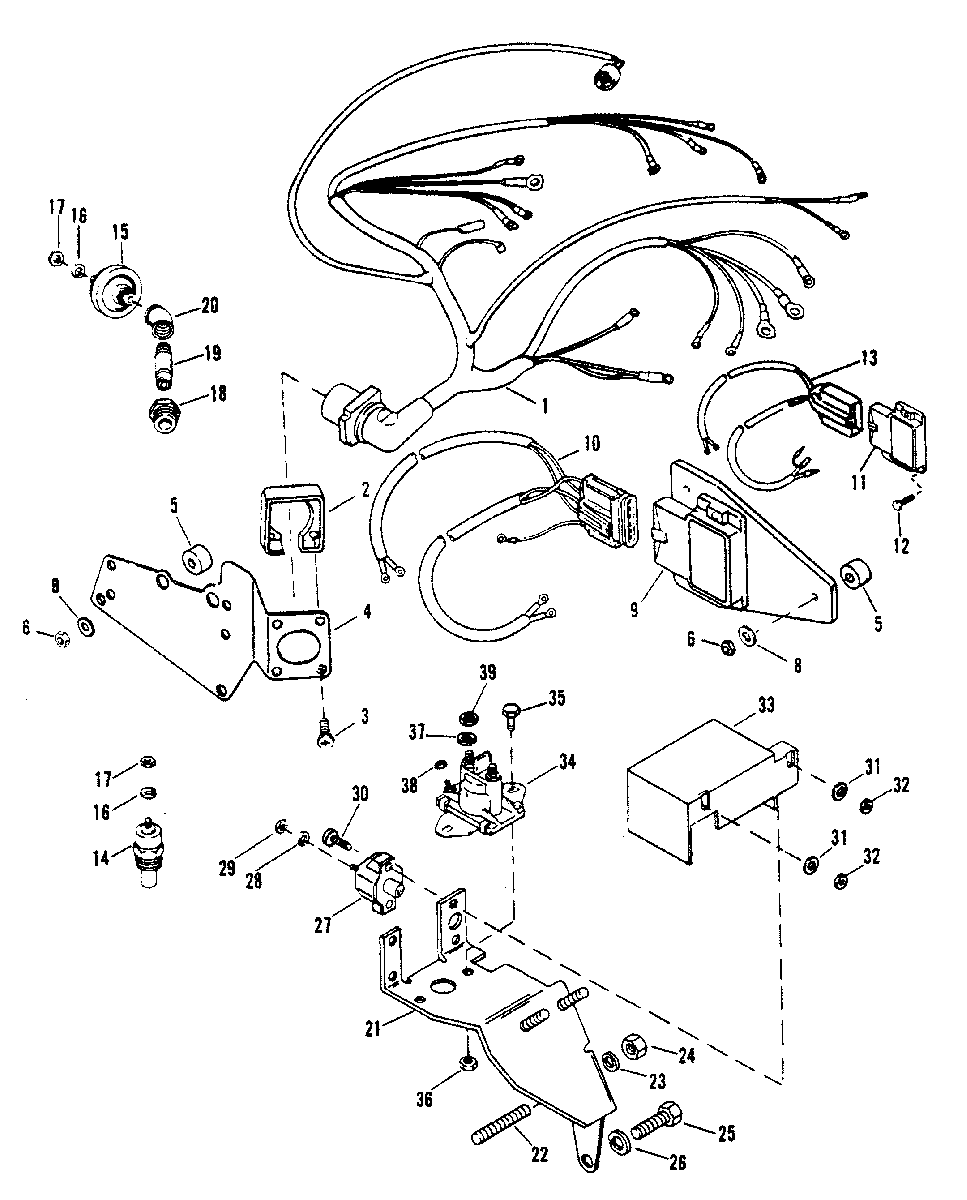

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 8.2L MIE GEN. V GM 502 V-8 1993-1996 0D857200 THRU 0F819619

  • №
    Артикул
    Название
  • 1
    84-94111A13 WIRING HARNESS
    WIRING HARNESS
  • 2
    26079A2 PLATE
    PLATE
  • 3
    10-15001 SCREW
    SCREW
  • 4
    98493A2 BRACKET
    BRACKET
  • 5
    23-92152T SPACER
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
    SPACER
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
  • 6
    11-64015 NUT
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
    NUT
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
  • 8
    12-35462 WASHER
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
    WASHER
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
  • 9
    15248A1 IGNITION MODULE
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
    IGNITION MODULE
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
  • 10
    84-15275A1 HARNESS ASSEMBLY
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
    HARNESS ASSEMBLY
    IGNITION MODULE IS MOUNTED ON EXHAUST ELBOW
  • 5
    23-92152T SPACER
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
    SPACER
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
  • 6
    11-64015 NUT
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
    NUT
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
  • 8
    12-35462 WASHER
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
    WASHER
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
  • 11
    805361T5 IGNITION MODULE
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
    IGNITION MODULE
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
  • 12
    10-12110 SCREW
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
    SCREW
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
  • 13
    84-805363A2 HARNESS
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
    HARNESS
    IGNITION MODULE IS MOUNTED ON DISTRIBUTOR
  • 14
    806490T WATER TEMPERATURE SENDER
    THUNDERBOLT IV IGNITION
    WATER TEMPERATURE SENDER
    THUNDERBOLT IV IGNITION
  • 14
    49734 WATER TEMPERATURE SENDER (DUAL)
    THUNDERBOLT IV IGNITION
    WATER TEMPERATURE SENDER (DUAL)
    THUNDERBOLT IV IGNITION
  • 15
    8M0068784 OIL PRESSURE SENDER
    THUNDERBOLT IV IGNITION
    OIL PRESSURE SENDER
    THUNDERBOLT IV IGNITION
  • 15
    37293T OIL PRESSURE SENDER (DUAL)
    THUNDERBOLT IV IGNITION
    OIL PRESSURE SENDER (DUAL)
    THUNDERBOLT IV IGNITION
  • 16
    13-26996 LOCKWASHER
    THUNDERBOLT IV IGNITION
    LOCKWASHER
    THUNDERBOLT IV IGNITION
  • 17
    11-68219 NUT
    THUNDERBOLT IV IGNITION
    NUT
    THUNDERBOLT IV IGNITION
  • 18
    22-48556 BUSHING
    THUNDERBOLT IV IGNITION
    BUSHING
    THUNDERBOLT IV IGNITION
  • 19
    22-885153 NIPPLE
    THUNDERBOLT IV IGNITION
    NIPPLE
    THUNDERBOLT IV IGNITION
  • 20
    22-46932 ELBOW
    THUNDERBOLT IV IGNITION
    ELBOW
    THUNDERBOLT IV IGNITION
  • 21
    818384T1 BRACKET
    THUNDERBOLT IV IGNITION
    BRACKET
    THUNDERBOLT IV IGNITION
  • 22
    16-64281 STUD
    THUNDERBOLT IV IGNITION
    STUD
    THUNDERBOLT IV IGNITION
  • 23
    13-35048 LOCKWASHER
    THUNDERBOLT IV IGNITION
    LOCKWASHER
    THUNDERBOLT IV IGNITION
  • 24
    11-46335 NUT
    THUNDERBOLT IV IGNITION
    NUT
    THUNDERBOLT IV IGNITION
  • 25
    10-47462 SCREW
    THUNDERBOLT IV IGNITION
    SCREW
    THUNDERBOLT IV IGNITION
  • 26
    13-32993 LOCKWASHER
    THUNDERBOLT IV IGNITION
    LOCKWASHER
    THUNDERBOLT IV IGNITION
  • 27
    88-11178A01 CIRCUIT BREAKER
    THUNDERBOLT IV IGNITION
    CIRCUIT BREAKER
    THUNDERBOLT IV IGNITION
  • 28
    13-26996 LOCKWASHER
    THUNDERBOLT IV IGNITION
    LOCKWASHER
    THUNDERBOLT IV IGNITION
  • 29
    11-68219 NUT
    THUNDERBOLT IV IGNITION
    NUT
    THUNDERBOLT IV IGNITION
  • 30
    10-45862 SCREW (7/8")
    THUNDERBOLT IV IGNITION
    SCREW (7/8")
    THUNDERBOLT IV IGNITION
  • 31
    12-56681 WASHER
    THUNDERBOLT IV IGNITION
    WASHER
    THUNDERBOLT IV IGNITION
  • 32
    11-61356 NUT
    THUNDERBOLT IV IGNITION
    NUT
    THUNDERBOLT IV IGNITION
  • 33
    85-96819T INSULATOR
    THUNDERBOLT IV IGNITION
    INSULATOR
    THUNDERBOLT IV IGNITION
  • 34
    89-96054T STARTER SOLENOID
    THUNDERBOLT IV IGNITION
    STARTER SOLENOID
    THUNDERBOLT IV IGNITION
  • 35
    10-96138 SCREW (5/8")
    THUNDERBOLT IV IGNITION
    SCREW (5/8")
    THUNDERBOLT IV IGNITION
  • 36
    11-20088 NUT
    THUNDERBOLT IV IGNITION
    NUT
    THUNDERBOLT IV IGNITION
  • 37
    13-26992 LOCKWASHER
    THUNDERBOLT IV IGNITION
    LOCKWASHER
    THUNDERBOLT IV IGNITION
  • 38
    11-26419 NUT (8-32)
    THUNDERBOLT IV IGNITION
    NUT (8-32)
    THUNDERBOLT IV IGNITION
  • 39
    11-94330 NUT (1/4-20)
    THUNDERBOLT IV IGNITION
    NUT (1/4-20)
    THUNDERBOLT IV IGNITION
