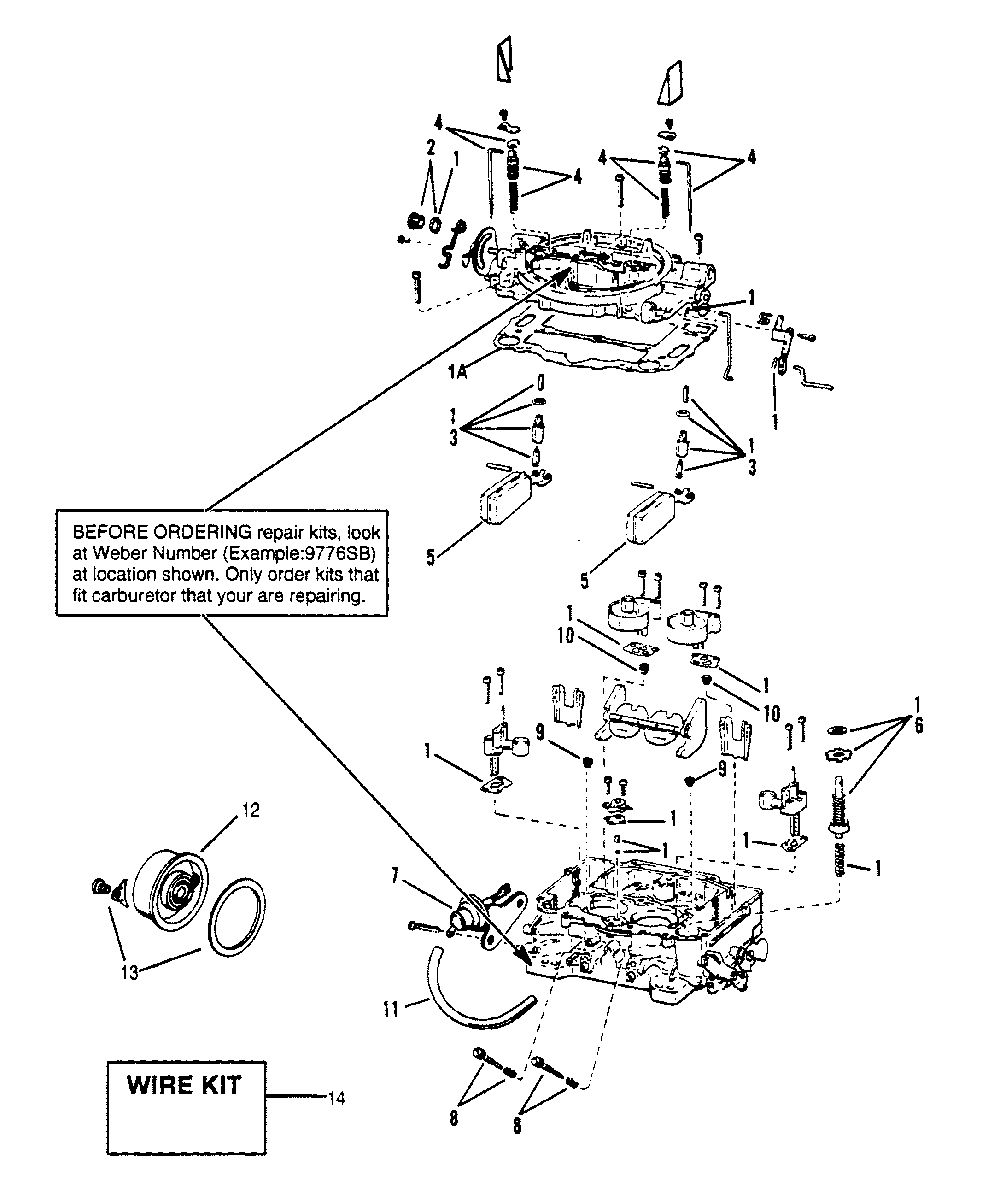

CARBURETOR (WEBER) для Mercruiser - 8.2L MIE GEN. V GM 502 V-8 1993-1996 0D857200 THRU 0F819619

  • №
    Артикул
    Название
  • 1
    8M0120193 OVERHAUL KIT (ALL)
    OVERHAUL KIT (ALL)
  • 1A
    27-809077 GASKET (ALL)
    GASKET (ALL)
  • 2
    811533 INLET FITTING KIT (ALL)
    INLET FITTING KIT (ALL)
  • 3
    8M0120189 INLET NEEDLE & SEAT KIT (ALL)
    INLET NEEDLE & SEAT KIT (ALL)
  • 4
    823431 METERING ROD KIT (ALL)
    METERING ROD KIT (ALL)
  • 5
    8M0120190 FLOAT KIT (ALL)
    FLOAT KIT (ALL)
  • 6
    808701 PUMP PLUNGER KIT (ALL)
    PUMP PLUNGER KIT (ALL)
  • 7
    811538 CHOKE PULL DOWN KIT (AUTOMATIC CHOKE)
    CHOKE PULL DOWN KIT (AUTOMATIC CHOKE)
  • 8
    811539 IDLE MIXTURE SCREW KIT (ALL)
    IDLE MIXTURE SCREW KIT (ALL)
  • 9
    823432 PRIMARY METERING JET (ALL)
    PRIMARY METERING JET (ALL)
  • 10
    811650 SECONDARY METERING JET (ALL)
    SECONDARY METERING JET (ALL)
  • 11
    32-1430165 VACUUM HOSE (AUTOMATIC CHOKE)
    VACUUM HOSE (AUTOMATIC CHOKE)
  • 12
    8M0120194 ELECTRIC CHOKE REPAIR KIT (ELECTRIC CHOKE)
    ELECTRIC CHOKE REPAIR KIT (ELECTRIC CHOKE)
  • 13
    809095 ELECTRIC CHOKE RETAINER KIT (ELECTRIC CHOKE)
    ELECTRIC CHOKE RETAINER KIT (ELECTRIC CHOKE)
  • 14
    84-809471A1 WIRE KIT (ELECTRIC CHOKE)
    WIRE KIT (ELECTRIC CHOKE)
