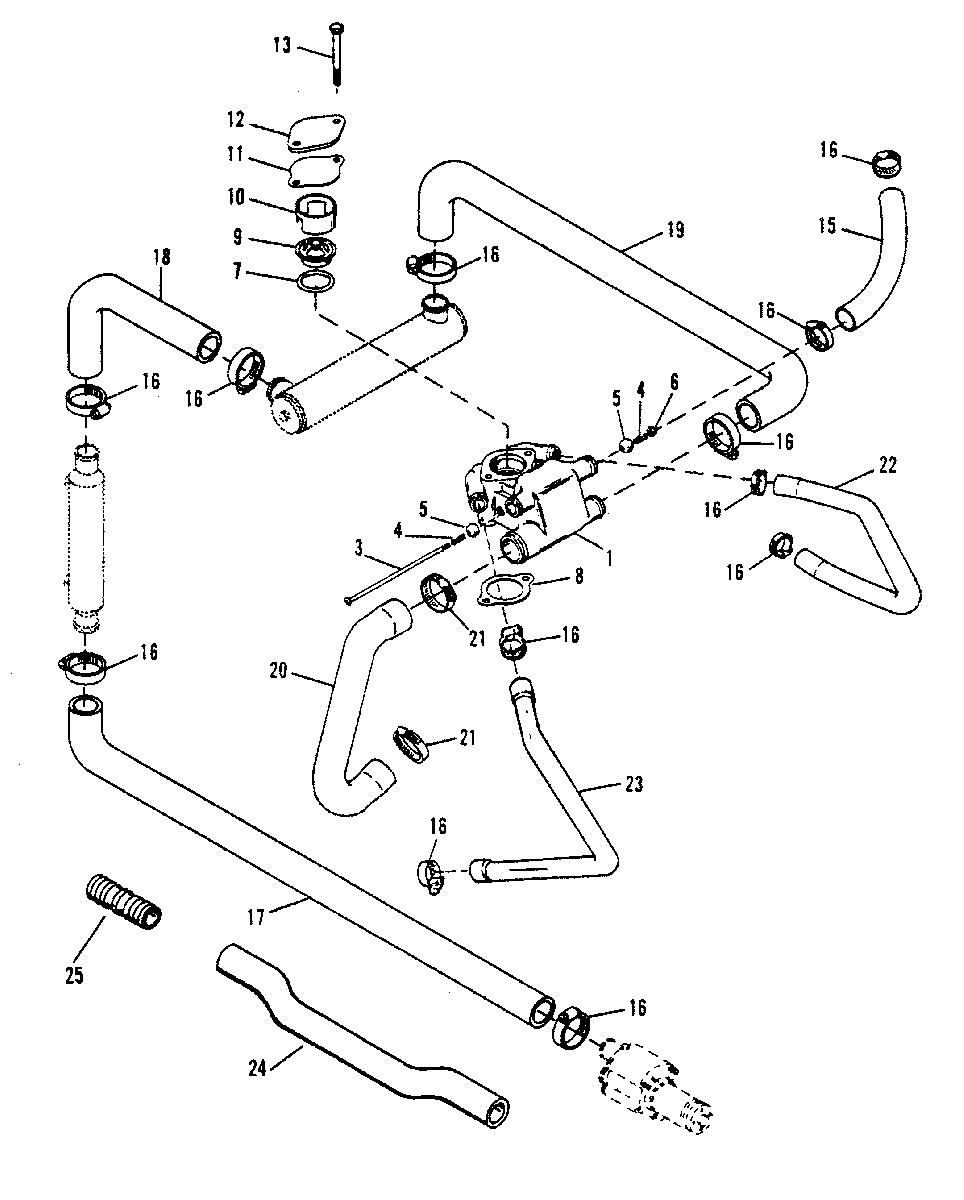

THERMOSTAT HOUSING (STANDARD COOLING) для Mercruiser - 8.2L MIE GEN. V GM 502 V-8 1993-1996 0D857200 THRU 0F819619

  • №
    Артикул
    Название
  • 1
    16413A9 THERMOSTAT HOUSING
    THERMOSTAT HOUSING
  • 3
    10-17989 SCREW
    USE IF APPLICABLE
    SCREW
    USE IF APPLICABLE
  • 4
    24-75533 SPRING
    USE IF APPLICABLE
    SPRING
    USE IF APPLICABLE
  • 5
    30-98475 NYLON BALL
    USE IF APPLICABLE
    NYLON BALL
    USE IF APPLICABLE
  • 6
    11-826709106 NUT
    USE IF APPLICABLE
    NUT
    USE IF APPLICABLE
  • 7
    25-30224 O-RING
    O-RING
  • 8
    27-530451 GASKET
    GASKET
  • 9
    8M0089715 THERMOSTAT (143 DEGREES)
    THERMOSTAT (143 DEGREES)
  • 10
    23-806922 SLEEVE
    SLEEVE
  • 11
    27-331792 GASKET
    GASKET
  • 12
    17494A1 COVER
    COVER
  • 13
    10-60410 SCREW (4-1/4")
    SCREW (4-1/4")
  • 15
    32-817433 HOSE (MOLDED - PORT/STARBOARD)
    HOSE (MOLDED - PORT/STARBOARD)
  • 15
    32-817434 HOSE (MOLDED - PORT/STARBOARD) (V-DRIVE)
    HOSE (MOLDED - PORT/STARBOARD) (V-DRIVE)
  • 16
    54-815504220 CLAMP
    CLAMP
  • 17
    32-821417 HOSE-PUMP TO COOLER
    HOSE-PUMP TO COOLER
  • 18
    32-816658 HOSE-OIL COOLER TO OIL COOLER
    HOSE-OIL COOLER TO OIL COOLER
  • 19
    32-814861 HOSE-OIL COOLER TO THERMOSTAT HOUSING
    HOSE-OIL COOLER TO THERMOSTAT HOUSING
  • 20
    32-897181 HOSE-THERMOSTAT HOUSING TO WATER PUMP
    HOSE-THERMOSTAT HOUSING TO WATER PUMP
  • 21
    54-815504232 CLAMP
    CLAMP
  • 22
    32-973852 HOSE-THERMOSTAT HOUSING (PORT)
    HOSE-THERMOSTAT HOUSING (PORT)
  • 23
    32-807201 HOSE-THERMOSTAT HOUSING (STARBOARD)
    HOSE-THERMOSTAT HOUSING (STARBOARD)
  • 24
    32-897145 HOSE-SEA PUMP INLET
    HOSE-SEA PUMP INLET
  • 25
    805135 COUPLING
    COUPLING
