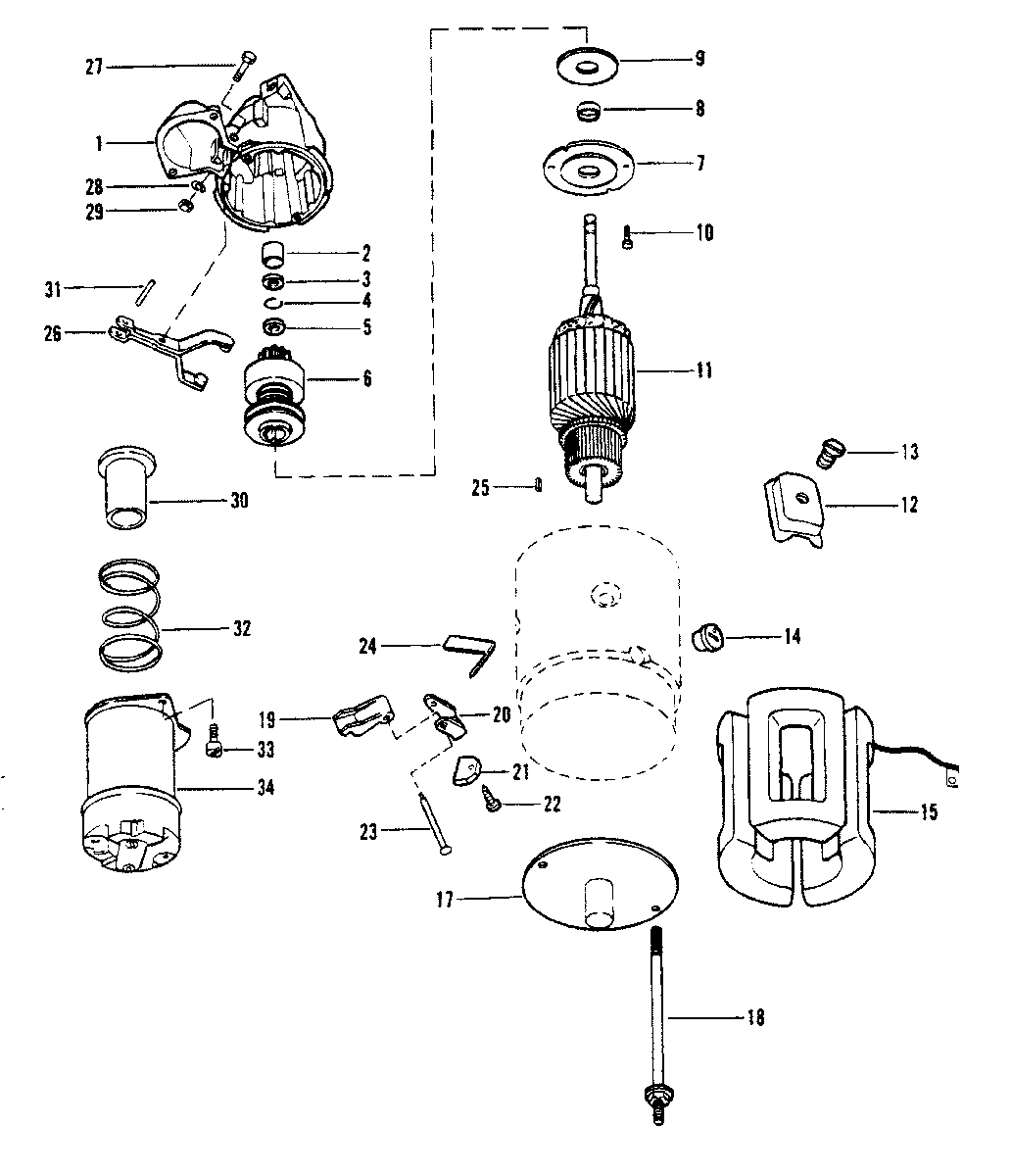

STARTER MOTOR для Mercruiser - 8.2L MIE GEN. V GM 502 V-8 1993-1996 0D857200 THRU 0F819619

  • №
    Артикул
    Название
  • -
    50-808011A05 STARTER MOTOR
    STARTER MOTOR
  • 1
    79206 HOUSING
    HOUSING
  • 2
    23-33278 BUSHLNG
    BUSHLNG
  • 3
    23-809457 THRUST COLLAR
    THRUST COLLAR
  • 4
    53-33290 RETAINING RING
    RETAINING RING
  • 5
    33291 COLLAR
    COLLAR
  • 6
    68608 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 7
    79396 PLATE
    PLATE
  • 8
    23-71694 BUSHLNG
    BUSHLNG
  • 9
    12-68614 WASHER
    WASHER
  • 10
    10-79209 SCREW
    SCREW
  • 11
    68606 ARMATURE
    ARMATURE
  • 12
    N.S.S. POLE SHOE (DELCO REMY #810601)
    POLE SHOE (DELCO REMY #810601)
  • 13
    N.S.S. SCREW (DELCO REMY #1968396)
    SCREW (DELCO REMY #1968396)
  • 14
    N.S.S. GROMMET (DELCO REMY #1846097)
    GROMMET (DELCO REMY #1846097)
  • 15
    N.S.S. FIELD COIL (DELCO REMY #1970467)
    FIELD COIL (DELCO REMY #1970467)
  • 17
    79211 FRAME
    FRAME
  • 18
    N.S.S. THRU BOLT (DELCO REMY #1939970)
    THRU BOLT (DELCO REMY #1939970)
  • 19
    33284 HOLDER
    HOLDER
  • 20
    33283 HOLDER
    HOLDER
  • 21
    33270 BRUSH
    BRUSH
  • 22
    N.S.S. SCREW (DELCO REMY #1967747)
    SCREW (DELCO REMY #1967747)
  • 22
    N.S.S. SCREW (DELCO REMY #443527)
    SCREW (DELCO REMY #443527)
  • 23
    33294 SUPPORT PACKAGE
    SUPPORT PACKAGE
  • 24
    24-33285 SPRING
    SPRING
  • 25
    N.S.S. DOWEL PIN (DELCO REMY #1985696)
    DOWEL PIN (DELCO REMY #1985696)
  • 26
    33297 SHIFT LEVER
    SHIFT LEVER
  • 27
    N.S.S. STUD (DELCO REMY #1814529)
    STUD (DELCO REMY #1814529)
  • 28
    12-68615 WASHER
    WASHER
  • 29
    11-26484 NUT
    NUT
  • 30
    33317 PLUNGER
    PLUNGER
  • 31
    17-79207 PIN
    PIN
  • 32
    24-46889 SPRING
    SPRING
  • 33
    N.S.S. SCREW (DELCO REMY #132255)
    SCREW (DELCO REMY #132255)
  • 34
    89-18080 SOLENOID SWITCH (3-5/8" LONG)
    SOLENOID SWITCH (3-5/8" LONG)
