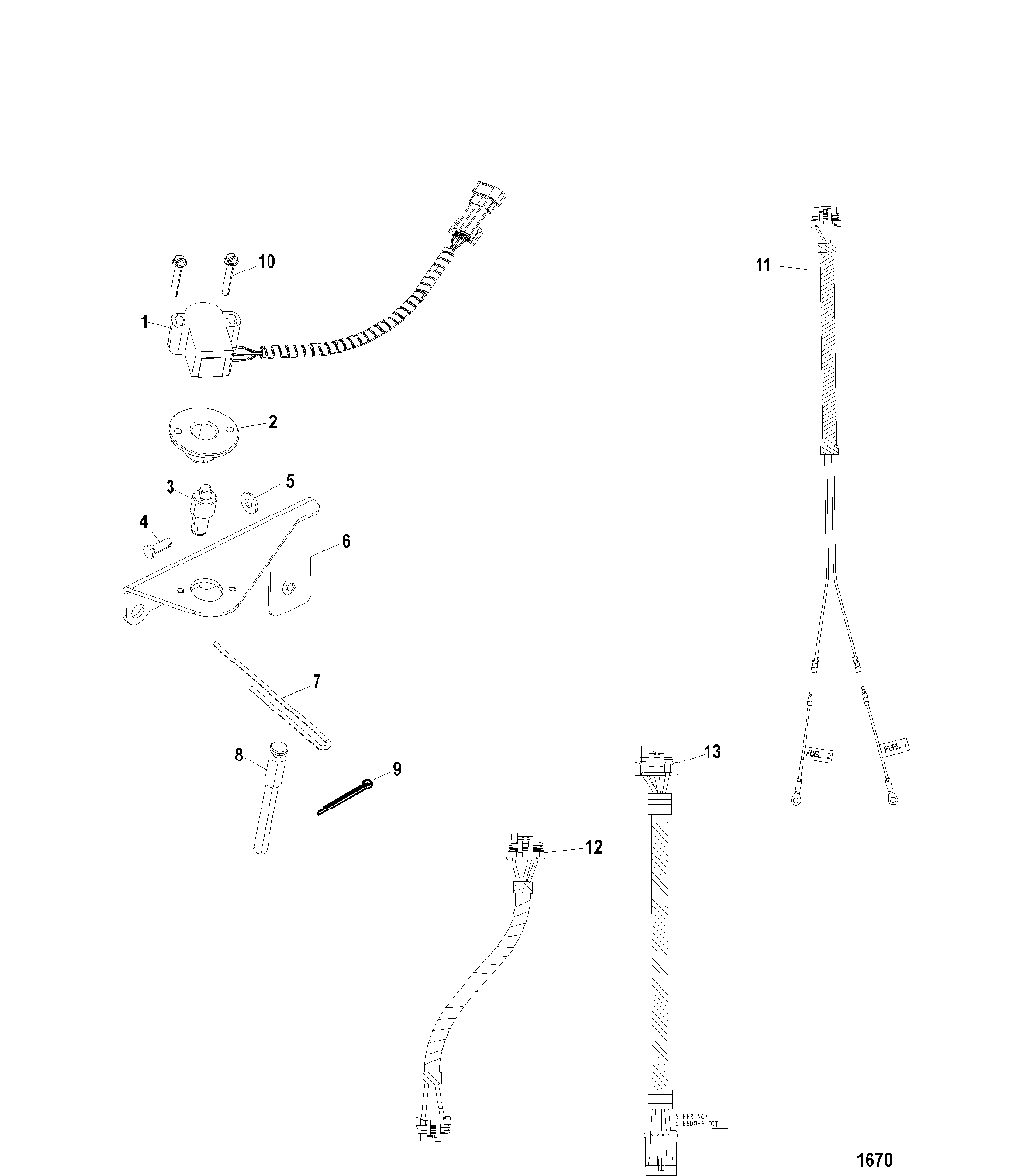

SMARTCRAFT SENSORS AND HARNESSES для Mercruiser - 8.1L INBOARD (Base) 0M026000 THRU 0M319124

  • №
    Артикул
    Название
  • -
    863188A5 SENSOR ASSEMBLY, Steering ( Digital Throttle Shift )
    SENSOR ASSEMBLY, Steering ( Digital Throttle Shift )
  • 1
    863188T SENSOR, Steering
    SENSOR, Steering
  • 2
    863175 ADAPTOR, Sensor
    ADAPTOR, Sensor
  • 3
    863174 DRIVER
    DRIVER
  • 4
    17-863176 PIN
    PIN
  • 5
    12-35044 WASHER, (.281 x .625 x .065) Stainless Steel
    WASHER, (.281 x .625 x .065) Stainless Steel
  • 6
    863178 BRACKET
    BRACKET
  • 7
    863177 GUIDE
    GUIDE
  • 8
    17-8M0138029 PIN, Clevis, Clevis
    PIN, Clevis, Clevis
  • 9
    18-46950 COTTER PIN
    COTTER PIN
  • 10
    10-812987 SCREW, (#10-24 x 1.250)
    SCREW, (#10-24 x 1.250)
  • 11
    84-864218 HARNESS ASSEMBLY ( Fuel Tank )
    HARNESS ASSEMBLY ( Fuel Tank )
  • 12
    84-864219A1 HARNESS ASSEMBLY ( 4 Pin to 4 Pin Adaptor )
    HARNESS ASSEMBLY ( 4 Pin to 4 Pin Adaptor )
  • 13
    84-863931A1 HARNESS ASSEMBLY ( 10 Pin to 4 Pin )
    HARNESS ASSEMBLY ( 10 Pin to 4 Pin )
  • N/S
    84-884515A3 HARNESS ASSEMBLY, Adaptor
    (CAN Line)
    HARNESS ASSEMBLY, Adaptor
    (CAN Line)
