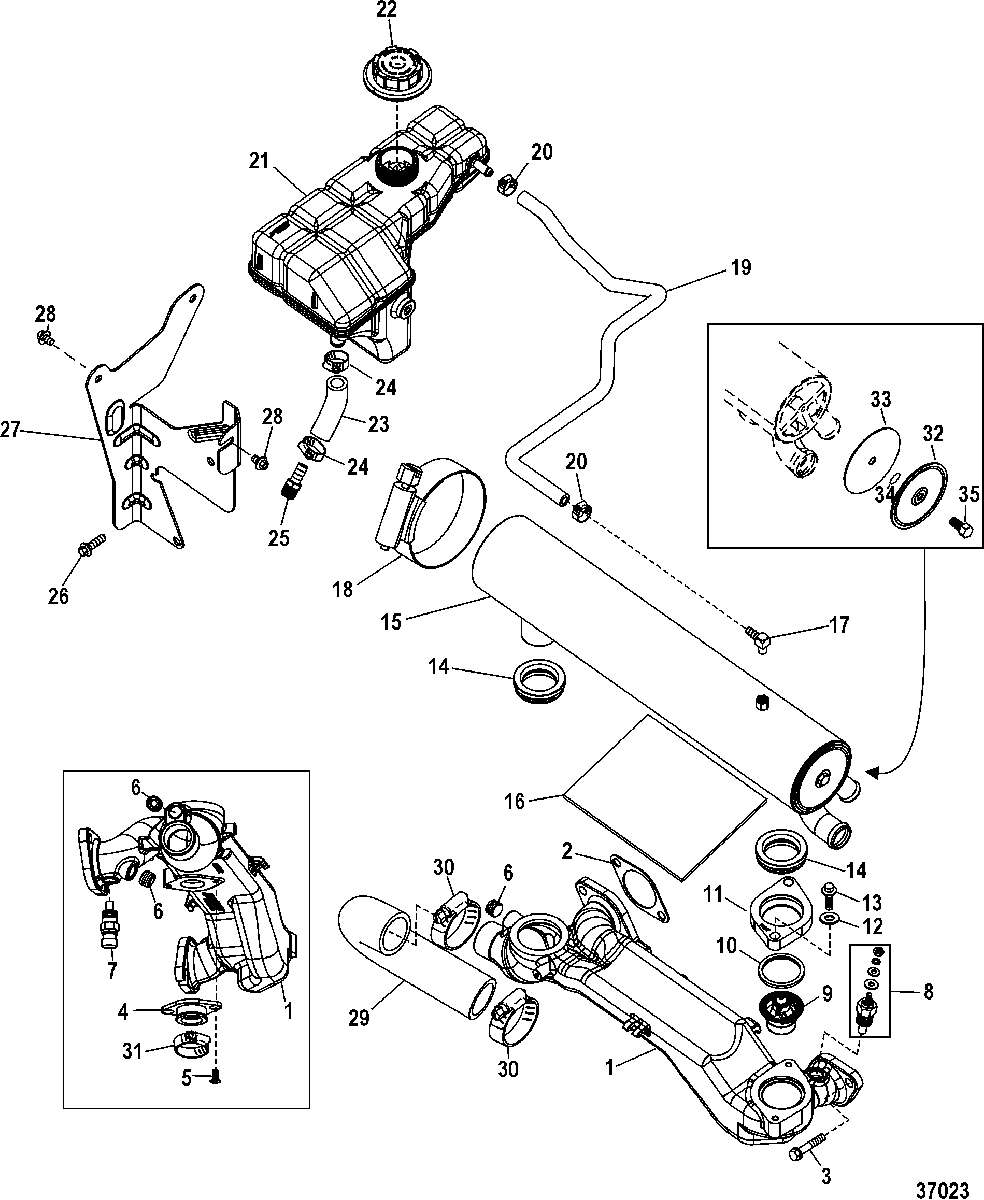

CLOSED COOLING SYSTEM для Mercruiser - 8.1L INBOARD (Base) 0M026000 THRU 0M319124

  • №
    Артикул
    Название
  • 1
    863771T CROSSOVER, Coolant
    CROSSOVER, Coolant
  • 2
    27-881620001 GASKET, Cylinder Head to Crossover
    GASKET, Cylinder Head to Crossover
  • 3
    10-881593 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 4
    26-861947 SEAL
    SEAL
  • 5
    10-863609 SCREW, (M6 x 14)
    SCREW, (M6 x 14)
  • 6
    22-12524 PLUG, (.375-18 x .475) Brass, Pipe
    PLUG, (.375-18 x .475) Brass, Pipe
  • 7
    805218T SENSOR, Coolant Temperature
    SENSOR, Coolant Temperature
  • 8
    806490T SENDER, Temerature
    SENDER, Temerature
  • 8
    49734 SENDER, Temperature, Dual Station
    SENDER, Temperature, Dual Station
  • 9
    8M0076464 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 10
    25-865078 SEAL, Thermostat
    SEAL, Thermostat
  • 11
    861949T RETAINER, Thermostat
    RETAINER, Thermostat
  • 12
    12-12038 WASHER
    WASHER
  • 13
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 14
    26-865066 SEAL, Heat Exchanger to Crossover
    SEAL, Heat Exchanger to Crossover
  • 15
    863903A01 HEAT EXCHANGER
    HEAT EXCHANGER
  • NS
    37-863355 DECAL, Caution, Heat Exchanger
    DECAL, Caution, Heat Exchanger
  • 16
    863392 PAD, Heat Exchanger
    PAD, Heat Exchanger
  • 17
    22-629101 FITTING, Elbow - 90 Degree (.125-27)
    FITTING, Elbow - 90 Degree (.125-27)
  • 18
    54-815504280 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 19
    32-863303 HOSE, Coolant Bleed
    HOSE, Coolant Bleed
  • 20
    54-815504206 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 21
    861944A1 RESERVOIR, Coolant
    RESERVOIR, Coolant
  • 22
    862863 CAP, Coolant Reservoir
    CAP, Coolant Reservoir
  • 23
    32-863304 HOSE, Reservoir to Crossover
    HOSE, Reservoir to Crossover
  • 24
    54-815504212 CLAMP, Worm Gear, Hose
    CLAMP, Worm Gear, Hose
  • 25
    22-8552141 FITTING, Straight Hose
    FITTING, Straight Hose
  • 26
    10-863388 SCREW, (M10 x 16)
    SCREW, (M10 x 16)
  • 27
    862986 BRACKET, Coolant Reservoir
    BRACKET, Coolant Reservoir
  • 28
    10-81893412 SCREW, (M8 x 12)
    SCREW, (M8 x 12)
  • 29
    32-8619521 HOSE, Crossover to Pump
    HOSE, Crossover to Pump
  • 30
    54-815504232 CLAMP, Worm Gear (2.50 Diameter), Hose
    CLAMP, Worm Gear (2.50 Diameter), Hose
  • 31
    54-815504221 CLAMP, Hose
    CLAMP, Hose
  • 32
    8M0036623 COVER, Heat Exchanger End
    (Use W/ 4 In. Dia. Heat Exchanger)
    COVER, Heat Exchanger End
    (Use W/ 4 In. Dia. Heat Exchanger)
  • 32
    891717 COVER, Heat Exchanger End
    (Use W/ 3.75 In Dia. Heat Exchanger)
    COVER, Heat Exchanger End
    (Use W/ 3.75 In Dia. Heat Exchanger)
  • 33
    27-8M0036987 GASKET, Heat Exchanger Cover
    (Use W/ 4 In. Dia. Heat Exchanger)
    GASKET, Heat Exchanger Cover
    (Use W/ 4 In. Dia. Heat Exchanger)
  • 33
    27-891716 GASKET, Heat Exchanger Cover
    (Use W/ 3.75 In. Dia. Heat Exchanger)
    GASKET, Heat Exchanger Cover
    (Use W/ 3.75 In. Dia. Heat Exchanger)
  • 34
    25-8M0039163 O-RING, Special
    O-RING, Special
  • 35
    10-814877 BOLT
    BOLT
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
