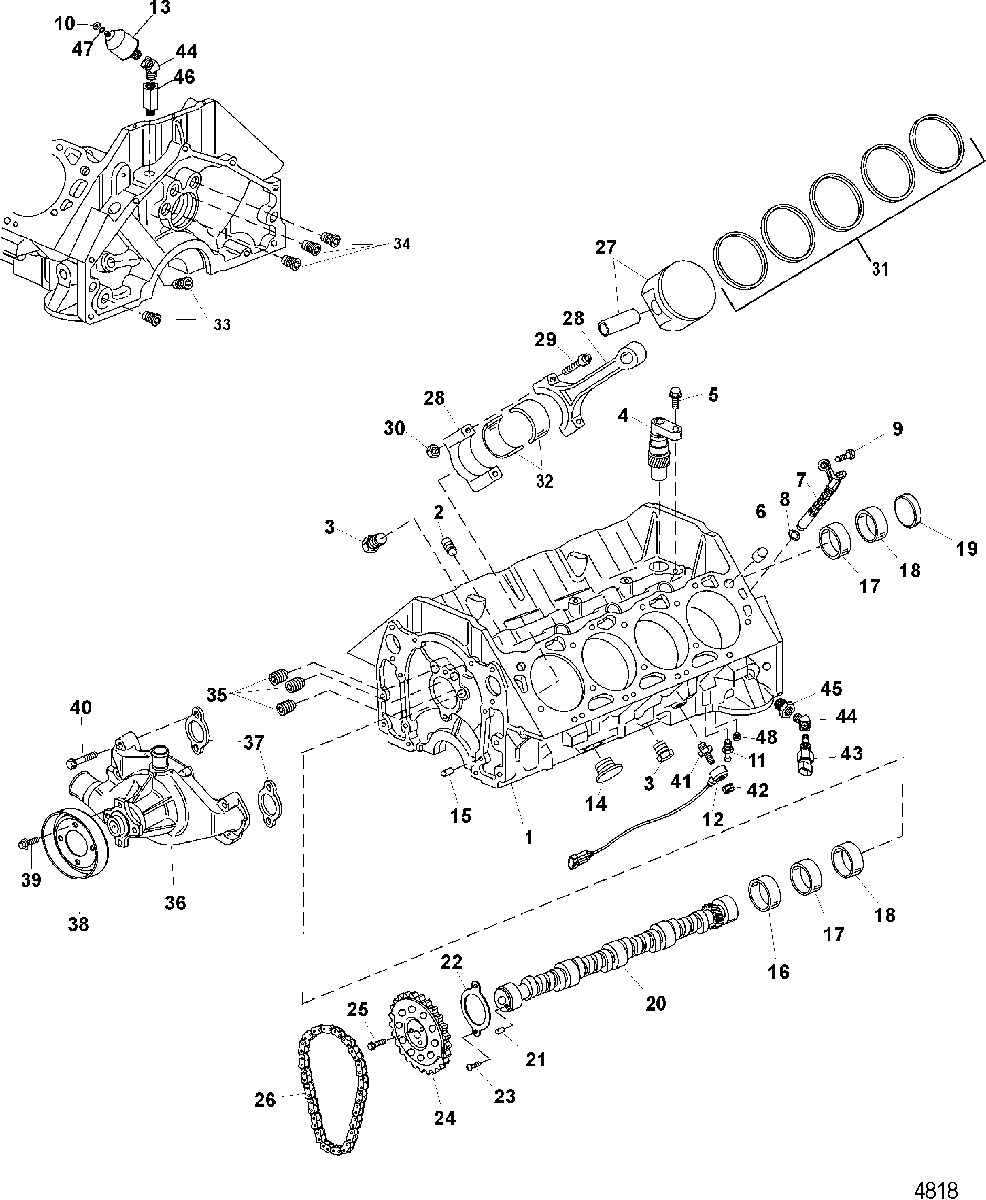

CYLINDER BLOCK, Camshaft and Pistons для Mercruiser - 8.1L INBOARD (Base) 0M026000 THRU 0M319124
-
№АртикулНазвание
-
-8M0086000 LONG BLOCK (Base)
SN# 0M315052 & BelowLONG BLOCK (Base)
SN# 0M315052 & Below -
-8M0086000 LONG BLOCK (Base)
SN# 0M315053 THRU 0M316947LONG BLOCK (Base)
SN# 0M315053 THRU 0M316947 -
-8M0086000 LONG BLOCK (Base)
(GM Code 4XY) SN# 0M316948 & UpLONG BLOCK (Base)
(GM Code 4XY) SN# 0M316948 & Up -
-8M0086001 LONG BLOCK (H.O.)
SN# 0M315241 & BelowLONG BLOCK (H.O.)
SN# 0M315241 & Below -
-8M0086001 LONG BLOCK (H.O.)
SN# 0M315242 THRU 0M316893LONG BLOCK (H.O.)
SN# 0M315242 THRU 0M316893 -
-8M0086001 LONG BLOCK ( H.O. )
(GM Code 4XF) SN# 0M316894 & UpLONG BLOCK ( H.O. )
(GM Code 4XF) SN# 0M316894 & Up -
1NSS NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly)NOT SOLD SEPARATE, BLOCK-Engine
(Order Longblock Assembly) -
222-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
3NSS NOT SOLD SEPARATE, PLUG-Coolant DrainNOT SOLD SEPARATE, PLUG-Coolant Drain
-
48M0114791 DRIVE, Oil Pump, Oil PumpDRIVE, Oil Pump, Oil Pump
-
510-881595 SCREW, (M6 x 21), Oil PumpSCREW, (M6 x 21), Oil Pump
-
617-52190 PIN, Dowel, Cylinder Head LocatingPIN, Dowel, Cylinder Head Locating
-
7892617 SENSOR, Crankshaft PositionSENSOR, Crankshaft Position
-
8NSS NOT SOLD SEPARATE, SEAL-Crankshaft Position SensorNOT SOLD SEPARATE, SEAL-Crankshaft Position Sensor
-
910-881595 SCREW, (M6 x 21), Crankshaft Position SensorSCREW, (M6 x 21), Crankshaft Position Sensor
-
1011-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1122-805563 CONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare), Oil HoseCONNECTOR, (.500 Inch NPTF To .500 Inch Inverted Flare), Oil Hose
-
128M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
138M0068784 SENDER ASSEMBLY, Oil Pressure
(Single Station)SENDER ASSEMBLY, Oil Pressure
(Single Station) -
1337293T SENDER ASSEMBLY, Oil Pressure
(Dual Station)SENDER ASSEMBLY, Oil Pressure
(Dual Station) -
1422-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
1422-36373 PLUG, (.375-18 x .42), Pipe - Oil GalleyPLUG, (.375-18 x .42), Pipe - Oil Galley
-
1422-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
1422-881568 PLUG, Engine CoolantPLUG, Engine Coolant
-
1422-881569 PLUG, (.250-18 x .54), Engine CoolantPLUG, (.250-18 x .54), Engine Coolant
-
1517-843378 PIN, Dowel (1/4 In. Diameter) (1/4 x 5/8)PIN, Dowel (1/4 In. Diameter) (1/4 x 5/8)
-
1623-85684 BEARING, Camshaft (pos 1)BEARING, Camshaft (pos 1)
-
1723-85684 BEARING, Camshaft (pos 2 / 5)BEARING, Camshaft (pos 2 / 5)
-
1823-85684 BEARING, Camshaft (pos 3 / 4)BEARING, Camshaft (pos 3 / 4)
-
1919-94140 EXPANSION PLUG, Camshaft Bearing HoleEXPANSION PLUG, Camshaft Bearing Hole
-
20431-8M0133004 CAMSHAFT
(Base)CAMSHAFT
(Base) -
20431-8M0133005 CAMSHAFT
(H.O.)CAMSHAFT
(H.O.) -
2117-843378 PIN, Dowel (1/4 In. Diameter), Camshaft sprocket LocationPIN, Dowel (1/4 In. Diameter), Camshaft sprocket Location
-
22845941 RETAINER, CamshaftRETAINER, Camshaft
-
2310-881588 SCREWSCREW
-
2443-881616 SPROCKET, Camshaft
(GM Block Code 1XY,1XF)SPROCKET, Camshaft
(GM Block Code 1XY,1XF) -
24884037 SPROCKET, Camshaft
(GM Block Code 2XY,2XF, 3XY, 3XF)SPROCKET, Camshaft
(GM Block Code 2XY,2XF, 3XY, 3XF) -
24892640001 SPROCKET, Camshaft (Base)
(GM Code 4XY) SN# 0M316948 & UpSPROCKET, Camshaft (Base)
(GM Code 4XY) SN# 0M316948 & Up -
24892640001 SPROCKET, Camshaft (H.O.)
(GM Code 4XF) SN# 0M316894 & UpSPROCKET, Camshaft (H.O.)
(GM Code 4XF) SN# 0M316894 & Up -
2510-881570 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
26881626 CHAIN, Camshaft TimingCHAIN, Camshaft Timing
-
27735-881592002 PISTON ASSEMBLY, Standard
(Std)(Stbd)PISTON ASSEMBLY, Standard
(Std)(Stbd) -
27735-883515002 PISTON ASSEMBLY, Standard
(Std)(Port)PISTON ASSEMBLY, Standard
(Std)(Port) -
27735-881596002 PISTON ASSEMBLY, .030 Oversize
(.030)(Stbd)PISTON ASSEMBLY, .030 Oversize
(.030)(Stbd) -
27735-881597002 PISTON ASSEMBLY, .030 Oversize
(.030)(Port)PISTON ASSEMBLY, .030 Oversize
(.030)(Port) -
28NSS NOT SOLD SEPARATE, ROD-Connecting
(Not Sold Seperately)NOT SOLD SEPARATE, ROD-Connecting
(Not Sold Seperately) -
2910-883917 SCREW, Connecting RodSCREW, Connecting Rod
-
3011-883918 NUT, Connecting RodNUT, Connecting Rod
-
3123-8832391 BEARING, Connecting RodBEARING, Connecting Rod
-
3239-881601 RING KIT, Piston
(Std)RING KIT, Piston
(Std) -
3239-881602 RING KIT, Piston
(+.030)RING KIT, Piston
(+.030) -
3322-881567001 PLUG, Oil GalleyPLUG, Oil Galley
-
3422-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
3522-48341 PLUG, (.125-27 x .375), Oil GalleyPLUG, (.125-27 x .375), Oil Galley
-
3522-36373 PLUG, (.375-18 x .42), Pipe - Oil GalleyPLUG, (.375-18 x .42), Pipe - Oil Galley
-
3522-32561 PLUG, (.250-18 x .41), Oil GalleyPLUG, (.250-18 x .41), Oil Galley
-
3646-8M0113736 PUMP, CirculatingPUMP, Circulating
-
3727-881603001 GASKET, Circulating PumpGASKET, Circulating Pump
-
38862583 PULLEY, Circulating PumpPULLEY, Circulating Pump
-
3910-4010716 SCREW, (M8 x 16)SCREW, (M8 x 16)
-
4010-881576 SCREW, (M10 x 65)SCREW, (M10 x 65)
-
4010-884036 SCREW, (M10 x 95)SCREW, (M10 x 95)
-
4116-862915 STUD, (.250-18/M10 Special), Knock SensorSTUD, (.250-18/M10 Special), Knock Sensor
-
4211-826292 NUT, (M10) Brass/Nickel Plated, Knock SensorNUT, (M10) Brass/Nickel Plated, Knock Sensor
-
43881879T11 SENSOR, (0 - 100 PSI), Oil PressureSENSOR, (0 - 100 PSI), Oil Pressure
-
4422-8M0123050 FITTING, Elbow (45 Degree)FITTING, Elbow (45 Degree)
-
4522-64013 FITTING, (.375 Male To .125 Female), ReducerFITTING, (.375 Male To .125 Female), Reducer
-
4622-805059 FITTING, Reducer BushingFITTING, Reducer Bushing
-
4713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
4822-38407 PLUG, (.500-14), PipePLUG, (.500-14), Pipe
