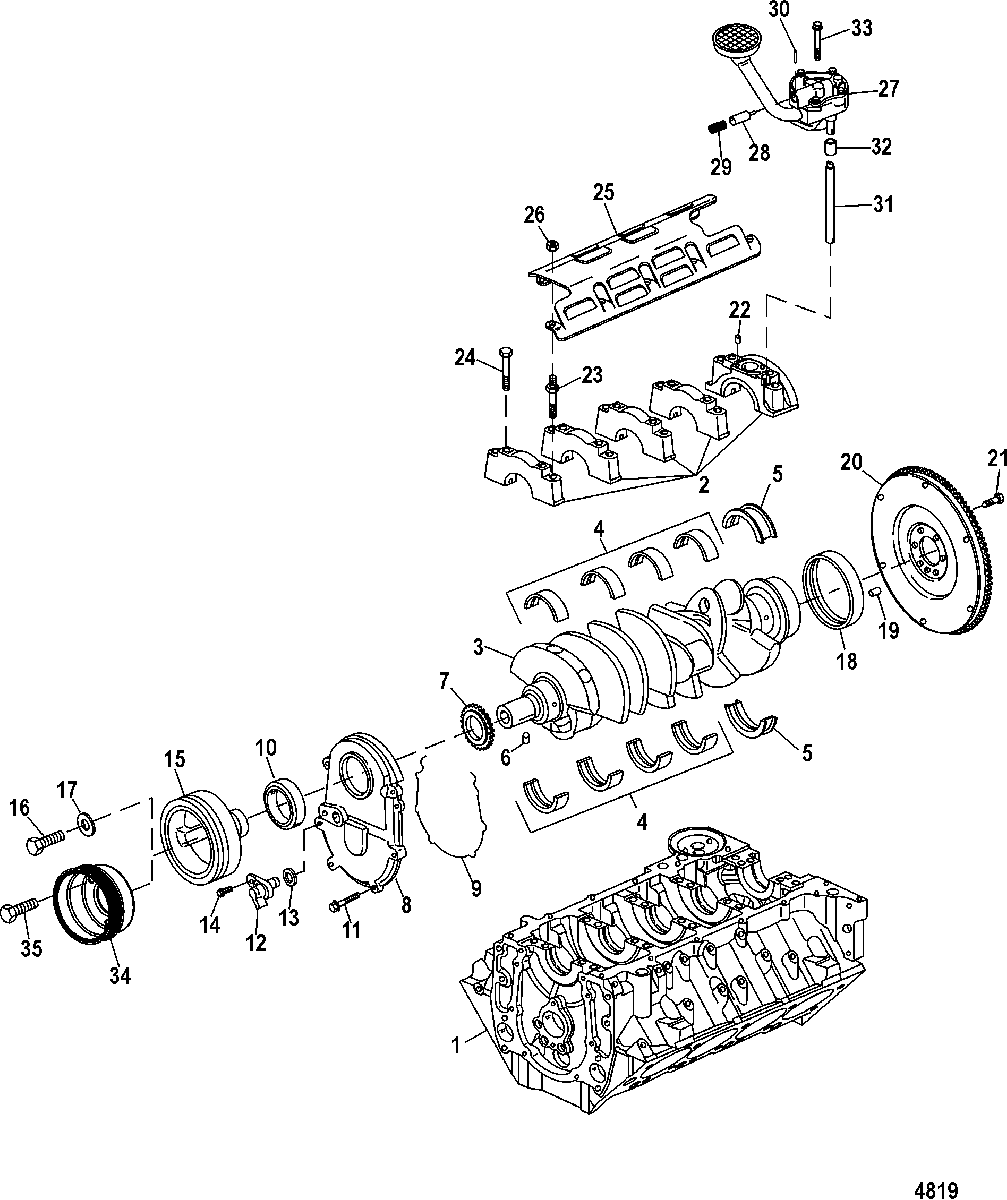

CYLINDER BLOCK, Crankshaft, Oil Pump and Front Cover для Mercruiser - 8.1L INBOARD (Base) 0M026000 THRU 0M319124

  • №
    Артикул
    Название
  • -
    8M0086000 LONG BLOCK (Base)
    SN# 0M315052 & Below
    LONG BLOCK (Base)
    SN# 0M315052 & Below
  • -
    8M0086000 LONG BLOCK (Base)
    SN# 0M315053 THRU 0M316947
    LONG BLOCK (Base)
    SN# 0M315053 THRU 0M316947
  • -
    8M0086000 LONG BLOCK (Base)
    (GM Code 4XY) SN# 0M316948 & Up
    LONG BLOCK (Base)
    (GM Code 4XY) SN# 0M316948 & Up
  • -
    8M0086001 LONG BLOCK (H.O.)
    SN# 0M315241 & Below
    LONG BLOCK (H.O.)
    SN# 0M315241 & Below
  • -
    8M0086001 LONG BLOCK (H.O.)
    SN# 0M315242 THRU 0M316893
    LONG BLOCK (H.O.)
    SN# 0M315242 THRU 0M316893
  • -
    8M0086001 LONG BLOCK (H.O.)
    (GM Code 4XF) SN# 0M316894 & Up
    LONG BLOCK (H.O.)
    (GM Code 4XF) SN# 0M316894 & Up
  • 1
    NSS NOT SOLD SEPARATE, BLOCK-Engine
    (Order Longblock Assembly)
    NOT SOLD SEPARATE, BLOCK-Engine
    (Order Longblock Assembly)
  • 2
    NSS NOT SOLD SEPARATE, CAP-Crankshaft Bearing
    NOT SOLD SEPARATE, CAP-Crankshaft Bearing
  • 3
    400-8M0084521 CRANKSHAFT (Base)
    CRANKSHAFT (Base)
  • 3
    400-8M0084521 CRANKSHAFT (H.O.)
    (GM Block Code T10153XF and Below)
    CRANKSHAFT (H.O.)
    (GM Block Code T10153XF and Below)
  • 3
    400-8M0084521 CRANKSHAFT (H.O.)
    (GM Block Code T10163XF and Up)
    CRANKSHAFT (H.O.)
    (GM Block Code T10163XF and Up)
  • 4
    23-884702 BEARING KIT, Crankshaft
    BEARING KIT, Crankshaft
  • 5
    23-881607001 BEARING KIT, Crankshaft Main Thrust
    BEARING KIT, Crankshaft Main Thrust
  • 6
    17-881605 PIN, Balancer Locating
    PIN, Balancer Locating
  • 7
    43-881655 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 8
    881656 COVER, Front
    SN# 0M316893 & Below
    COVER, Front
    SN# 0M316893 & Below
  • 8
    892616001 COVER, Front (Base)
    (GM Code 4XY) SN# 0M316948 & Up
    COVER, Front (Base)
    (GM Code 4XY) SN# 0M316948 & Up
  • 8
    892616001 COVER, Front (H.O.)
    (GM Code 4XF) SN# 0M316894 & Up
    COVER, Front (H.O.)
    (GM Code 4XF) SN# 0M316894 & Up
  • 9
    27-881604 GASKET, Front Cover
    GASKET, Front Cover
  • 10
    26-881613001 SEAL, Crankshaft front Oil
    SEAL, Crankshaft front Oil
  • 11
    10-8M0069806 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 12
    881666 SENSOR, Camshaft Position
    (GM Block Code 1XY, 1XF)
    SENSOR, Camshaft Position
    (GM Block Code 1XY, 1XF)
  • 12
    881666 SENSOR, Camshaft Position
    (GM Block Code 2XY, 2XF, 3XY, 3XF)
    SENSOR, Camshaft Position
    (GM Block Code 2XY, 2XF, 3XY, 3XF)
  • 12
    892615002 SENSOR, Camshaft Position (Base)
    (GM Code 4XY) SN# 0M316948 & Up
    SENSOR, Camshaft Position (Base)
    (GM Code 4XY) SN# 0M316948 & Up
  • 12
    892615002 SENSOR, Camshaft Position (H.O.)
    (GM Code 4XF) SN# 0M316894 & Up
    SENSOR, Camshaft Position (H.O.)
    (GM Code 4XF) SN# 0M316894 & Up
  • 13
    NSS NOT SOLD SEPARATE, SEAL-Camshaft Position Sensor
    NOT SOLD SEPARATE, SEAL-Camshaft Position Sensor
  • 14
    10-883923 SCREW, (M6 x 20)
    SCREW, (M6 x 20)
  • 15
    891769 BALANCER, Crankshaft
    (Base)
    BALANCER, Crankshaft
    (Base)
  • 15
    891769 BALANCER, Crankshaft
    (H.O.)
    BALANCER, Crankshaft
    (H.O.)
  • 16
    10-881587 SCREW, (M16 x 1.5)
    SCREW, (M16 x 1.5)
  • 17
    12-881614 WASHER
    WASHER
  • 18
    26-881608001 SEAL, Crankshaft Rear Oil
    SEAL, Crankshaft Rear Oil
  • 19
    17-881609 PIN, Flywheel Locating
    PIN, Flywheel Locating
  • 20
    200-8M0083318 FLYWHEEL
    (Base & HO)
    FLYWHEEL
    (Base & HO)
  • 21
    10-881578 BOLT
    BOLT
  • 22
    17-843378 PIN, Dowel (1/4 In. Diameter), Oil Pump Locating
    PIN, Dowel (1/4 In. Diameter), Oil Pump Locating
  • 23
    16-881615 STUD, Crankshaft Bearing Cap
    STUD, Crankshaft Bearing Cap
  • 24
    10-881580 SCREW, (M12 x 89)
    SCREW, (M12 x 89)
  • 25
    883236001 DEFLECTOR, Oil
    DEFLECTOR, Oil
  • 26
    11-881579001 NUT
    NUT
  • 27
    8M0069808 PUMP, With Screen, Oil
    PUMP, With Screen, Oil
  • 28
    17-881611 PIN, Oil Pump
    PIN, Oil Pump
  • 29
    24-881610 SPRING, Oil Pump
    SPRING, Oil Pump
  • 30
    8M0069808 VALVE, Pressure Relief
    VALVE, Pressure Relief
  • 31
    8M0046892 SHAFT AND RETAINER, Oil Pump Drive
    SHAFT AND RETAINER, Oil Pump Drive
  • 32
    23-36183 RETAINER, Oil Pump Drive
    RETAINER, Oil Pump Drive
  • 33
    10-881585 SCREW, (M10 x 60)
    SCREW, (M10 x 60)
  • 34
    862349 PULLEY, Crankshaft
    PULLEY, Crankshaft
  • 35
    10-4009025 SCREW, (M10 x 25) Stainless Steel
    SCREW, (M10 x 25) Stainless Steel
