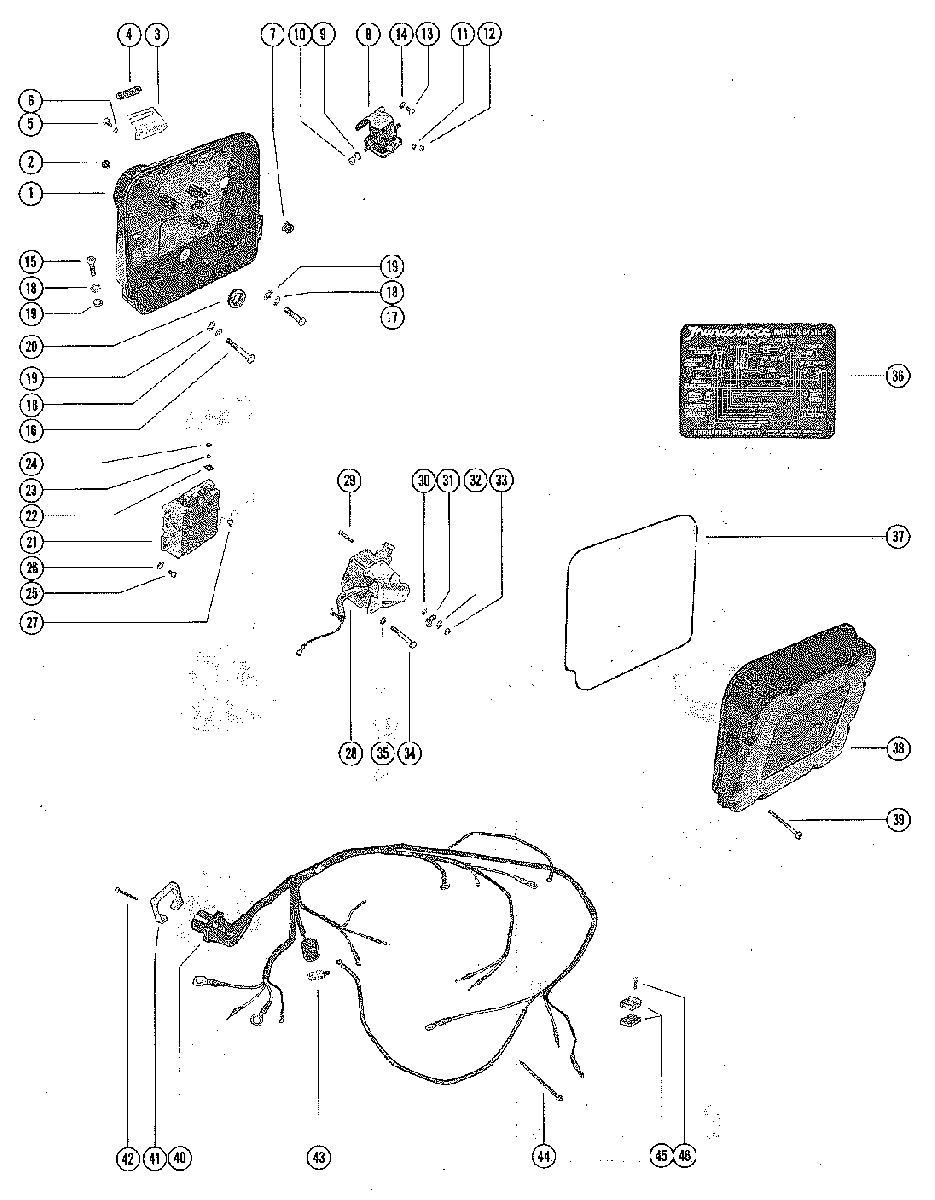

WIRING HARNESS, SWITCH BOX AND IGNITION COIL для Mercruiser - 390 MIE GM 482 V-8 1969-1970 2781129 THRU 2825059

  • №
    Артикул
    Название
  • 1
    56717 PANEL, ELECTRIC
    PANEL, ELECTRIC
  • 2
    19-32298 PLUG, ELECTRIC PANEL
    PLUG, ELECTRIC PANEL
  • 3
    47763 BRACKET, RETAINER - HIGH TENTION LEADS
    BRACKET, RETAINER - HIGH TENTION LEADS
  • 4
    25-38930 GROMMET, HIGH TENSION LEADS (RETAINER BRACKET)
    GROMMET, HIGH TENSION LEADS (RETAINER BRACKET)
  • 5
    10-98261 SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/8-16 X 3/4")
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (3/8-16 X 3/4")
  • 6
    13-35048 LOCKWASHER, RETAINER BRACKET SCREW
    LOCKWASHER, RETAINER BRACKET SCREW
  • 5
    10-92913 SCREW, RETAINER BRACKET TO CYLINDER HEAD (7/16-14 X 3/4")
    SCREW, RETAINER BRACKET TO CYLINDER HEAD (7/16-14 X 3/4")
  • 6
    13-32993 LOCKWASHER, RETAINER BRACKET SCREW
    LOCKWASHER, RETAINER BRACKET SCREW
  • 7
    25-57009001 GROMMET, ELECTRIC PANEL - TRIGGER LEADS
    GROMMET, ELECTRIC PANEL - TRIGGER LEADS
  • 8
    25661T1 STARTER SOLENOID
    STARTER SOLENOID
  • 9
    13-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
    LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
  • 10
    11-22053 NUT, STARTER SOLENOID TERMINAL (5/16-24)
    NUT, STARTER SOLENOID TERMINAL (5/16-24)
  • 11
    13-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
    LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
  • 12
    11-68219 NUT, STARTER SOLENOID TERMINAL (10-32)
    NUT, STARTER SOLENOID TERMINAL (10-32)
  • 13
    10-96138 SCREW, STARTER SOLENOID TO ELECTRIC PANEL (1/2")
    SCREW, STARTER SOLENOID TO ELECTRIC PANEL (1/2")
  • 14
    13-26992 LOCKWASHER, STARTER SOLENOID SCREW
    LOCKWASHER, STARTER SOLENOID SCREW
  • 15
    10-37612 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1-1/4)
    SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (1-1/4)
  • 16
    10-35787 SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (2 1/4")
    SCREW, ELECTRIC PANEL TO CYLINDER BLOCK (2 1/4")
  • 17
    10-47954 SCREW, ELECTRIC PANEL TO FLYWHEEL HOUSING (1 5/8")
    SCREW, ELECTRIC PANEL TO FLYWHEEL HOUSING (1 5/8")
  • 18
    13-35048 LOCKWASHER, ELECTRIC PANEL SCREW
    LOCKWASHER, ELECTRIC PANEL SCREW
  • 19
    12-20553 WASHER, ELECTRIC PANEL SCREW
    WASHER, ELECTRIC PANEL SCREW
  • 20
    25-47624 GROMMET, ELECTRIC PANEL
    GROMMET, ELECTRIC PANEL
  • 21
    332-2986A27 SWITCH BOX ASSEMBLY
    SWITCH BOX ASSEMBLY
  • 22
    12-45075 WASHER, SWITCH BOX TERMINAL
    WASHER, SWITCH BOX TERMINAL
  • 23
    13-26996 LOCKWASHER, SWITCH BOX TERMINAL
    LOCKWASHER, SWITCH BOX TERMINAL
  • 24
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 25
    10-26184 SCREW, SWITCH BOX TO ELECTRIC PANEL (9/16")
    SCREW, SWITCH BOX TO ELECTRIC PANEL (9/16")
  • 26
    13-21547 LOCKWASHER, SWITCH BOX SCREW
    LOCKWASHER, SWITCH BOX SCREW
  • 27
    10-45218 SCREW, GROUND WIRE TO SWITCH BOX (3/8")
    SCREW, GROUND WIRE TO SWITCH BOX (3/8")
  • 28
    332-4895A8 IGNITION COIL ASSEMBLY
    IGNITION COIL ASSEMBLY
  • 29
    10-45102 SCREW, IGNITION COIL CLAMPING (2 3/8")
    SCREW, IGNITION COIL CLAMPING (2 3/8")
  • 29
    10-45103 SCREW, IGNITION COIL CLAMPING (2")
    SCREW, IGNITION COIL CLAMPING (2")
  • 30
    12-56681 WASHER, IGNITION COIL SCREW
    WASHER, IGNITION COIL SCREW
  • 31
    54-22740 CLIP, IGNITION COIL LEAD
    CLIP, IGNITION COIL LEAD
  • 32
    8M0084613 "D" WASHER, IGNITION COIL SCREW
    "D" WASHER, IGNITION COIL SCREW
  • 33
    11-68219 NUT, IGNITION COIL SCREW
    NUT, IGNITION COIL SCREW
  • 34
    10-26889 SCREW, IGNITION COIL TO ELECTRIC PANEL (2 1/4")
    SCREW, IGNITION COIL TO ELECTRIC PANEL (2 1/4")
  • 35
    13-26992 LOCKWASHER, IGNITION COIL SCREW
    LOCKWASHER, IGNITION COIL SCREW
  • 36
    37-56428 DECAl, WIRING
    DECAl, WIRING
  • 37
    38371 SEAL, COVER TO ELECTRIC PANEL
    SEAL, COVER TO ELECTRIC PANEL
  • 38
    47550 COVER, ELECTRIC PANEL
    COVER, ELECTRIC PANEL
  • 39
    10-47674 SCREW, COER TO ELECTRIC PANEL (2 3/4")
    SCREW, COER TO ELECTRIC PANEL (2 3/4")
  • 40
    56387 WIRING HARNESS, INTERNAL
    WIRING HARNESS, INTERNAL
  • 41
    48459 PLATE, BACKUP - WIRING HARNESS
    PLATE, BACKUP - WIRING HARNESS
  • 42
    10-46718 SCREW, BACKUP PLATE FASTENING (3/4")
    SCREW, BACKUP PLATE FASTENING (3/4")
  • 43
    54-815504220 CLAMP, WIRING HARNESS PLUG
    CLAMP, WIRING HARNESS PLUG
  • 44
    61990 STA-STRAP, WIRING HARNESS LEADS
    STA-STRAP, WIRING HARNESS LEADS
  • 45
    39974 CLAMP, WIRING HARNESS LEAD CLAMP
    CLAMP, WIRING HARNESS LEAD CLAMP
  • 46
    10-47618 SCREW,WIRING HARNESS LEAD CLAMP
    SCREW,WIRING HARNESS LEAD CLAMP
