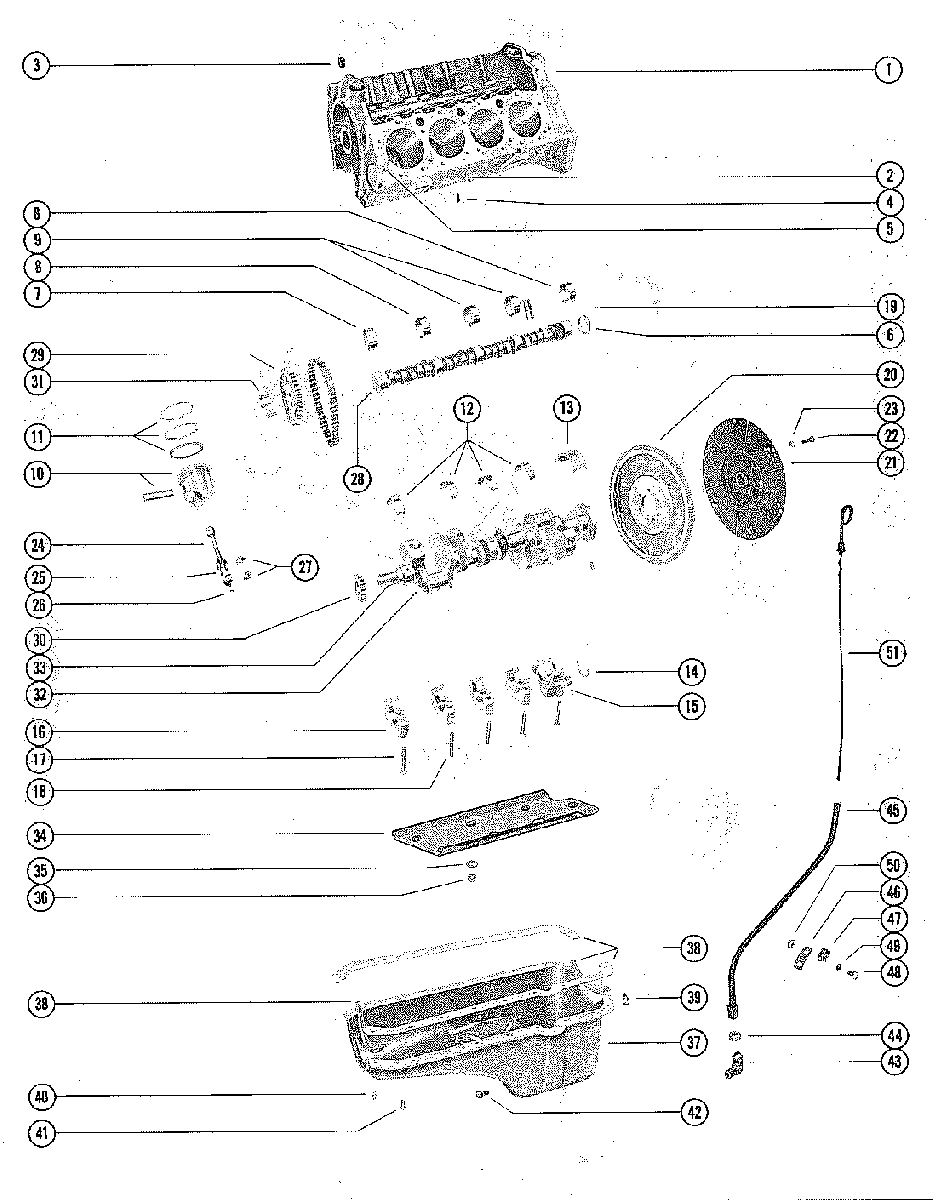

CYLINDER BLOCK, PISTONS AND CRANKSHAFT для Mercruiser - 390 MIE GM 482 V-8 1969-1970 2781129 THRU 2825059

  • №
    Артикул
    Название
  • 1
    842-4268 CYLINDER BLOCK ASSEMBLY
    CYLINDER BLOCK ASSEMBLY
  • -
    22-428611 PLUG, PIPE - CYLINDER BLOCK (3/4")
    PLUG, PIPE - CYLINDER BLOCK (3/4")
  • -
    22-69300 PLUG, EXPANSION - CYLINDER BLOCK (1 3/4")
    PLUG, EXPANSION - CYLINDER BLOCK (1 3/4")
  • -
    22-32561 PLUG, PIPE - CYLINDER BLOCK (1/4")
    PLUG, PIPE - CYLINDER BLOCK (1/4")
  • -
    22-12524 PLUG, PIPE - CYLINDER BLOCK (3/8")
    PLUG, PIPE - CYLINDER BLOCK (3/8")
  • 2
    22-36382 PLUG, WATER DRAIN - CYLINDER BLOCK
    PLUG, WATER DRAIN - CYLINDER BLOCK
  • 3
    22-48341 PLUG, PIPE - OIL PRESSURE GAUGE HOLE
    PLUG, PIPE - OIL PRESSURE GAUGE HOLE
  • 4
    17-24813 PIN, DOWEL - OIL PUMP LOCATING
    PIN, DOWEL - OIL PUMP LOCATING
  • 5
    17-52190 PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
    PIN, DOWEL - CYLINDER BLOCK TO CYLINDER HEAD
  • 6
    19-94140 PLUG, EXPANSION - CAMSHAFT BEARING HOLE
    PLUG, EXPANSION - CAMSHAFT BEARING HOLE
  • 7
    23-49150 BEARING UNIT, CAMSHAFT (FRONT)
    BEARING UNIT, CAMSHAFT (FRONT)
  • 8
    23-85684 BEARING UNIT, CAMSHAFT (FRONT INTERMIDIATE AND REAR)
    BEARING UNIT, CAMSHAFT (FRONT INTERMIDIATE AND REAR)
  • 9
    23-49152 BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMIDIATE)
    BEARING UNIT, CAMSHAFT (CENTER AND REAR INTERMIDIATE)
  • 10
    737-4271 PISTON AND PISTON PIN ASSEMBLY (.001 O.S.) -USE STANDARD RI
    PISTON AND PISTON PIN ASSEMBLY (.001 O.S.) -USE STANDARD RI
  • 10
    737-4272 PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.020 O.S.)
  • 10
    737-4273 PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
    PISTON AND PISTON PIN ASSEMBLY (.030 O.S.)
  • 11
    39-67127 RING, PISTON - 8 SETS (STANDARD)
    RING, PISTON - 8 SETS (STANDARD)
  • 11
    39-58054 RING, PISTON - 8 SETS (.020 O.S.)
    RING, PISTON - 8 SETS (.020 O.S.)
  • 11
    39-67128 RING, PISTON - 8 SETS (.030 O.S.)
    RING, PISTON - 8 SETS (.030 O.S.)
  • 12
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN (STANDARD)
  • 12
    23-818474 BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.001 U.S.)
  • 12
    23-49160 BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.002 U.S.)
  • 12
    23-85724 BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN (.020 U.S.)
  • 13
    23-818473001 BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (STANDARD)
  • 13
    23-818474 BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.001 U.S.)
  • 13
    23-818475 BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.002 U.S.)
  • 13
    23-818476001 BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.010 U.S.)
  • 13
    23-818477 BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
    BEARING UNIT, CRANKSHAFT MAIN - REAR (.020 U.S.)
  • 14
    26-8M0062773 OIL SEAL, REAR CRANKSHAFT BEARING CAP
    OIL SEAL, REAR CRANKSHAFT BEARING CAP
  • 15
    49142 CAP, REAR - CRANKSHAFT BEARING
    CAP, REAR - CRANKSHAFT BEARING
  • 16
    49143 CAP, INTERMIDIATE AND FRONT - CRANKSHAFT BEARING
    CAP, INTERMIDIATE AND FRONT - CRANKSHAFT BEARING
  • 17
    10-49145 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (2 5/8")
  • 17
    10-49147 BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
    BOLT, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK (3 3/8")
  • 18
    16-49144 STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
    STUD, CRANKSHAFT BEARING CAP TO CYLINDER BLOCK
  • 19
    72638 LIFTER, HYDRAULIC VALVE - TAPPET
    LIFTER, HYDRAULIC VALVE - TAPPET
  • 20
    230-4267 FLYWHEEL ASSEMBLY
    FLYWHEEL ASSEMBLY
  • 21
    860125T DRIVE PLATE, FLYWHEEL
    DRIVE PLATE, FLYWHEEL
  • 22
    10-35091 SCREW, DRIVE PLATE TO FLYWHEEL
    SCREW, DRIVE PLATE TO FLYWHEEL
  • 23
    13-35048 LOCKWASHER, DRIVE PLATE SCREW
    LOCKWASHER, DRIVE PLATE SCREW
  • 24
    614-4274 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 25
    10-58055 BOLT, CONNECTING ROD CAP
    BOLT, CONNECTING ROD CAP
  • 26
    11-58056 NUT, CONNECTING ROD CAP BOLT
    NUT, CONNECTING ROD CAP BOLT
  • 27
    23-85726001 BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
    BEARING SET (8 PAIR), CONNECTING ROD (STANDARD)
  • 27
    23-85727 BEARING UNIT (PAIR), CONNECTING RID (.001 U.S.)
    BEARING UNIT (PAIR), CONNECTING RID (.001 U.S.)
  • 27
    23-49170 BEARING UNIT (PAIR), CONNECTING RID (.002 U.S.)
    BEARING UNIT (PAIR), CONNECTING RID (.002 U.S.)
  • 27
    23-85691 BEARING UNIT (PAIR), CONNECTING RID (.010 U.S.)
    BEARING UNIT (PAIR), CONNECTING RID (.010 U.S.)
  • 27
    23-85729 BEARING UNIT (PAIR), CONNECTING RID (.020 U.S.)
    BEARING UNIT (PAIR), CONNECTING RID (.020 U.S.)
  • 28
    431-3422 CAMSHAFT (STANDARD ROTATION)
    CAMSHAFT (STANDARD ROTATION)
  • 28
    431-3427 CAMSHAFT (OPPOSITE ROTATION)
    CAMSHAFT (OPPOSITE ROTATION)
  • --
    23-49124 BEARING, THRUST - CAMSHAFT
    BEARING, THRUST - CAMSHAFT
  • --
    28-34466 HEY, CAMSHAFT TIMING GEAR
    HEY, CAMSHAFT TIMING GEAR
  • 29
    43-67115 GEAR, CAMSHAFT TIMING
    GEAR, CAMSHAFT TIMING
  • 30
    43-49114 GEAR, CRANKSHAFT TIMING
    GEAR, CRANKSHAFT TIMING
  • 31
    10-8M0040582 BOLT, CAMSHAFT TIMING SPROCKET (7/16")
    BOLT, CAMSHAFT TIMING SPROCKET (7/16")
  • 32
    429-4270 CRANKSHAFT
    CRANKSHAFT
  • 33
    28-34466 KEY, CRANKSHAFT PULLEY AND BALANCER
    KEY, CRANKSHAFT PULLEY AND BALANCER
  • 34
    49198 BAFFLE, OIL PAN (CYLINDER BLOCK)
    BAFFLE, OIL PAN (CYLINDER BLOCK)
  • 35
    12-49112 WASHER, BAFFLE BOLT
    WASHER, BAFFLE BOLT
  • 36
    11-37500 NUT, BAFFLE TO CYLINDER BLOCK STUD
    NUT, BAFFLE TO CYLINDER BLOCK STUD
  • 37
    47552A5 OIL PAN
    OIL PAN
  • 38
    27-52550 GASKET SET, OIL PAN
    GASKET SET, OIL PAN
  • 39
    19-47815 PLUG, RUBBER - OIL PAN
    PLUG, RUBBER - OIL PAN
  • 40
    10-55714 SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18x7/8")
    SCREW, OIL PAN TO CYLINDER BLOCK (5/16-18x7/8")
  • 41
    10-55715 SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20x7/8")
    SCREW, OIL PAN TO CYLINDER BLOCK (1/4-20x7/8")
  • 42
    22-36373 PLUG, PIPE - OIL PAN DRAIN
    PLUG, PIPE - OIL PAN DRAIN
  • 43
    22-47625 ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
    ELBOW, OIL LEVEL GAUGE TUBE TO OIL PAN
  • 44
    11-47626 NUT, OIL LEVEL GAUGE TUBE
    NUT, OIL LEVEL GAUGE TUBE
  • 45
    86890A2 TUBE, OIL LEVEL GAUGE
    TUBE, OIL LEVEL GAUGE
  • 46
    48134 BRACKET, OIL LEVEL GAUGE TUBE CLIP
    BRACKET, OIL LEVEL GAUGE TUBE CLIP
  • 47
    54-475451 CLIP, OIL LEVEL GAUGE TUBE
    CLIP, OIL LEVEL GAUGE TUBE
  • 48
    10-33524 SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8")
    SCREW, OIL LEVEL GAUGE TUBE CLIP TO BRACKET (5/8")
  • 49
    13-39107 LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
    LOCKWASHER, OIL LEVEL GAUGE TUBE CLIP SCREW
  • 50
    11-22053 NUT, OIL LEVEL GAUGE TUBE CLIP SCREW
    NUT, OIL LEVEL GAUGE TUBE CLIP SCREW
  • 51
    48394 GAUGE, OIL LEVER (DIPSTICK)
    GAUGE, OIL LEVER (DIPSTICK)
