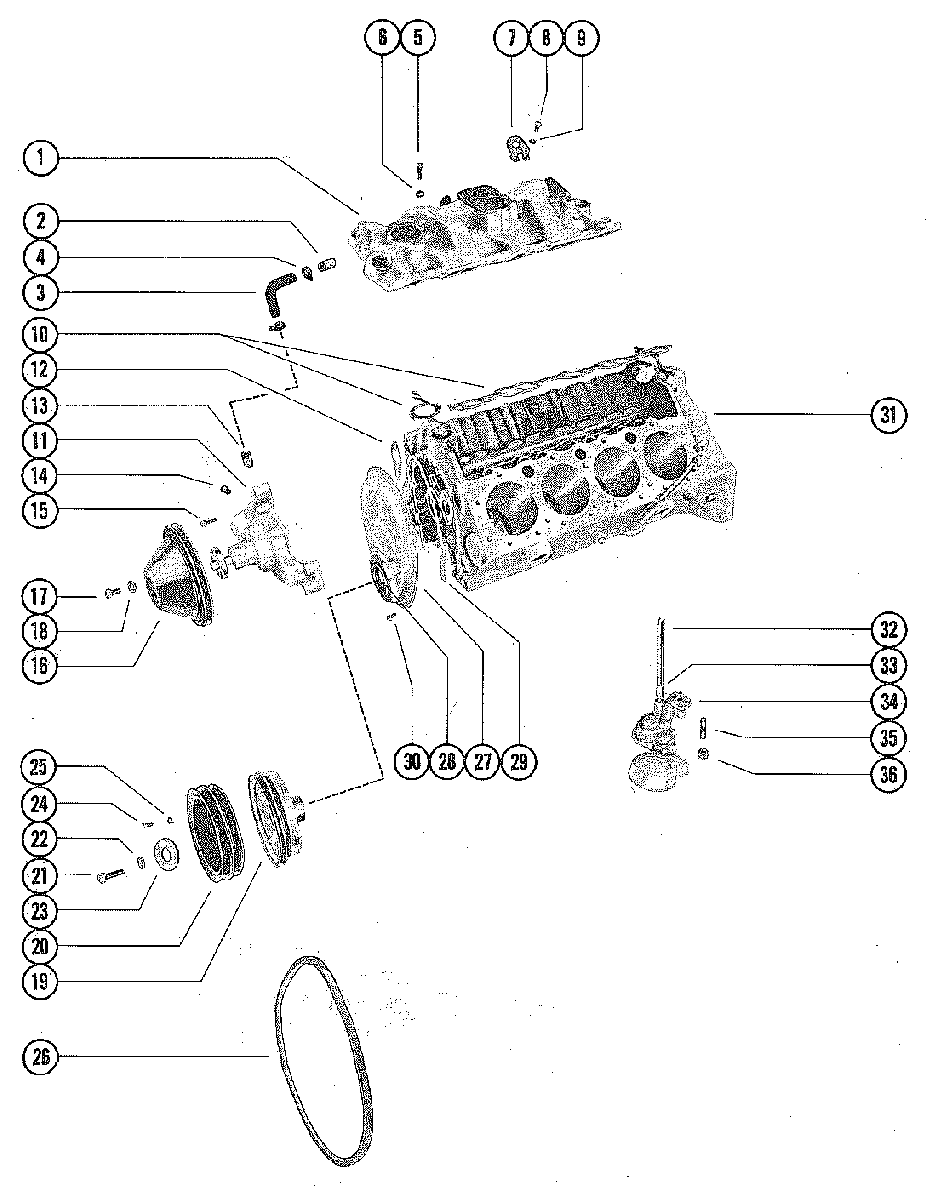

INTAKE MANIFOLD AND OIL PUMP для Mercruiser - 390 MIE GM 482 V-8 1969-1970 2781129 THRU 2825059

  • №
    Артикул
    Название
  • 1
    58057 INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 2
    22-58095 CONNECTOR, INTAKE MANIFOLD - BY-PASS HOSE
    CONNECTOR, INTAKE MANIFOLD - BY-PASS HOSE
  • 3
    32-99520 HOSE, BY-PASS - INTAKE MANIFOLD TO WATER PUMP
    HOSE, BY-PASS - INTAKE MANIFOLD TO WATER PUMP
  • 4
    54-815504220 CLAMP, BY-PASS HOSE ATTACHING
    CLAMP, BY-PASS HOSE ATTACHING
  • 5
    10-37510 BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/4")
    BOLT, INTAKE MANIFOLD TO CYLINDER BLOCK (1 1/4")
  • 6
    12-49112 WASHER, INTAKE MANIFOLD BOLT
    WASHER, INTAKE MANIFOLD BOLT
  • 7
    54-64628 EYE, LIFTING
    EYE, LIFTING
  • 8
    10-34354 SCREW, LIFTING EYE ATTACHING (1 1/2 ")
    SCREW, LIFTING EYE ATTACHING (1 1/2 ")
  • 9
    13-35048 LOCKWASHER, LIFTING EYE SCREW
    LOCKWASHER, LIFTING EYE SCREW
  • 10
    27-69910 GASKET, INTAKE MANIFOLD
    GASKET, INTAKE MANIFOLD
  • 11
    46-8M0113735 WATER PUMP ASSEMBLY
    WATER PUMP ASSEMBLY
  • 12
    27-49110 GASKET, WATER PUMP MOUNTING
    GASKET, WATER PUMP MOUNTING
  • 13
    22-806242 CONNECTOR, WATER PUMP - BY-PASS HOSE
    CONNECTOR, WATER PUMP - BY-PASS HOSE
  • 14
    22-48336 PLUG, PIPE - WATER PUMP
    PLUG, PIPE - WATER PUMP
  • 15
    10-32132 SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
    SCREW, WATER PUMP TO CYLINDER BLOCK (1 3/4")
  • 16
    52349 PULLEY, WATER PUMP
    PULLEY, WATER PUMP
  • 17
    10-47277 SCREW, PULLEY TO WATER PUMP (3/4")
    SCREW, PULLEY TO WATER PUMP (3/4")
  • 18
    13-39107 LOCKWASHER, WATER PUMP PULLEY SCREW
    LOCKWASHER, WATER PUMP PULLEY SCREW
  • 19
    58038 BALANCER, HARMONIC - CRANKSHAFT
    BALANCER, HARMONIC - CRANKSHAFT
  • 20
    52181 PULLEY, HARMONIC BALANCER
    PULLEY, HARMONIC BALANCER
  • 21
    10-14758 BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT
    BOLT, PULLEY AND HARMONIC BALANCER TO CRANKSHAFT
  • 22
    13-14759 LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
    LOCKWASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 23
    12-49103 WASHER, PULLEY AND HARMONIC BALANCER BOLT
    WASHER, PULLEY AND HARMONIC BALANCER BOLT
  • 24
    10-34353 BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (1")
    BOLT, CRANKSHAFT PULLEY TO HARMONIC BALANCER (1")
  • 25
    13-35048 LOCKWASHER, CRANKSHAFT PULLEY BOLT
    LOCKWASHER, CRANKSHAFT PULLEY BOLT
  • 26
    57-48122Q BELT, ALTERNATOR DRIVE (48")
    BELT, ALTERNATOR DRIVE (48")
  • 27
    66215 COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT END (STANDARD ROTATION)
  • 27
    59973A1 COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
    COVER ASSEMBLY, CRANKCASE FRONT END (OPPOSITE ROTATION)
  • 28
    26-8219471 OIL SEAL, CRANKCASE FRONT END COVER
    OIL SEAL, CRANKCASE FRONT END COVER
  • 29
    27-54529 GASKET, CRANKCASE FRONT END COVER
    GASKET, CRANKCASE FRONT END COVER
  • 30
    10-8M0040582 SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
    SCREW, CRANKCASE FRONT END COVER TO CYLINDER BLOCK (7/16")
  • 31
    842-4268 CYLINDER BLOCK ASSEMBLY (SEE G12 FOR BREAKDOWN)
    CYLINDER BLOCK ASSEMBLY (SEE G12 FOR BREAKDOWN)
  • 32
    848511 SHAFT, OIL PUMP TO DISTRIBUTOR
    SHAFT, OIL PUMP TO DISTRIBUTOR
  • 33
    23-52193 RETAINER, OIL PUMP SHAFT
    RETAINER, OIL PUMP SHAFT
  • 34
    808693A1 OIL PUMP AND SCREEN ASSEMBLY
    OIL PUMP AND SCREEN ASSEMBLY
  • 35
    16-845599 STUD, OIL PUMP TO CYLINDER BLOCK
    STUD, OIL PUMP TO CYLINDER BLOCK
  • 36
    11-37500 NUT, OIL PUMP STUD
    NUT, OIL PUMP STUD
  • --
    34543 VALVE, BY-PASS
    VALVE, BY-PASS
