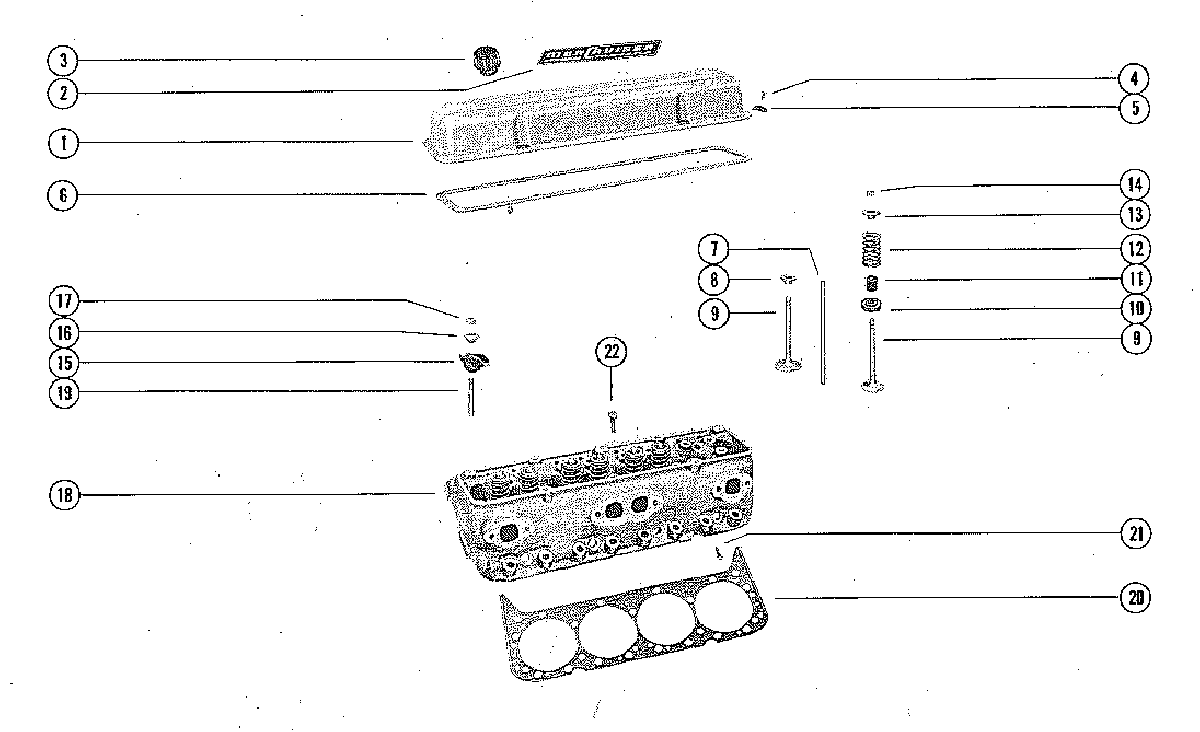

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 390 MIE GM 482 V-8 1969-1970 2781129 THRU 2825059

  • №
    Артикул
    Название
  • 1
    58046 COVER, ROCKER VALVE
    COVER, ROCKER VALVE
  • 2
    37-34443 DECAL, ROCKER VALVE COVER
    DECAL, ROCKER VALVE COVER
  • -
    37-55123 DECAL, ROCKER VALVE COVER (390 H.P.)
    DECAL, ROCKER VALVE COVER (390 H.P.)
  • 3
    52549 CAP, OIL FILLER(NOT AS SHOWN)
    CAP, OIL FILLER(NOT AS SHOWN)
  • 4
    10-58047 SCREW, ROCKER VALVE COVER TO CYLINDER HEAD (1/2")
    SCREW, ROCKER VALVE COVER TO CYLINDER HEAD (1/2")
  • 5
    49174 REINFORCEMENT, ROCKER VALVE COVER SCREW
    REINFORCEMENT, ROCKER VALVE COVER SCREW
  • 6
    27-49121 GASKET, ROCKER VALVE COVER
    GASKET, ROCKER VALVE COVER
  • 7
    58039 ROD, VALVE PUSH (INLET)
    ROD, VALVE PUSH (INLET)
  • 7
    58040 ROD, VALVE PUSH (EXHAUST)
    ROD, VALVE PUSH (EXHAUST)
  • 8
    49132 GUIDE, PUSH ROD
    GUIDE, PUSH ROD
  • 9
    49774 VALVE, EXHAUST (STANDARD)
    VALVE, EXHAUST (STANDARD)
  • 9
    58050 VALVE, EXHAUST (.015O.S.)
    VALVE, EXHAUST (.015O.S.)
  • 9
    986781 VALVE, INLET (STANDARD)
    VALVE, INLET (STANDARD)
  • 9
    58049 VALVE, INLET (015O.S.)
    VALVE, INLET (015O.S.)
  • 10
    10-F12170 SHIM, INLET VALVE SPRING (THIN)
    SHIM, INLET VALVE SPRING (THIN)
  • 11
    26-75988 SEAL, VALVE
    SEAL, VALVE
  • 12
    24-58052 SPRING, VALVE
    SPRING, VALVE
  • 13
    52194 CAP, VALVE SPRING
    CAP, VALVE SPRING
  • 14
    28-54530 KEY, VALVE STEM
    KEY, VALVE STEM
  • 15
    19241 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 16
    58041 BALL UNIT, ROCKER VALVE ARM
    BALL UNIT, ROCKER VALVE ARM
  • 17
    11-49119 NUT, ROCKER VALVE ARM STUD
    NUT, ROCKER VALVE ARM STUD
  • 18
    938-4269 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 19
    16-49133 STUD, ROCKER VALVE ARM
    STUD, ROCKER VALVE ARM
  • 20
    27-8M0049045 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 21
    8M0102366 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (2")
  • 22
    8M0102366 BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4 1/8")
    BOLT, CYLINDER HEAD TO CYLINDER BLOCK (4 1/8")
