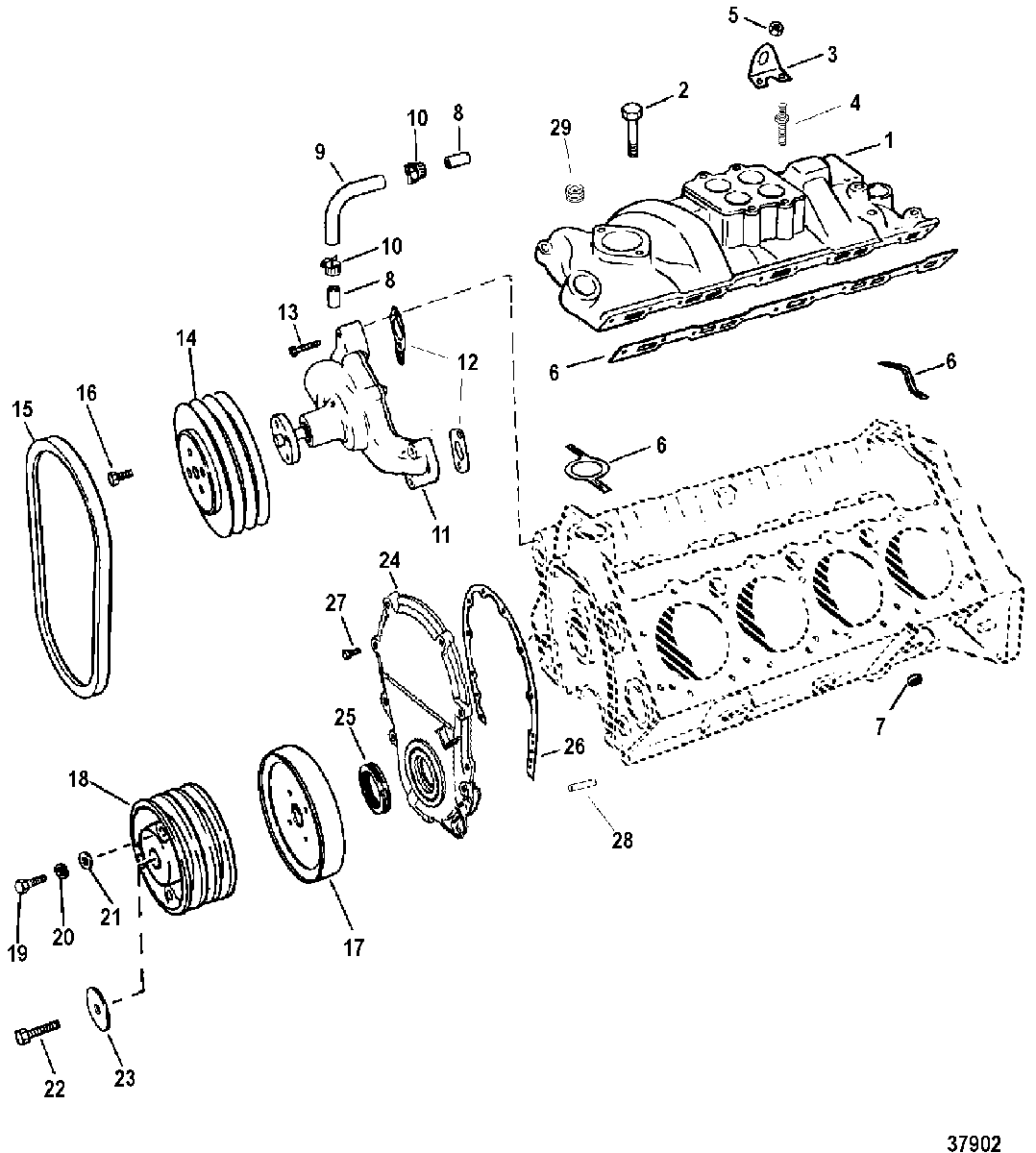

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 7.4L BRAVO (GEN. VI) GM 454 V-8 1996-1997 0F800700 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    811575T MANIFOLD, Intake
    7.4L BRAVO
    MANIFOLD, Intake
    7.4L BRAVO
  • 2
    10-802655 BOLT, (3/8-16 x 1.25) (3/8-16 x 1-1/4 in.)
    7.4L BRAVO
    BOLT, (3/8-16 x 1.25) (3/8-16 x 1-1/4 in.)
    7.4L BRAVO
  • 2
    10-811577 BOLT (3/8-16 x 1-3/8 in.)
    7.4L BRAVO
    BOLT (3/8-16 x 1-3/8 in.)
    7.4L BRAVO
  • 1
    72608T MANIFOLD, Intake
    454 MAGNUM
    MANIFOLD, Intake
    454 MAGNUM
  • 2
    10-37510 BOLT, (1.5 In.)
    454 MAGNUM
    BOLT, (1.5 In.)
    454 MAGNUM
  • 2
    10-805611 SCREW, (.375-16 x 1.750)
    454 MAGNUM
    SCREW, (.375-16 x 1.750)
    454 MAGNUM
  • 3
    54-64628 LIFTING EYE
    LIFTING EYE
  • 4
    16-806250 STUD
    STUD
  • 5
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 6
    27-8M0050225 GASKET SET
    (7.4L BRAVO)
    GASKET SET
    (7.4L BRAVO)
  • 6
    27-8M0073380 GASKET SET
    (454 MAGNUM)
    GASKET SET
    (454 MAGNUM)
  • 7
    807211 VALVE, Relief, Oil By-Pass
    (30 PSI)
    VALVE, Relief, Oil By-Pass
    (30 PSI)
  • 8
    22-806242 CONNECTOR
    CONNECTOR
  • 9
    32-805987 HOSE
    HOSE
  • 10
    54-815504412 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 11
    46-8M0113735 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 12
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 13
    10-805611 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 14
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 15
    57-48122Q BELT, (48 Inches)
    BELT, (48 Inches)
  • 16
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 17
    8M0082186 BALANCER, Harmonic
    (7.4L BRAVO)
    BALANCER, Harmonic
    (7.4L BRAVO)
  • 17
    845625T2 BALANCER, Harmonic
    (454 MAGNUM)
    BALANCER, Harmonic
    (454 MAGNUM)
  • 18
    90081T PULLEY
    PULLEY
  • 19
    10-75334 SCREW, (.375-24 x 3.00)
    (7.4L BRAVO)
    SCREW, (.375-24 x 3.00)
    (7.4L BRAVO)
  • 19
    10-358701 SCREW, (.375-16 x 2.00)
    (454 MAGNUM)
    SCREW, (.375-16 x 2.00)
    (454 MAGNUM)
  • 20
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 21
    12-34714 WASHER
    WASHER
  • 22
    10-845627 SCREW, (.500-20 x 2.500)
    SCREW, (.500-20 x 2.500)
  • 23
    12-49103 WASHER
    WASHER
  • 24
    845610T COVER ASSEMBLY, Timing Chain
    COVER ASSEMBLY, Timing Chain
  • 25
    26-8219471 SEAL, Oil
    SEAL, Oil
  • 26
    27-850456 GASKET, Front Cover Mount, Timing Cover
    GASKET, Front Cover Mount, Timing Cover
  • 27
    10-850455 SCREW, (1/4-20 x 0.5) (1/4-20 x 1/2 in.)
    SCREW, (1/4-20 x 0.5) (1/4-20 x 1/2 in.)
  • 28
    17-843378 PIN, Dowel (1/4 In. Diameter)
    PIN, Dowel (1/4 In. Diameter)
  • 29
    22-12524 PLUG, (.375), Intake
    PLUG, (.375), Intake
  • -
    27-850470A96 GASKET SET, Overhaul
    (7.4L BRAVO)
    GASKET SET, Overhaul
    (7.4L BRAVO)
  • -
    27-850465A96 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
