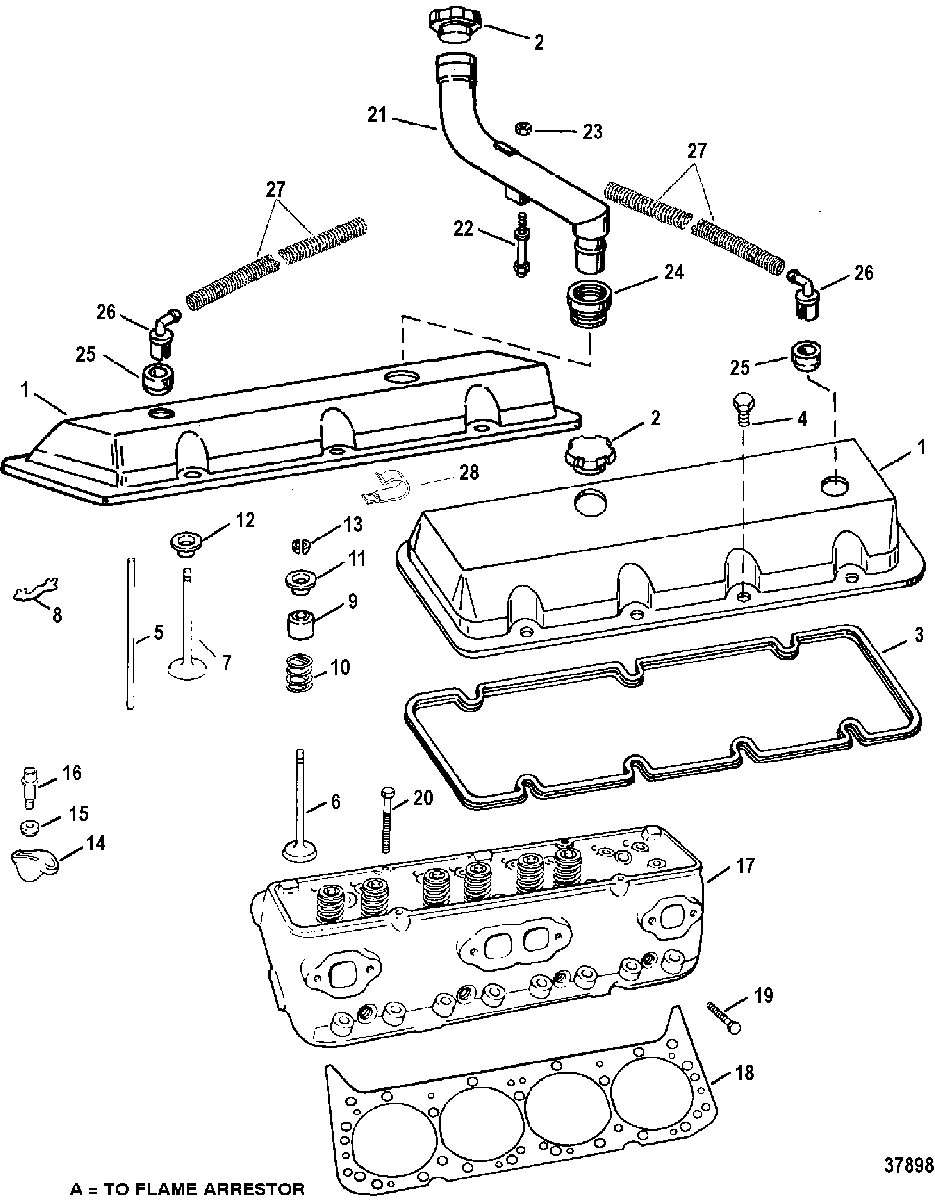

CYLINDER HEAD AND ROCKER COVER(7.4L BRAVO) для Mercruiser - 7.4L BRAVO (GEN. VI) GM 454 V-8 1996-1997 0F800700 THRU 0K999999

№

Артикул

Название
1

850462 COVER, Rocker

COVER, Rocker
2

36-811569 CAP, Oil Tank

CAP, Oil Tank
3

27-8M0092920 GASKET, Rocker Cover

GASKET, Rocker Cover
4

10-811589 BOLT, (1/4-20 x 0.875) (1/4-20 x 7/8 in.)

BOLT, (1/4-20 x 0.875) (1/4-20 x 7/8 in.)
5

850468 PUSH ROD
(INTAKE)

PUSH ROD
(INTAKE)
5

850469 PUSH ROD
(EXHAUST)

PUSH ROD
(EXHAUST)
6

814506 VALVE, Exhaust
(STANDARD)

VALVE, Exhaust
(STANDARD)
6

814507001 VALVE, Exhaust
(.015 O.S.)

VALVE, Exhaust
(.015 O.S.)
7

49134 VALVE, Intake
(STANDARD)

VALVE, Intake
(STANDARD)
8

811585 GUIDE, Push Rod

GUIDE, Push Rod
9

26-811545 SEAL, Valve

SEAL, Valve
10

24-850465T SPRING, Valve

SPRING, Valve
11

850463 ROTATOR
(EXHAUST)

ROTATOR
(EXHAUST)
12

850464 CAP
(INTAKE)

CAP
(INTAKE)
13

28-54530 KEY

KEY
14

850471 ARM, Rocker

ARM, Rocker
15

850472 BALL, Rocker Arm

BALL, Rocker Arm
16

10-811593 BOLT, Rocker Arm

BOLT, Rocker Arm
17

938-883492R1 CYLINDER HEAD, Cylinder

CYLINDER HEAD, Cylinder
18

27-879150141 GASKET, Cylinder Head

GASKET, Cylinder Head
19

8M0102366 BOLT, (2.00 Inch)

BOLT, (2.00 Inch)
20

8M0102366 BOLT, (4.125 Inch)

BOLT, (4.125 Inch)
21

36-807131T TUBE, Oil Fill

TUBE, Oil Fill
22

16-805706 STUD

STUD
23

11-826709109 NUT, (.250-28)

NUT, (.250-28)
24

26-805622 GROMMET

GROMMET
25

25-811553 GROMMET

GROMMET
26

97850T ELBOW, 90 Degree, Breather

ELBOW, 90 Degree, Breather
27

32-8M0086022 HOSE, Breather

HOSE, Breather
28

54-642351 J CLIP

J CLIP
-

27-850470A96 GASKET SET, Overhaul
(7.4L BRAVO)

GASKET SET, Overhaul
(7.4L BRAVO)
