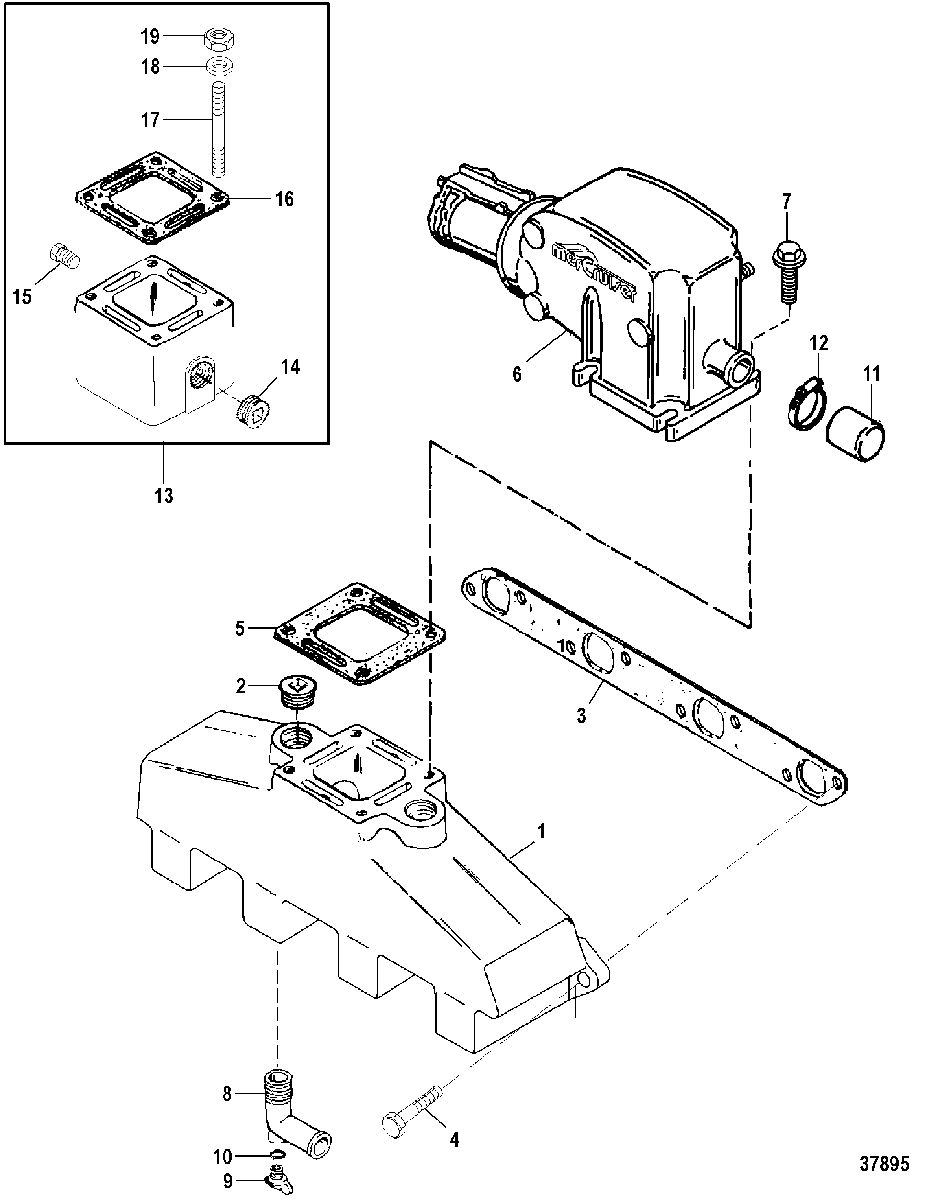

EXHAUST MANIFOLD AND EXHAUST ELBOW(454 MAGNUM) для Mercruiser - 7.4L BRAVO (GEN. VI) GM 454 V-8 1996-1997 0F800700 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    807078T10 MANIFOLD ASSEMBLY, Exhaust
    MANIFOLD ASSEMBLY, Exhaust
  • 2
    22-416223 PLUG, (3/4-14), Pipe
    PLUG, (3/4-14), Pipe
  • 3
    27-46820 GASKET
    GASKET
  • 4
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 5
    27-863724 GASKET
    GASKET
  • 6
    816900A5 ELBOW ASSEMBLY, Exhaust
    (PORT)
    ELBOW ASSEMBLY, Exhaust
    (PORT)
  • 6
    816900A9 ELBOW ASSEMBLY, Exhaust
    (STARBOARD)
    ELBOW ASSEMBLY, Exhaust
    (STARBOARD)
  • 7
    10-865982005 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 7
    10-98534 SCREW, (.375-16 x 2.30)
    SCREW, (.375-16 x 2.30)
  • 8
    22-862210A01 ELBOW KIT, Drain
    ELBOW KIT, Drain
  • 9
    22-8M0119211 PLUG KIT, (.500-13) Royal Blue, Drain
    PLUG KIT, (.500-13) Royal Blue, Drain
  • 10
    25-32509 QUAD RING
    QUAD RING
  • 11
    19-805727001 CAP, Rubber
    CAP, Rubber
  • 12
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 13
    93320A14 RISER KIT, Exhaust (3.00 Inch)
    RISER KIT, Exhaust (3.00 Inch)
  • 13
    807477A5 RISER KIT, Exhaust (6.00 Inch)
    RISER KIT, Exhaust (6.00 Inch)
  • 14
    22-416223 PLUG, (3/4-14), Pipe
    PLUG, (3/4-14), Pipe
  • 15
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 16
    27-863726 GASKET
    GASKET
  • 17
    16-97520 STUD, (.375 x 5.0)
    USE WITH 3 IN. RISER
    STUD, (.375 x 5.0)
    USE WITH 3 IN. RISER
  • 17
    16-34713 STUD, (.375 x 6.5)
    USE WITH 3 IN. RISER
    STUD, (.375 x 6.5)
    USE WITH 3 IN. RISER
  • 17
    16-821738 STUD, (3/8 x 8 In.)
    USE WITH 6 IN. RISER
    STUD, (3/8 x 8 In.)
    USE WITH 6 IN. RISER
  • 17
    16-8M0022137 STUD, (.375 x 9.56)
    USE WITH 6 IN. RISER
    STUD, (.375 x 9.56)
    USE WITH 6 IN. RISER
  • 18
    12-46132 WASHER
    WASHER
  • 19
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • -
    27-850465A96 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
