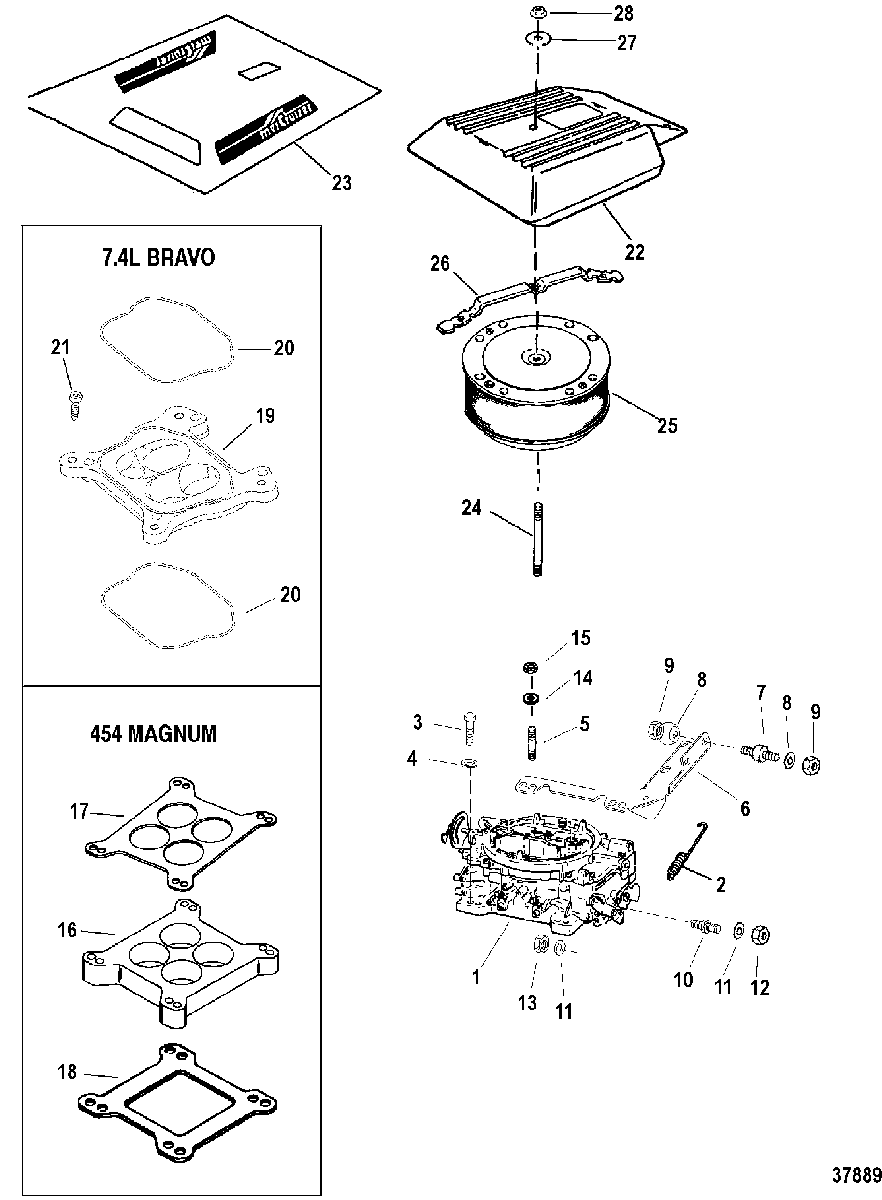

CARBURETOR AND FLAME ARRESTOR для Mercruiser - 7.4L BRAVO (GEN. VI) GM 454 V-8 1996-1997 0F800700 THRU 0K999999

  • №
    Артикул
    Название
  • 1
    3310-8M0047212 CARBURETOR
    (7.4L BRAVO) (SEE "CARBURETOR (WEBER)" FOR BREAKDOWN)
    CARBURETOR
    (7.4L BRAVO) (SEE "CARBURETOR (WEBER)" FOR BREAKDOWN)
  • 1
    3310-806755A2 CARBURETOR
    (454 MAGNUM)
    CARBURETOR
    (454 MAGNUM)
  • 2
    24-897454 SPRING, Throttle Return
    SPRING, Throttle Return
  • 3
    10-35386 SCREW, (.312-18 x 1.00)
    SCREW, (.312-18 x 1.00)
  • 4
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 5
    16-70237 STUD, (.312-18/.312-24 x 2.620)
    STUD, (.312-18/.312-24 x 2.620)
  • 6
    805359T BRACKET
    BRACKET
  • 7
    16-818192 STUD, Anchor
    STUD, Anchor
  • 8
    12-24664 WASHER, (M4 x 20)
    WASHER, (M4 x 20)
  • 9
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 10
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 11
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 12
    11-8267089 NUT, (.250-28)
    NUT, (.250-28)
  • 13
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • 14
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 15
    11-29250 NUT, (.312-24)
    NUT, (.312-24)
  • 16
    889338A1 SPACER
    454 MAGNUM
    SPACER
    454 MAGNUM
  • 17
    27-41609 GASKET
    454 MAGNUM
    GASKET
    454 MAGNUM
  • 18
    27-41610 GASKET
    454 MAGNUM
    GASKET
    454 MAGNUM
  • 19
    806177A3 SPACER
    7.4L BRAVO
    SPACER
    7.4L BRAVO
  • 20
    25-806237 QUAD RING
    7.4L BRAVO
    QUAD RING
    7.4L BRAVO
  • 21
    10-54523 SCREW, (.312-18 x 1.00)
    7.4L BRAVO
    SCREW, (.312-18 x 1.00)
    7.4L BRAVO
  • 22
    18484A3 COVER
    COVER
  • 23
    37-812776A43 DECAL SET
    (7.4L BRAVO)
    DECAL SET
    (7.4L BRAVO)
  • 23
    37-812776A44 DECAL SET
    (454 MAGNUM)
    DECAL SET
    (454 MAGNUM)
  • 24
    16-805296 STUD, (4.50 Inch)
    (7.4L BRAVO)
    STUD, (4.50 Inch)
    (7.4L BRAVO)
  • 25
    805298A1 FLAME ARRESTOR
    (7.4L BRAVO)
    FLAME ARRESTOR
    (7.4L BRAVO)
  • 26
    805314 RETAINER, Breather Hose
    (7.4L BRAVO)
    RETAINER, Breather Hose
    (7.4L BRAVO)
  • 24
    16-805297 STUD
    (454 MAGNUM)
    STUD
    (454 MAGNUM)
  • 25
    805299A1 FLAME ARRESTOR
    (454 MAGNUM)
    FLAME ARRESTOR
    (454 MAGNUM)
  • 26
    805314 RETAINER, Breather Hose
    (454 MAGNUM)
    RETAINER, Breather Hose
    (454 MAGNUM)
  • 27
    12-86400 WASHER
    WASHER
  • 28
    11-826709109 NUT, (.250-28)
    NUT, (.250-28)
  • -
    27-850470A96 GASKET SET, Overhaul
    7.4L BRAVO
    GASKET SET, Overhaul
    7.4L BRAVO
  • -
    27-850465A96 GASKET SET, Overhaul
    454 MAGNUM
    GASKET SET, Overhaul
    454 MAGNUM
